4
Customising Settings for Your Home
The hot water and legionella prevention menus control the operation of domestic
hot water tank heat ups. They are not available if your system uses the hydrobox
with no cylinder.
When DHW screen is displayed pressing button F1 changes between Normal
and Eco DHW modes. Pressing button F3 activates/deactivates Legionella Pre-
vention mode.
Menu subtitle Function
DHW max. temp Desired temperature of stored hot water
DHW max. temperature Difference in temperature between DHW max. temp and the temperature at which DHW
drop mode starts
DHW max. operation time Max time allowed for stored water heating DHW mode
DHW mode restriction The time period after DHW mode when space heating has priority over DHW mode tem-
porarily preventing further stored water heating
(Only when DHW max. operation time has passed.)
If you wish to make changes contact installer.

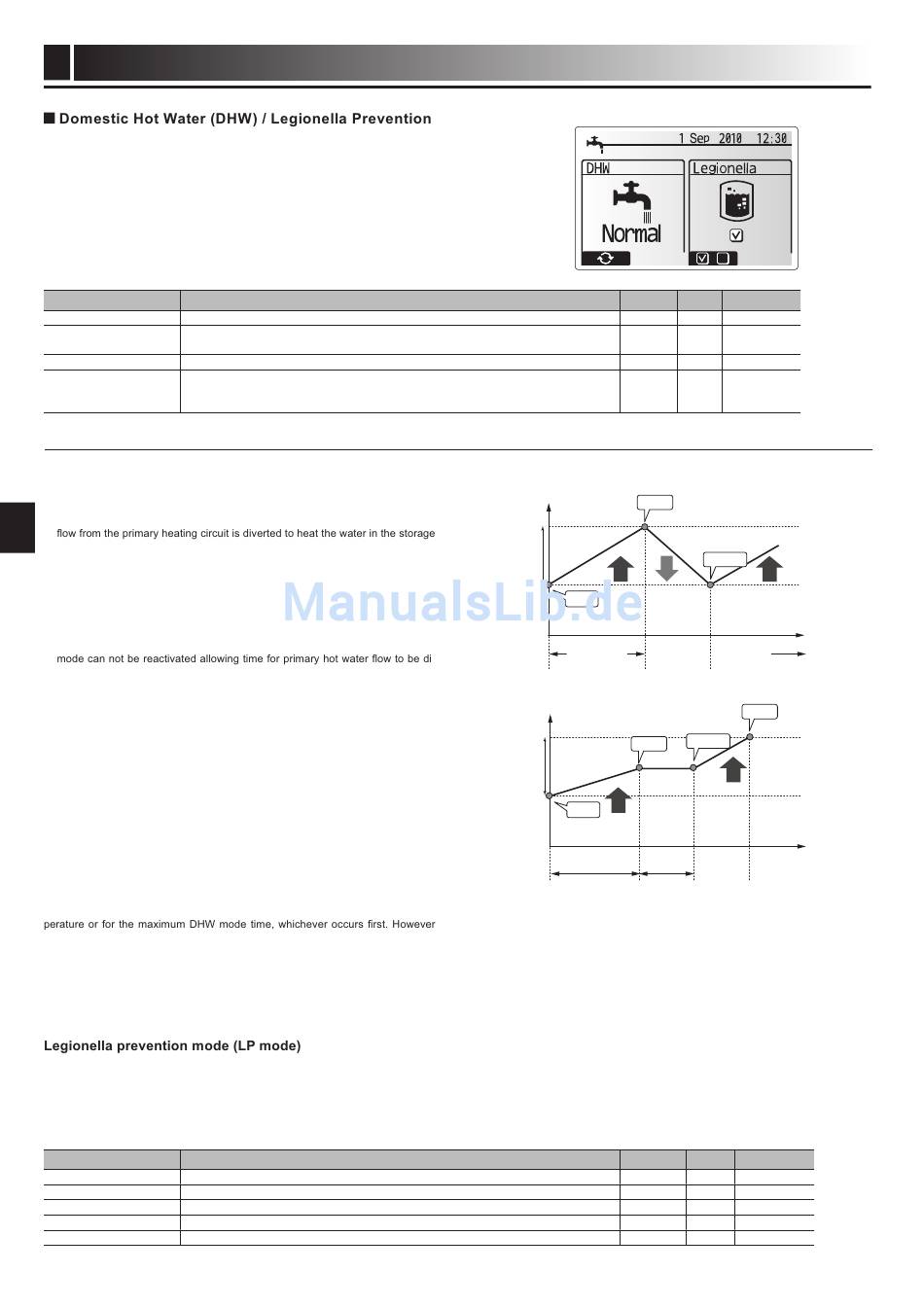

<Explanation of DHW operation>
• When the tank temperature drops from "DHW max. temp" by more than the
"DHW max. temperature drop" (set by installer), DHW mode operates and the
tank.
• When the temperature of the stored water reaches the 'DHW max. temp' set
by the installer or if the 'Max operation time' set by the installer is exceeded
DHW mode ceases to operate.
• Whilst DHW mode is in operation hot water is not directed to the space heating
circuit.
• Directly after DHW mode operation 'DHW mode restriction' will operate. The
duration of this feature is set by the installer and during its operation DHW
rected to the space heating circuit if necessary.
• After the 'DHW mode restriction' operation the DHW mode can operate again
and tank heating will continue if needed.
<Eco mode>
DHW mode can run in either 'Normal' or 'Eco' mode. Normal mode will heat the
DHW tank quickly using the full power of the heat pump. Eco mode takes a little
longer to heat the tank but the energy used is reduced as the heat pump opera-
tion is restricted using signals from the FTC3 based on measured tank tempera-
ture.
Note:
The actual energy saved in Eco mode will vary according to outdoor temperature.
<Forced DHW>
The forced DHW function is used to force the system to operate in DHW mode. In
normal operation the water in the DHW tank will be heated either to the set tem-
should there be a high demand for hot water the 'Forced DHW' function can be
used to prevent the system switching to space heating and continue to provide
DHW tank heating
Forced DHW mode is activated by pressing button F1 when option screen is dis-
played.
During legionella prevention mode the temperature of the stored water is increased
above 60°C to inhibit legionella bacterium growth. It is strongly recommended that
this is done at regular intervals. Please check local regulations for the recommended
frequency of heat up cycles.
Note: If failures occur on the cylinder unit the LP mode may not function normally.
Menu subtitle Function
Hot water temp. Desired temp of stored hot water
Frequency Time between LP mode tank heat ups
Start time Time when LP mode will begin
Max. operation time Maximum time allowed for LP mode tank heat
Duration of max. temp. The time period after LP mode max. water temp has been reached
If you wish to make changes contact installer.
11
Tank temp.
DHW max.
temp.
DHW max.
temp.drop
Start
DHW mode
-
Tank temp.
DHW max.
temp.
DHW max.
temp. drop
Start
DHW max.
operation time
Range Unit Default value
40–60 °C 50
5–30 °C 10
30–120 min 60
30–120 min 30
Stop
Restart
DHW mode
Stop
Restart
Stop
DHW mode
DHW mode
restriction
Range Unit Default value
60–70 °C 65
1–30 day 15
0:00–23:00 - 03:00
1–5 hour 3
1–120 min 30
Time
Time
