INSTALLATION
GB

PANEL INSTALLATION

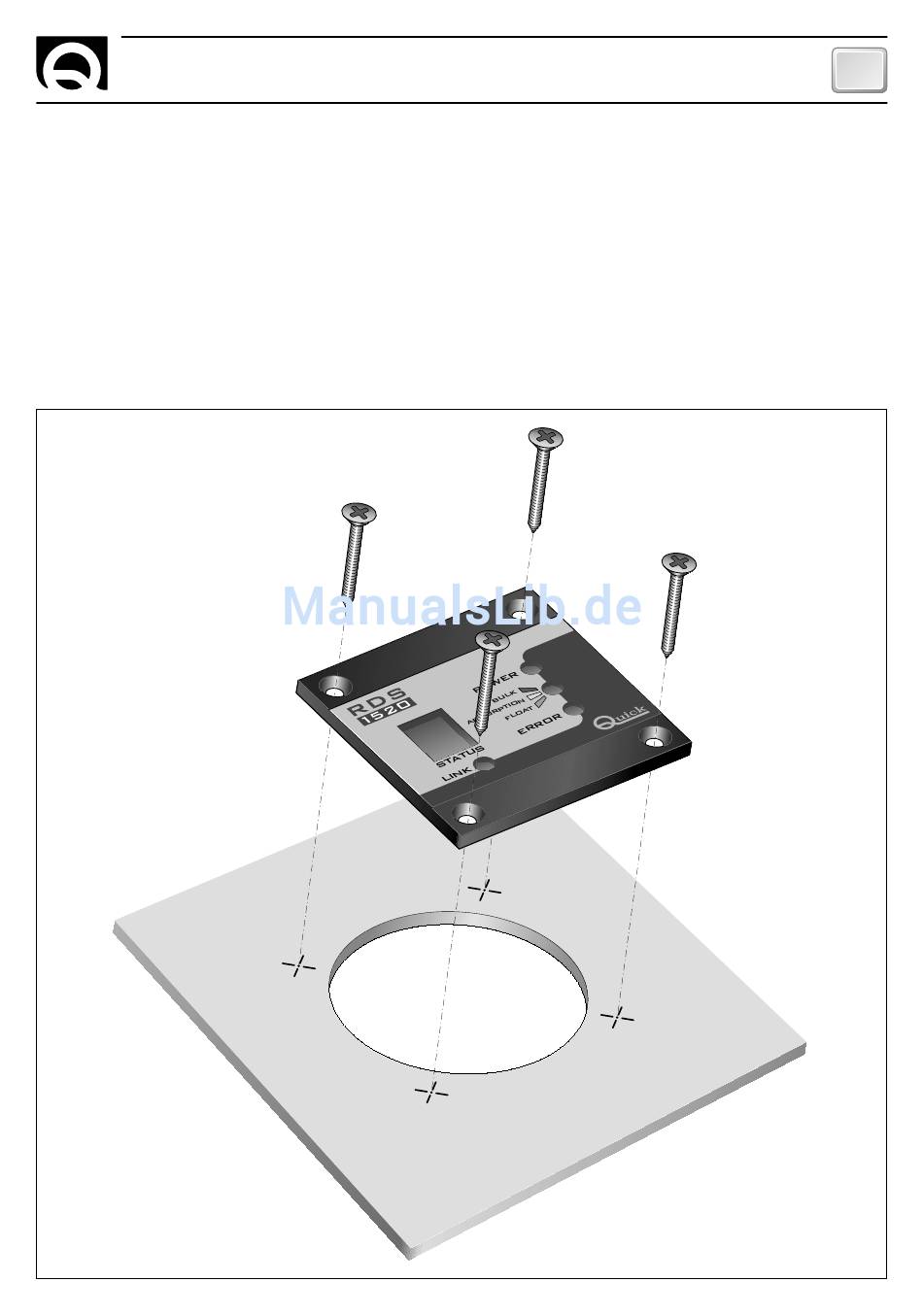

After selecting the area where the instrument is to be installed, perform the steps given below:
• Place the drilling template (supplied) on the surface where the instrument will be installed.
• Mark the center of each hole.
• Drill the hole for the back of the instrument with a 57 mm cutter.
• Remove the template and any burrs present in the hole.
• Put the instrument in place.
• Secure the instrument to the panel with 4 screws (not included in the equipment).
