Release the gear-motor as indicated by the fig.1/2 and open entirely the gate. Put a rack element on the
pinion gear and fasten it to the gate with screw and spacing bars.
Move the gate manually bringing the pinion gear into line with the last spacing bar.
Fasten the rack element for good.
fig.9

RACK ASSEMBLING

fig.8
90mm
For a correct positioning of the other elements and to assure
their straightness, it is necessary to employ a rack
element using it as support and reference (fig.9).

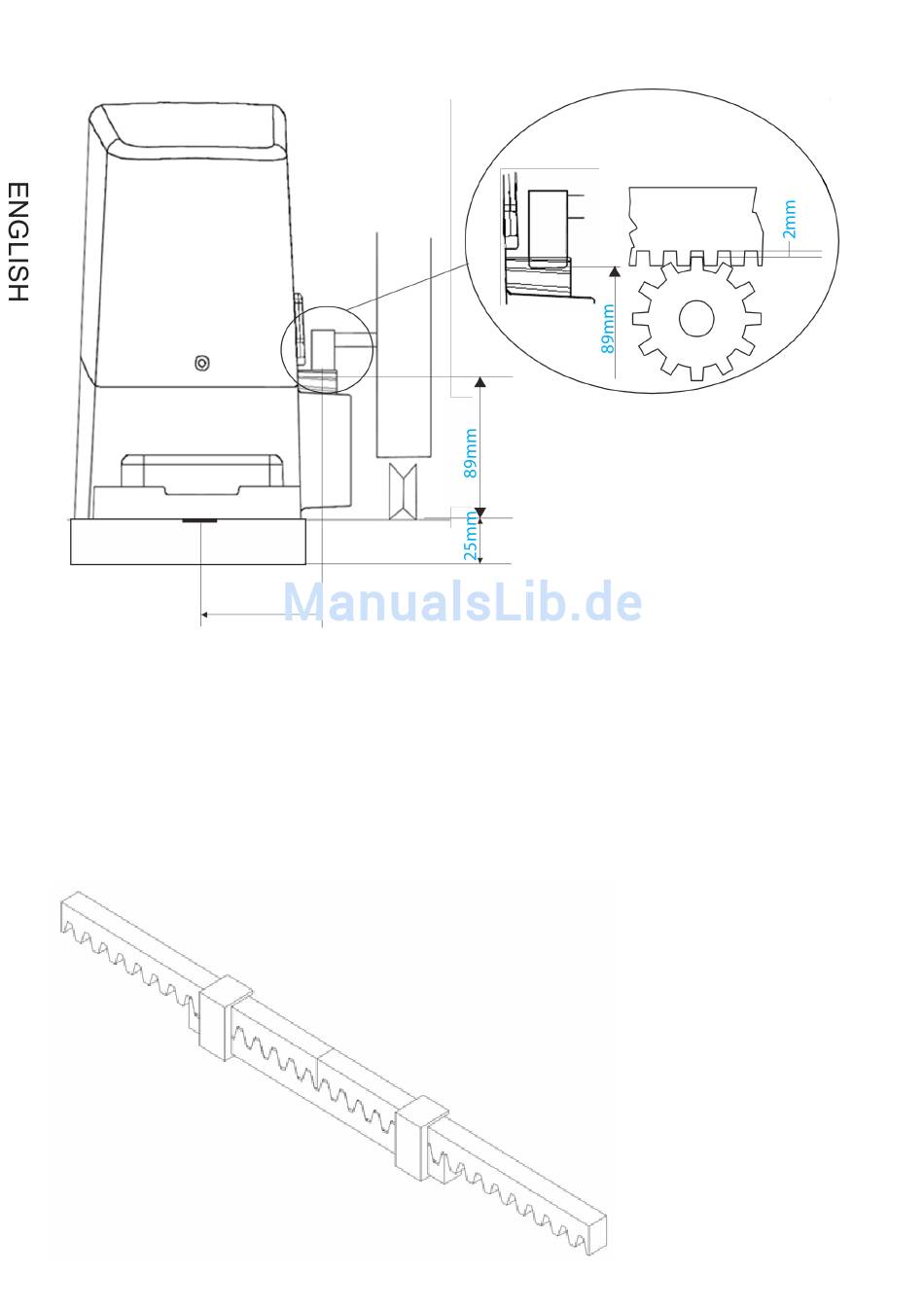

It is besides necessary to assure an aperture of 2 mm between
rack and pinion gear, so that the gate weight doesn't rest on the
gear-motor pinion gear (as shown in the fig.8).
