Before the installation starts, we suggest to carry out following inspections and operations:
1_ The gate framework must be strong and suitable.
2_ The gate must not show too many sideways slide skids during the running.
3_ The system of wheels/lower rail and roller/upper runner must work without too many frictions.
4_ To avoid the gate derailment you must install the stop beats of the sliding, whether at the opening or
closing, and a second upper roller/runner in full observance of the current law.
5_ Remove any manual lock in the beforehand gates.
6_ Take on the gate bottom the feed raceway of the feeding cables (Ø25-50mm) and of external connec-
tion (photocell, flash-light, key selector, etc...).

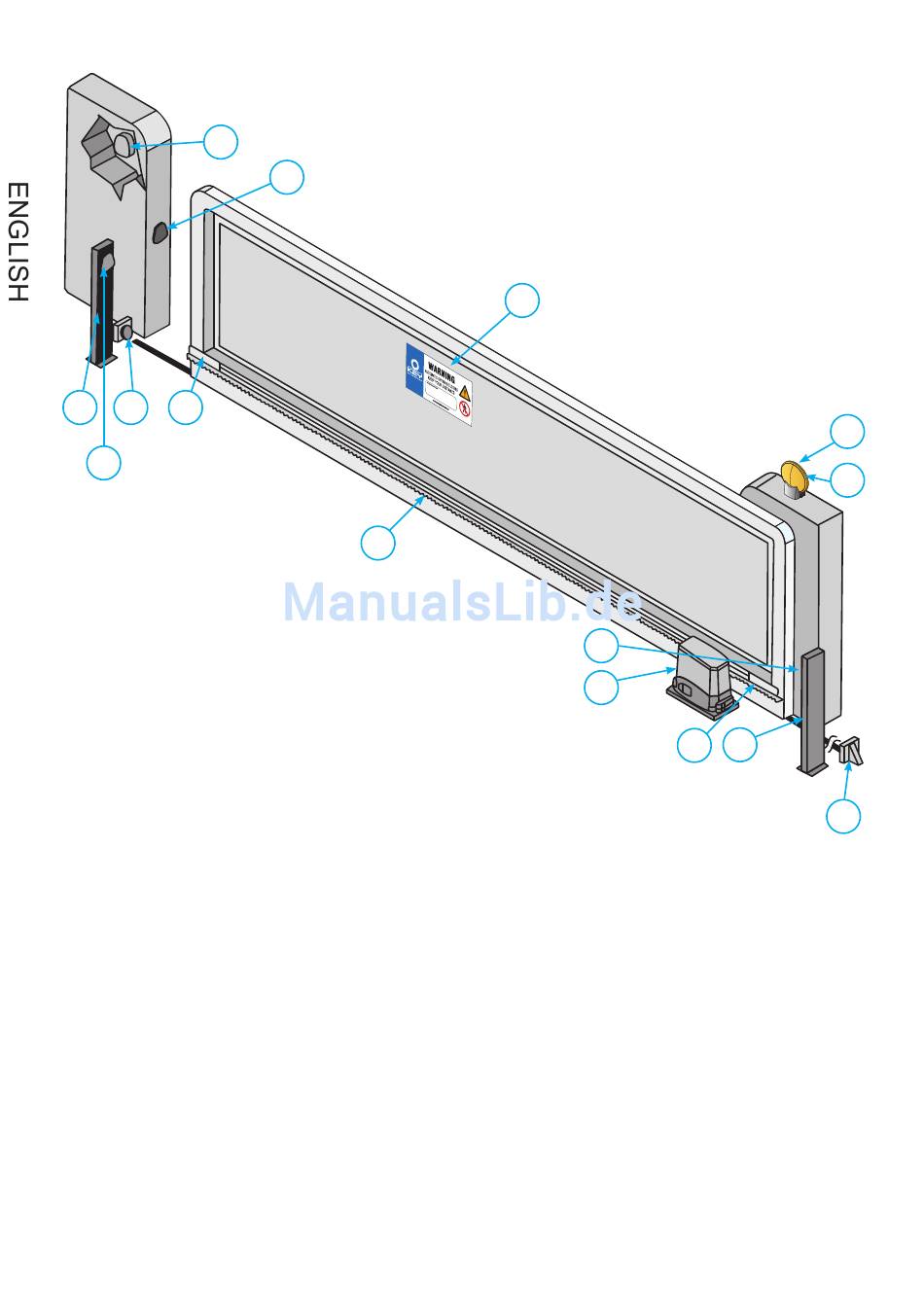

SET PANEL

5
7

PREVIOUS INSPECTIONS

14
1
2
3
4
5
6
7
8
9
10
9
5
1
8
Gear-motor

Flash-light

Antenna.
Key selector

Photocell

Small columm
Rack
Limit switch
Warning sign
Stop locks
3
2
6
10
