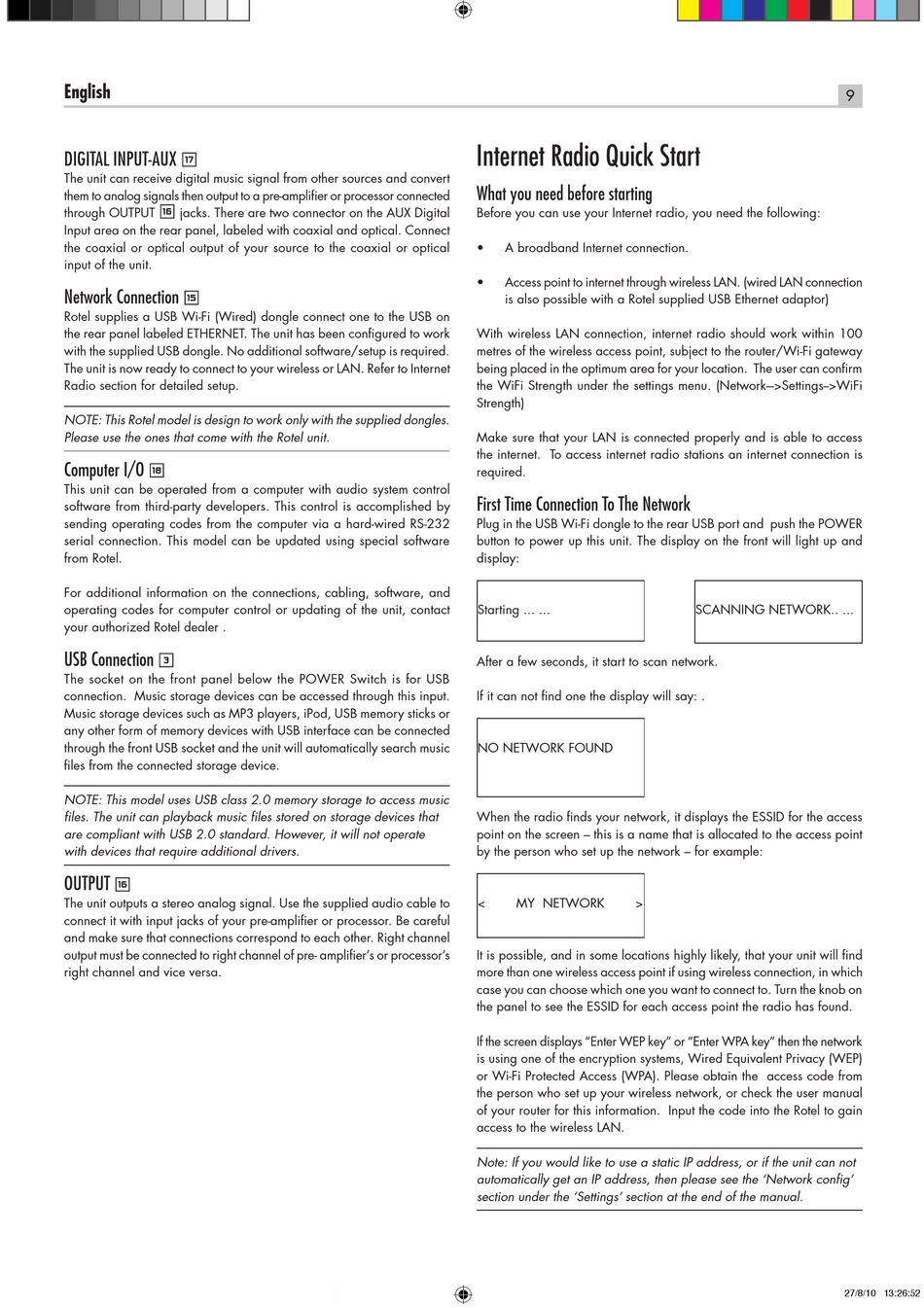

English

DIGITAL INPUT-AUX

t
The unit can receive digital music signal from other sources and convert
them to analog signals then output to a pre-amplifier or processor connected
through OUTPUT r jacks. There are two connector on the AUX Digital
Input area on the rear panel, labeled with coaxial and optical. Connect
the coaxial or optical output of your source to the coaxial or optical
input of the unit.

Network Connection

e
Rotel supplies a USB Wi-Fi (Wired) dongle connect one to the USB on
the rear panel labeled ETHERNET. The unit has been configured to work
with the supplied USB dongle. No additional software/setup is required.
The unit is now ready to connect to your wireless or LAN. Refer to Internet
Radio section for detailed setup.
NOTE: This Rotel model is design to work only with the supplied dongles.
Please use the ones that come with the Rotel unit.

Computer I/O

y
This unit can be operated from a computer with audio system control
software from third-party developers. This control is accomplished by
sending operating codes from the computer via a hard-wired RS-232
serial connection. This model can be updated using special software
from Rotel.
For additional information on the connections, cabling, software, and
operating codes for computer control or updating of the unit, contact
your authorized Rotel dealer .

USB Connection

3
The socket on the front panel below the POWER Switch is for USB
connection. Music storage devices can be accessed through this input.
Music storage devices such as MP3 players, iPod, USB memory sticks or
any other form of memory devices with USB interface can be connected
through the front USB socket and the unit will automatically search music
files from the connected storage device.
NOTE: This model uses USB class 2.0 memory storage to access music
files. The unit can playback music files stored on storage devices that
are compliant with USB 2.0 standard. However, it will not operate
with devices that require additional drivers.

OUTPUT

r
The unit outputs a stereo analog signal. Use the supplied audio cable to
connect it with input jacks of your pre-amplifier or processor. Be careful
and make sure that connections correspond to each other. Right channel
output must be connected to right channel of pre- amplifier's or processor's
right channel and vice versa.

Internet Radio Quick Start

What you need before starting

Before you can use your Internet radio, you need the following:
• A broadband Internet connection.
• Access point to internet through wireless LAN. (wired LAN connection
is also possible with a Rotel supplied USB Ethernet adaptor)
With wireless LAN connection, internet radio should work within 100
metres of the wireless access point, subject to the router/Wi-Fi gateway
being placed in the optimum area for your location. The user can confirm
the WiFi Strength under the settings menu. (Network--->Settings-->WiFi
Strength)
Make sure that your LAN is connected properly and is able to access
the internet. To access internet radio stations an internet connection is
required.

First Time Connection To The Network

Plug in the USB Wi-Fi dongle to the rear USB port and push the POWER
button to power up this unit. The display on the front will light up and
display:
Starting ... ...
After a few seconds, it start to scan network.
If it can not find one the display will say: .
NO NETWORK FOUND
When the radio finds your network, it displays the ESSID for the access
point on the screen – this is a name that is allocated to the access point
by the person who set up the network – for example:
< MY NETWORK
It is possible, and in some locations highly likely, that your unit will find
more than one wireless access point if using wireless connection, in which
case you can choose which one you want to connect to. Turn the knob on
the panel to see the ESSID for each access point the radio has found.
If the screen displays "Enter WEP key" or "Enter WPA key" then the network
is using one of the encryption systems, Wired Equivalent Privacy (WEP)
or Wi-Fi Protected Access (WPA). Please obtain the access code from
the person who set up your wireless network, or check the user manual
of your router for this information. Input the code into the Rotel to gain
access to the wireless LAN.
Note: If you would like to use a static IP address, or if the unit can not
automatically get an IP address, then please see the 'Network config'
section under the 'Settings' section at the end of the manual.
SCANNING NETWORK.. ...
>
9
