Stacking

Speaker-systems may only be installed on top of other speaker-systems if the systems are protected against
slipping and flipping over (e.g. via appropriate clamping belts).

Satellite systems

When choosing the installation material, optimum dimensions have to be chosen in order to secure
maximum safety.

OPERATION

After having connected your amplifier to the mains, turn both gain controls counter-clockwise to Min-position.
The last device to be switched on is the amplifier. The "ON" and "PROTECT" LED light up now. If it does not,
check if the amplifier is connected to the mains correctly.
After the turn-on delay the speakers are activated (PROTECT-LED is off).
After having set the volume controls of the pre-amplifier in null-position, turn the gain controls of your
amplifier to mid-position. You must not hear any loud humming. If there is humming nevertheless, check the
connecting cables between the pre-amplifier and the amplifier (switch off components before). Now adjust
the volume with the gain controls CH-1 and CH-2.
Caution! Increase the level of each channel only so far that the CLIP-LED lights up shortly. Thus, you avoid
that the output signal is distorted and your speakers are damaged.

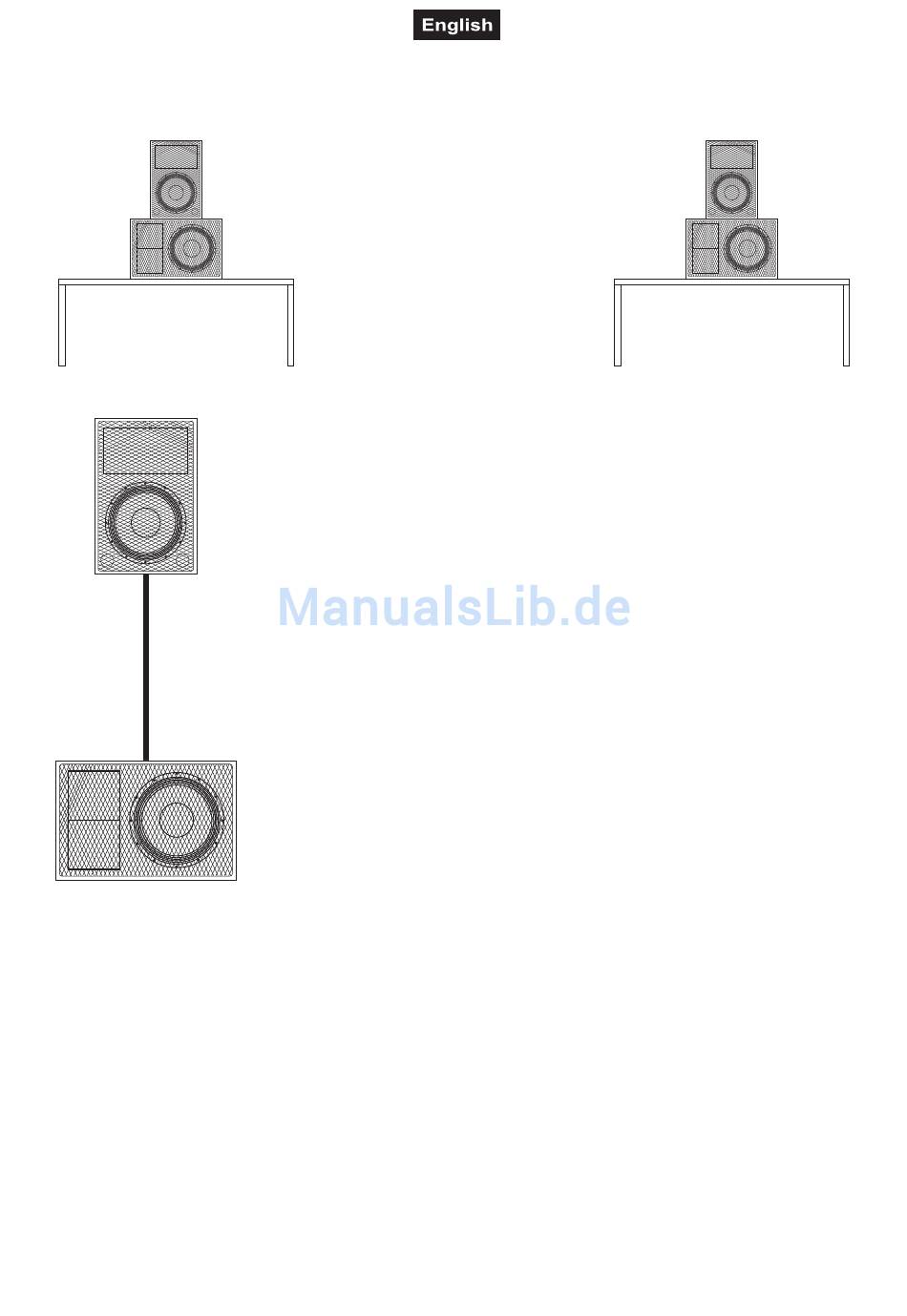

A satellite system is a system where a speaker system with flange is installed on
top of a subwoofer.
The satellite system must always provide enough stability. The subwoofer's base
surface must always be sufficiently dimensioned in relation to the top speaker in
order to prevent tilting over.
The subwoofer and the top speaker must only be connected via an appropriate
distance tube and flange.
The carrying capacity of the distance-tube must never be exceeded.
A satellite system or a combination of speaker system/speaker stand or speaker
system/stand must only be installed on the ground!
When choosing the installation-spot, please make sure that such an installation
has to be installed in a way that no person can enter the area below the system!
Make sure that the respective area is blocked.
An unintended movement of the load has to be avoided - also in case of fire!
The installation is only allowed on carrying areas. In some cases, an appropriate
substructure, e.g. via an balancing foot, has to be created.
The system must never be moved before the top speaker is uninstalled!
