Checkbox
7. Digital multimeter
(7)
(6)
-
10A
General Specifications
• Max Voltage between input terminal and Earth Ground:
CAT II 600V
• Over-range lndication: display 1 tor the significant digit.
• Automatic display of negative polarity
• Low Battery Indication
• LCD display: with3 1/2 digits
• Fuse protection: F-200mA(250V (Ø5x20MM)
• Power Supply: 9V battery
• Operating Temp.: 0°C to 40°C (relative humidity <85%)
• Storage Temp.:-10°C to 50°C ((relative humidity <85%)
• Guaranteed precision Temp.: 23±15 °C (relative humidi-
ty <85%)
• Dimension: 69x138x31MM
• Weight: approx. 170g (including battery)
• Calibration Interval: 1 year
• Designed according to IEC-1010
• Degree of polution 2
(1)
(2)
(3)
(4)
(5)
+
Resistance
DC Voltage
DC Current
AC Voltage
AC Vurrent
Temperature
Continuity

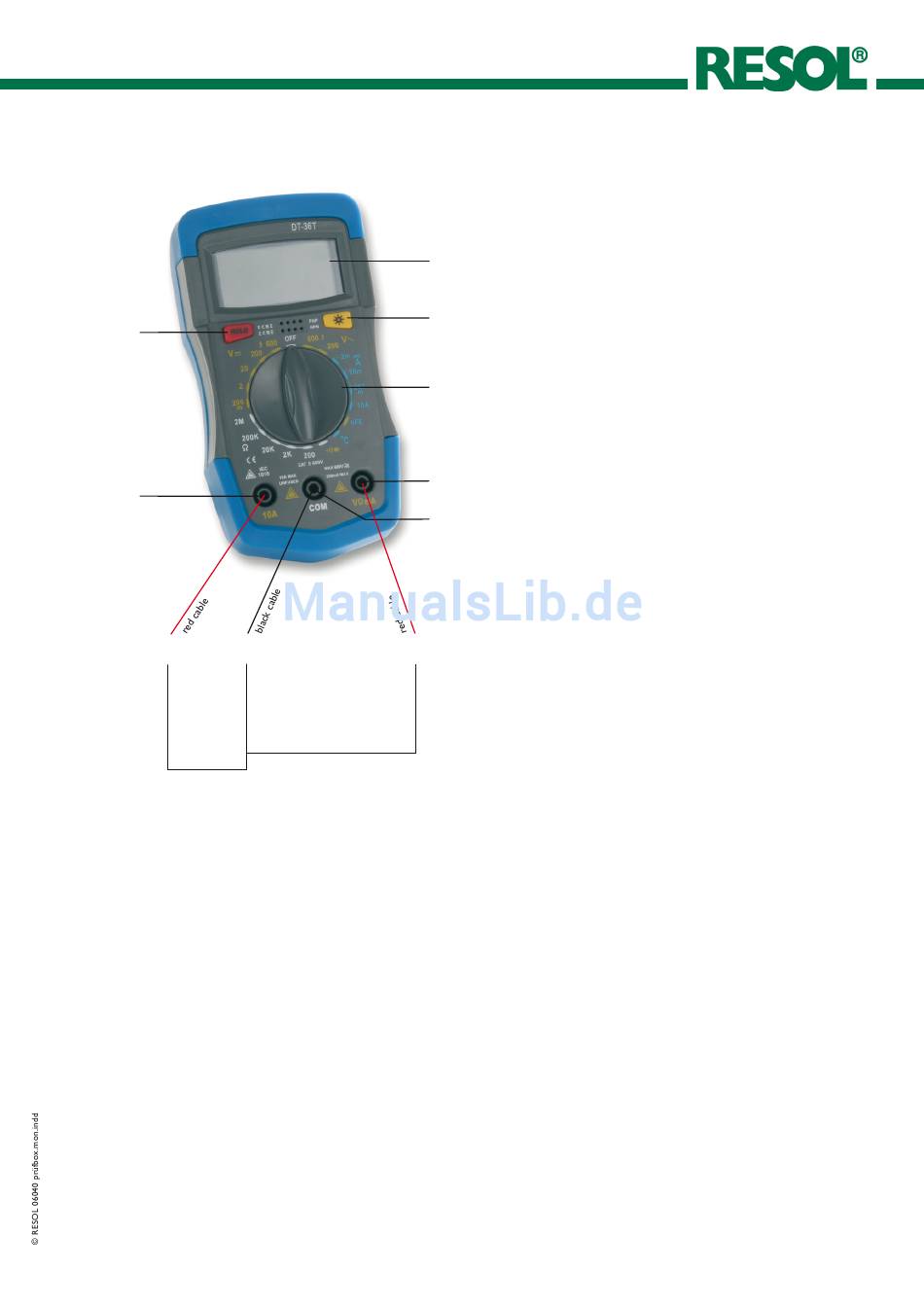

(1) LCD Display: 3½ digits, I6 mm high
(2) Backlight: Press this button to switch on the back-
light.The backlight is automatically shut off after 5 se-
conds.
(3) Rotary Switch to select functions and ranges
(4) V Ohm mA lnput Jack
(5) COM Input Jack
(6) 10A Input Jack
(7) HOLD button to „freeze" the displayed value
Warning
To avoid possible electric shock or personal injury, follow
these guidelines
• Do not use the meter if it is damaged. Before you use
the meter, inspect the case. Look for cracks or missing
plastic.
• Inspect the test leads for damaged insulation or
exposed metal. Check the test leads for continuity.
Replace damaged test leads before you use the meter.
• Do not use the meter if it operates abnormally. Protec-
tion may be impaired.
• Do not apply more than the rated voltage, as marked on
the meter, between terminals or between any terminal
and earth ground.
• Before use, verify the meter's operation by measuring a
known voltage.
• When measuring current, turn off circuit power before
connecting the meter in the circuit. Remember to place
the meter in series with the circuit.
• When servicing the meter, use only specified replace-
ment parts.
• Use caution when working above 30 V ac rms, 42 V
peak, or 60 V dc. Such voltages pose a shock hazard.
• Avoid working alone.
• When using the probes, keep your fingers behind the
finger guards on the probes.
• Connect the common test lead before you connect the
live test lead.When you disconnect test leads, discon-
nect the live test lead first.
• Remove test leads from the meter before you open the
battery door.
• To avoid false readings, which could lead to possible
electric shock or personal injury, replace the batteries
as soon as the low battery indicator appears.
• Disconnect circuit power and discharge all high-voltage
capacitors before testing resistance, continuity, diodes,
or capacitance.
• Use the proper terminals, function, and range for your
measurements.
• Before measuring current, check the meter's fuses and
turn power OFF to the circuit before connecting the
meter to the circuit.
