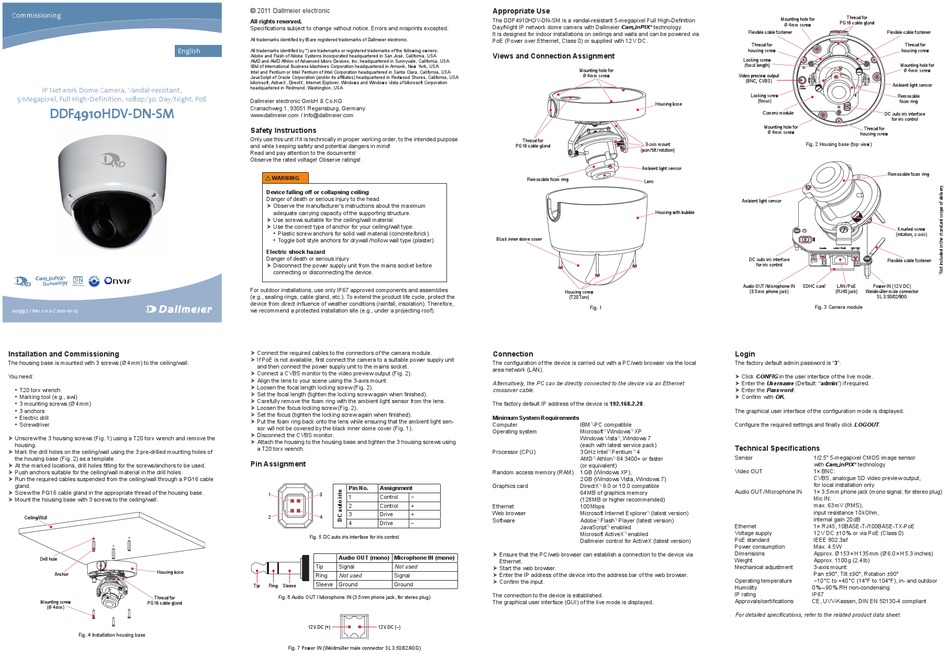

IP Network Dome Camera, Vandal-resistant,
5-Megapixel, Full High-Definition, 1080p/30, Day/Night, PoE
DDF4910HDV-DN-SM
003597 / Rev. 1.0.0 / 2011-10-25
Installation and Commissioning
The housing base is mounted with 3 screws (Ø 4 mm) to the ceiling/wall.
You need:
• T20 torx wrench
• Marking tool (e.g., awl)
• 3 mounting screws (Ø 4 mm)
• 3 anchors
• Electric drill
• Screwdriver
¾ Unscrew the 3 housing screws (Fig. 1) using a T20 torx wrench and remove the
housing.
¾ Mark the drill holes on the ceiling/wall using the 3 pre-drilled mounting holes of
the housing base (Fig. 2) as a template.
¾ At the marked locations, drill holes fitting for the screws/anchors to be used.
¾ Push anchors suitable for the ceiling/wall material in the drill holes.
¾ Run the required cables suspended from the ceiling/wall through a PG16 cable
gland.
¾ Screw the PG16 cable gland in the appropriate thread of the housing base.
¾ Mount the housing base with 3 screws to the ceiling/wall.
Ceiling/Wall
Drill hole
Housing base
Anchor
Thread for
Mounting screw
PG16 cable gland
(Ø 4 mm)
Fig. 4 Installation housing base
© 2011 Dallmeier electronic
All rights reserved.
Specifications subject to change without notice. Errors and misprints excepted.
All trademarks identified by ® are registered trademarks of Dallmeier electronic.
All trademarks identified by *) are trademarks or registered trademarks of the following owners:
Adobe and Flash of Adobe Systems Incorporated headquartered in San José, California, USA
AMD and AMD Athlon of Advanced Micro Devices, Inc. headquartered in Sunnyvale, California, USA
IBM of International Business Machines Corporation headquartered in Armonk, New York, USA
Intel and Pentium or Intel Pentium of Intel Corporation headquartered in Santa Clara, California, USA
JavaScript of Oracle Corporation (and/or its affiliates) headquartered in Redwood Shores, California, USA
Microsoft, ActiveX, DirectX, Internet Explorer, Windows and Windows Vista of Microsoft Corporation
headquartered in Redmond, Washington, USA
Dallmeier electronic GmbH & Co.KG
Cranachweg 1, 93051 Regensburg, Germany
www.dallmeier.com / info@dallmeier.com
Safety Instructions
Only use this unit if it is technically in proper working order, to the intended purpose
and while keeping safety and potential dangers in mind!
Read and pay attention to the documents!
Observe the rated voltage! Observe ratings!
WArnIng
Device falling off or collapsing ceiling
Danger of death or serious injury to the head
¾ Observe the manufacturer's instructions about the maximum
adequate carrying capacity of the supporting structure.
¾ Use screws suitable for the ceiling/wall material.
¾ Use the correct type of anchor for your ceiling/wall type:
• Plastic screw anchors for solid wall material (concrete/brick)
• Toggle bolt style anchors for drywall / hollow wall type (plaster)
Electric shock hazard
Danger of death or serious injury
¾ Disconnect the power supply unit from the mains socket before
connecting or disconnecting the device.
For outdoor installations, use only IP67 approved components and assemblies
(e.g., sealing rings, cable gland, etc.). To extend the product life cycle, protect the
device from direct influence of weather conditions (rainfall, insolation). Therefore,
we recommend a protected installation site (e.g., under a projecting roof).
¾ Connect the required cables to the connectors of the camera module.
¾ If PoE is not available, first connect the camera to a suitable power supply unit
and then connect the power supply unit to the mains socket.
¾ Connect a CVBS monitor to the video preview output (Fig. 2).
¾ Align the lens to your scene using the 3-axis mount.
¾ Loosen the focal length locking screw (Fig. 2).
¾ Set the focal length (tighten the locking screw again when finished).
¾ Carefully remove the foam ring with the ambient light sensor from the lens.
¾ Loosen the focus locking screw (Fig. 2).
¾ Set the focus (tighten the locking screw again when finished).
¾ Put the foam ring back onto the lens while ensuring that the ambient light sen-
sor will not be covered by the black inner dome cover (Fig. 1).
¾ Disconnect the CVBS monitor.
¾ Attach the housing to the housing base and tighten the 3 housing screws using
a T20 torx wrench.
Pin Assignment
Pin no. Assignment
1 3
1 Control −
2 Control +
3 Drive +
2 4
4 Drive −
Fig. 5 DC auto iris interface for iris control
Audio OUT (mono) Microphone In (mono)
Tip Signal Not used
Ring Not used Signal
Sleeve Ground Ground
Tip Ring Sleeve
Fig. 6 Audio OUT / Microphone IN (3.5 mm phone jack, for stereo plug)
12 V DC (+) 12 V DC (−)
Fig. 7 Power IN (Weidmüller male connector SL 3.50/02/90G)
Appropriate Use
The DDF4910HDV-DN-SM is a vandal-resistant 5-megapixel Full High-Definition
Day/Night IP network dome camera with Dallmeier technology.
It is designed for indoor installations on ceilings and walls and can be powered via
PoE (Power over Ethernet, Class 0) or supplied with 12 V DC.
Views and Connection Assignment
Mounting hole for
Ø 4 mm screw
Housing base
Thread for
3-axis mount
PG16 cable gland
(pan / tilt / rotation)
Ambient light sensor
Removable foam ring
Lens
Housing with bubble
Black inner dome cover
Housing screw
(T20 Torx)
Fig. 1
Connection
The configuration of the device is carried out with a PC/web browser via the local
area network (LAN).
Alternatively, the PC can be directly connected to the device via an Ethernet
crossover cable.
The factory default IP address of the device is 192.168.2.28.
Minimum System requirements
Computer IBM -PC compatible
*)
Operating system Microsoft Windows XP
*) *)
Windows Vista , Windows 7
*)
(each with latest service pack)
Processor (CPU) 3 GHz Intel *) Pentium *) 4
AMD *) Athlon *) 64 3400+ or faster
(or equivalent)
Random access memory (RAM) 1 GB (Windows XP),
2 GB (Windows Vista, Windows 7)
Graphics card DirectX *) 9.0 or 10.0 compatible
64 MB of graphics memory
(128 MB or higher recommended)
Ethernet 100 Mbps
Web browser Microsoft Internet Explorer (latest version)
*)
Software Adobe Flash Player (latest version)
*) *)
JavaScript *) enabled
Microsoft ActiveX *) enabled
Dallmeier control for ActiveX (latest version)
¾ Ensure that the PC/web browser can establish a connection to the device via
Ethernet.
¾ Start the web browser.
¾ Enter the IP address of the device into the address bar of the web browser.
¾ Confirm the input.
The connection to the device is established.
The graphical user interface (GUI) of the live mode is displayed.
Thread for
Mounting hole for
PG16 cable gland
Ø 4 mm screw
Flexible cable fastener Flexible cable fastener
Thread for Thread for
housing screw housing screw
Locking screw
(focal length) Mounting hole for
Ø 4 mm screw
Video preview output
(BNC, CVBS)
Ambient light sensor
Locking screw
Removable
(focus) foam ring
Camera module
DC auto iris interface
for iris control
Mounting hole for
Thread for
Ø 4 mm screw
housing screw
Fig. 2 Housing base (top view)
Removable foam ring
Ambient light sensor
Knurled screw
(rotation, z-axis)
DC auto iris interface
Flexible cable fastener
for iris control
Audio OUT / Microphone IN SDHC card 1 LAN / PoE Power IN (12 V DC)
(3.5 mm phone jack) (RJ45 jack) Weidmüller male connector
SL 3.50/02/90G
Fig. 3 Camera module
Login
The factory default admin password is "3".
¾ Click CONFIG in the user interface of the live mode.
¾ Enter the Username (Default: "admin") if required.
¾ Enter the Password.
¾ Confirm with OK.
The graphical user interface of the configuration mode is displayed.
Configure the required settings and finally click LOGOUT.
Technical Specifications
Sensor 1/2.5" 5-megapixel CMOS image sensor
with technology
Video OUT 1× BNC:
CVBS, analogue SD video preview output,
for local installation only
Audio OUT / Microphone IN 1× 3.5 mm phone jack (mono signal, for stereo plug)
Mic IN:
max. 63 mV (RMS),
input resistance 10 kOhm,
internal gain 20 dB
Ethernet 1× RJ45, 10BASE-T-/100BASE-TX-PoE
Voltage supply 12 V DC ±10 % or via PoE (Class 0)
PoE standard IEEE 802.3af
Power consumption Max. 4.5 W
Dimensions Approx. Ø 153 × H 135 mm (Ø 6.0 × H 5.3 inches)
Weight Approx. 1100 g (2.4 lb)
Mechanical adjustment 3-axis mount:
Pan ±90°, Tilt ±90°, Rotation ±90°
Operating temperature −10 °C to +40 °C (14°F to 104°F), in- and outdoor
Humidity 0 % – 90 % RH non-condensing
IP rating IP67
Approvals/certifications CE, UVV-Kassen, DIN EN 50130-4 compliant
For detailed specifications, refer to the related product data sheet.
