• The mounting plate (4) comes with three screws attached.
• Attach the mounting plate to the top of the barcode scanner by tightening the three screws with a Phillips
screwdriver. Ensure that the mounting plate is placed in the correct orientation. The screws must stand
upright.
• Place the three key-shaped holes on the smartphone holder (5) onto the three screws on the mounting
plate (4). Slide the smartphone holder in the direction of the narrower end of the key-shaped holes until
it clicks into place.
• You are now ready to attach your mobile device to the holder.
• Start by peeling the transparent film off the adhesive pad. If necessary, remove any protective covers or
other accessories from your mobile device. Place the holder on the back of your phone, ensuring that the
hook sits over the edge of the phone. Press the suction pads and the adhesive pad firmly to secure both
parts together.
• When your mobile device is not required, remove the scanner from the smartphone holder or remove your
mobile device. The adhesive pad is reusable.
Configuring the data transfer mode
• The barcode scanner can transfer data to your mobile device either wirelessly via Bluetooth or by using
a USB cable. You can switch between data transfer modes as desired. The wireless mode is enabled by
default. To transfer data to an OTG-capable mobile device using a USB cable, you will need to enable the
USB data transfer mode.
• Scan the "wired OTG communication mode" configuration barcode in the quick start guide that came with
the product. For more information on how to scan configuration barcodes, see "Configuring the settings".
• To enable the wireless Bluetooth mode, scan the "wireless BT communication (default)" configuration
barcode.
Pairing the barcode scanner with your mobile device via Bluetooth
Your mobile device must support at least one of the following Bluetooth
or Bluetooth SPP.
®
Configuring the Bluetooth connection
®
Ensure that your mobile device and its operating system supports the HID or SPP Bluetooth
are not sure which profile your phone supports, start by trying the HID profile. If you are unable to pair your
phone with the scanner, enable the SPP profile. For more information on how to scan configuration barcodes,
see "Configuring the settings".
• To enable the HID profile, scan the A1 and A2 barcodes in the operating instructions.
• To enable the SPP profile, scan the B1 and B2 barcodes in the operating instructions.
• Enable Bluetooth on your mobile device. For more information, refer to the instructions for your mobile
®
device. Follow the onscreen instructions to pair your mobile device with the scanner. The LED indicator (9)
turns red to indicate that the scanner is in pairing mode. It turns off when the two devices have been paired
successfully. The barcode scanner is now ready to use and can read barcodes and transmit data via the
Bluetooth connection.
®
The barcode scanner will attempt to re-establish the Bluetooth
when data is being uploaded. Bring the barcode scanner within range of your computer or
mobile device. If necessary, repeat the pairing process.
• To reset the barcode scanner, scan the configuration barcodes in the "Reset Configuration to Defaults"
section in the quick start guide. Ensure that you scan the barcodes in ascending order (A1 to A8 or B1
to B8).

Operation

• Before using the barcode scanner, refer to the "Configuring the scanner settings" section for information
on how to configure the scanner.
• Press the Push ON button (10) to turn on the barcode scanner. The button is located on the bottom of
the scanner.
• Move the O C sliding switch (8) to the "O" position.
• Open a document on your file management device (mobile device). The barcode will be inserted into the
position where the cursor blinks.
• Point the scan window (3) at the barcode that you want to scan and press the trigger (2). You will hear two
short beeps and the LED indicator (9) will flash briefly.
• Position the scan window (6) at a sufficient distance and an angle of 30° – 60° to the barcode. Depending
on the size and specification of the barcode, you may need to adjust the distance between the barcode and
the scanner. Pay attention to the following diagram when positioning the scanning unit.
a) Switching between operating modes
• The barcode scanner features two operating modes. In data transmission mode, it sends the scanned
barcode data directly to your mobile device. If your device is not connected (e.g. the barcode scanner is
not within range), the data is saved temporarily and automatically transferred to your mobile device when
the connection is re-established. Data transmission mode is enabled by default.
• In data storage mode, data is saved to the scanner's internal memory. Saved data can be uploaded onto
a suitable reading device.
• To switch operating modes, scan the desired configuration ode.
- To switch to data storage mode, scan the "Data Storage mode (Batch Mode)" configuration code in the
quick start guide.
- To switch to data transmission mode, scan the "Data Transmission mode (Default)" configuration code
in the quick start guide.
• You can switch operating modes when the data in the scanner's internal memory has been deleted. If you
attempt to switch modes when there is data in the internal memory, the red/orange LED indicator (9) will
blink and you will hear a long beep to indicate that the scanner failed to switch modes.
®
profiles: Bluetooth
®
®
connection if it is interrupted
®

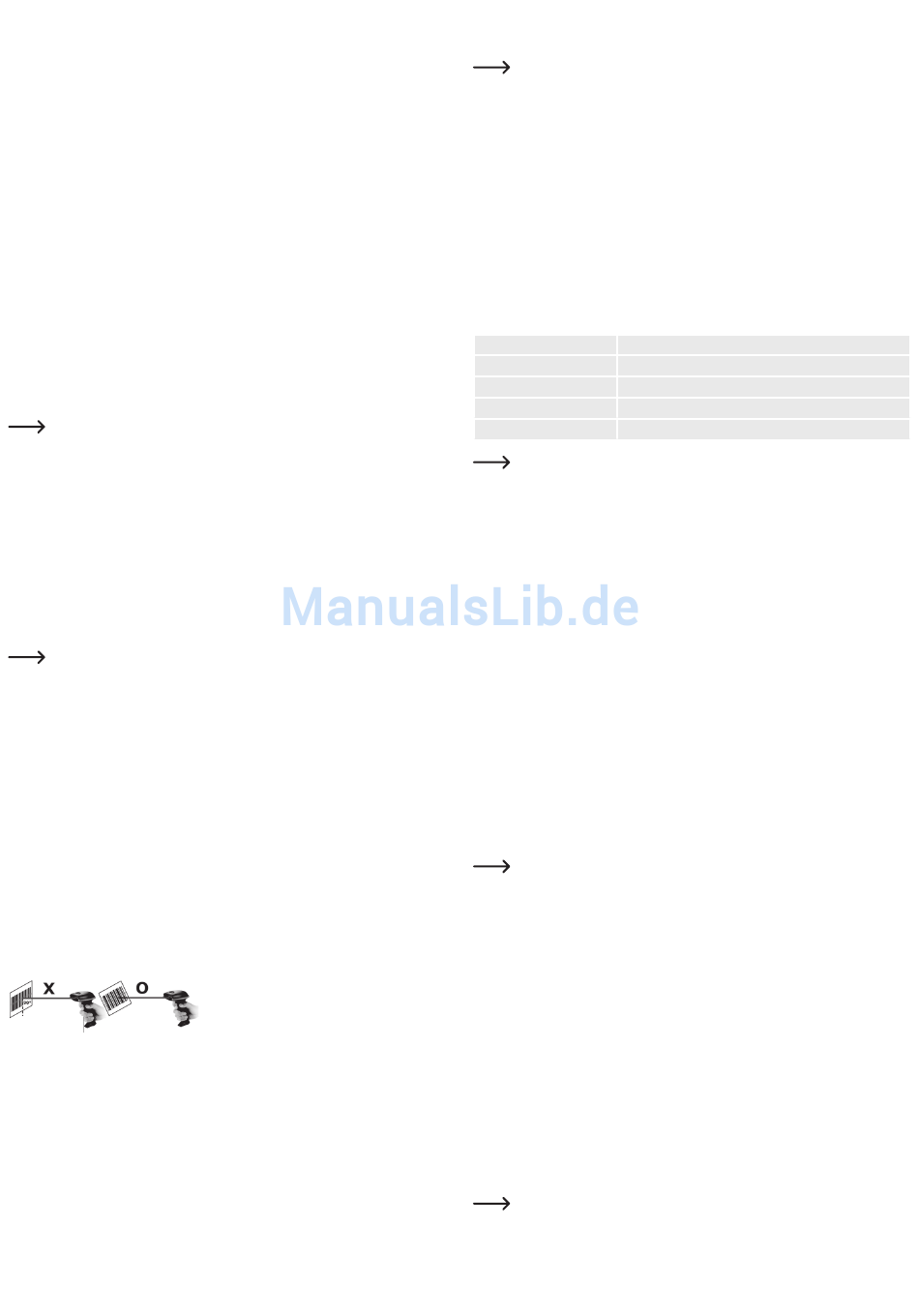

Hold the scanner at the correct angle to the barcode.
Never hold the scanner at right angles to the barcode.
b) Uploading saved data
• To upload data from the internal memory, scan the "Transmit memory data" configuration code in the quick
start guide. The green/orange LED indicator (9) will blink and you will hear three beeps.
Both devices must be within range or connected via a USB cable.
c) Deleting data from the memory
• If you want to switch operating modes or upload scanned data, you will need to delete the existing data
from the scanner's memory. If you do not delete the existing data, you will not be able to scan more
barcodes or switch operating modes.
• To delete data from the internal memory, scan the "Clean memory data" configuration code in the quick
start guide. The green/orange LED indicator (9) will blink and you will hear three beeps. The saved data
will be deleted.
Tips & notes
• Ensure that the barcode is clean before scanning it.
• The barcode must be fully visible.
• Keep the barcode scanner at the specified distance and angle from the barcode.
• Hold the scanning unit parallel to the barcode.
• To prevent incorrect results, check the settings each time you turn on the barcode scanner.
Meaning of the LED indicator status (9)
Constant orange
Flashing orange
Constant red
Constant green
HID
® Constant orange
If the barcode scanner is connected to an iOS mobile device, the mobile device may display an
error message when the barcode scanner is placed into the charging station (1). If you encounter
profiles. If you
this issue, remove and then reinsert the barcode scanner into the charging station.
Configuring the scanner settings
The barcode scanner can be configured to suit different usage scenarios. Use the following instructions
together with the quick start guide included with the product. The quick start guide includes all barcodes
that are needed to configure the scanner. Scan the desired barcode with the barcode scanner to apply the
corresponding settings. The configuration codes are printed next to each other in some places. Cover the
other codes (apart from the code that you want to scan) with your hand or a piece of paper. All symbologies
are enabled by default. You can enable or disable individual symbologies as required.
1. Turn on the barcode scanner in data transmission mode.
2. Enable configuration mode by scanning the Start Configuration barcode in the quick start guide.
3. Select the desired symbology in the quick start guide.
4. Enable a symbology by scanning the "ENABLE" barcode.
5. Disable a symbology by scanning the "DISABLE" barcode.
6. Exit configuration mode by scanning the End Configuration barcode.
Overview of the scanner settings
a) Setting the keyboard country
• Scan the configuration barcode for the desired country. The country barcodes can be found in the
"Keyboard Country (Wired OTG mode only)" section in the quick start guide. You will hear a beep when
the scanner registers the barcode.
• Barcodes are available for the following countries: USA, Norway, Germany, Sweden, Denmark,
Switzerland, Italy, France, Vietnam, Spain, Portugal, Hungary.
Ensure that you select the US keyboard settings on your mobile device. The following symbols
are usually supported when the keyboard settings are set to "US": @ | $ # { } [ ] = / ' \ < > ~. These
symbols may not be available on keyboards for other countries.
b) Restoring default settings
If you encounter any input issues, reset the scanner to the default settings.
• To restore the default settings for the HID profile, scan the configuration codes A1 to A8 (in ascending
order) in the "Reset Configuration to Default" section in the quick start guide.
• To restore the default settings for the SPP profile, scan the configuration codes B1 to B8 (in ascending
order) in the "Reset Configuration to Default" section in the quick start guide.
• The barcode scanner will be restored to factory settings.
c) Data transmission rate ("Transmission Speed")
To prevent data loss, you need to select the correct transfer speed for your mobile device on the barcode
scanner. The device is set to <Middle speed> by default. Use the default setting and test your device by
scanning a few barcodes in data transmission mode. If the data fails to send, lower the transfer speed by one
level. If necessary, lower the transfer speed again until the data is sent.
• To set the data transmission rate, scan the configuration barcodes in the "Transmission Speed" section
in the quick start guide. Configuration codes are available for six different speeds (high/medium/low, and
three very low speeds).
<High-Speed transmission> <Middle-speed transmission> <Slow-speed transmission> <Ultra-slow speed 1
transmission> <Ultra-slow speed 2 transmission> <Ultra-slow speed 3 transmission>
Please note that some data transfer speeds may not be available depending on your Bluetooth
profile. Refer to the quick start guide for details.
Battery is fully charged
Battery is charging / low battery
Not connected / not ready to use
Barcode detected
Barcode detected (data storage mode)
®
