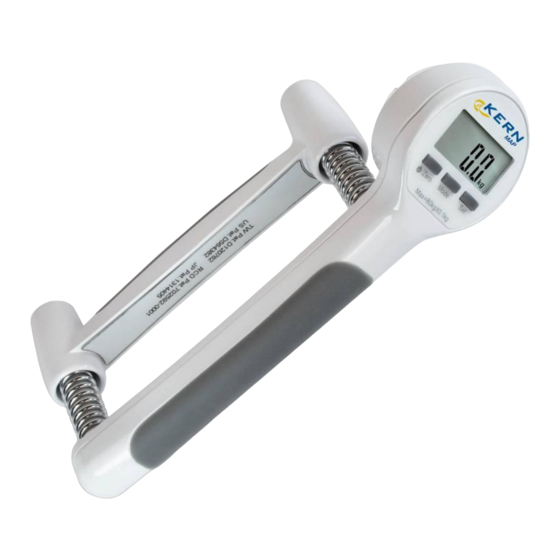

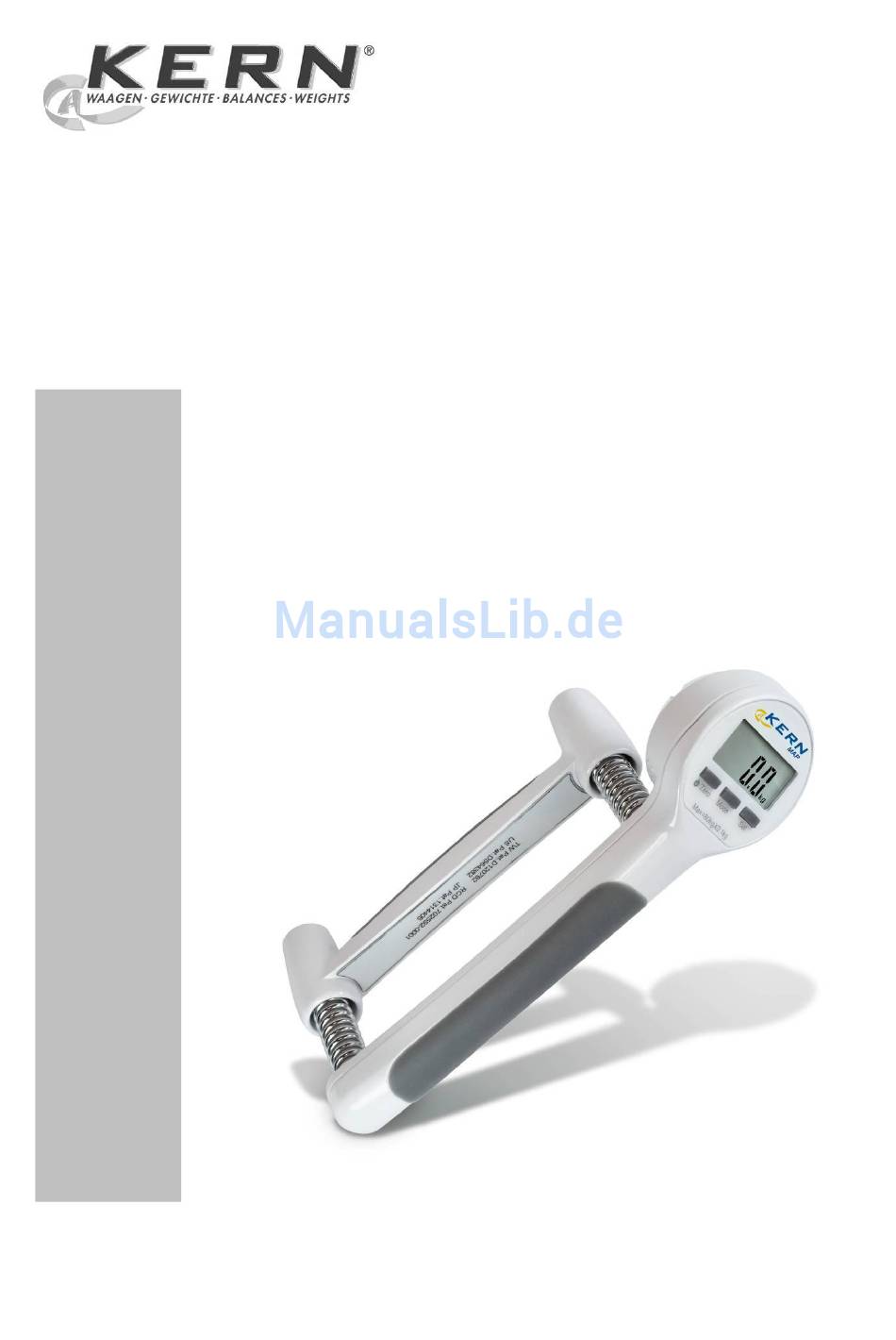

- Seite 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Hand Grip Dynamometer KERN MAP Version 1.2 08/2012 MAP-BA-e-1212...
-
Seite 2: Inhaltsverzeichnis
KERN MAP Version 1.2 08/2012 Hand Grip Dynamometer Table of Contents Technical Data ....................3 Appliance overview ..................8 Basic Information (General) ................9 Basic Safety Precautions ................10 Transportation & Storage ................10 Removing packaging and initial start-up ........... 11 Operation ...................... -
Seite 3: Technical Data
1 Technical Data KERN MAP 80K1 Capacity 80 kg 40 kg 20 kg (blue) (green) (red) Readability (d) 0.1 kg / 0.2 lb Units kg, lb Auto Off After 1 min without change of load 1 x CR2450 Electric Supply Service life 53 h + 5°C …... - Seite 4 KERN MAP 80K1S Capacity 80 kg 40 kg 20 kg 10 kg (blue) (green) (red) (yellow) Readability (d) 0.1 kg / 0.2 lb Units kg, lb Auto Off After 1 min without change of load 1 x CR2450 Electric Supply Service life 53 h + 5°C …...
- Seite 5 KERN MAP 130K1 Capacity 130 kg 80 kg 40 kg (white) (blue) (green) Readability (d) 0.1 kg / 0.2 lb Units kg, lb Auto Off After 1 min without change of load 1 x CR2450 Electric Supply Service life 53 h + 5°C …...
- Seite 6 1.1 Dimensions MAP 80K1S: MAP-BA-e-1212...
- Seite 7 MAP 80K1 , MAP 130K1 MAP-BA-e-1212...
-
Seite 8: Appliance Overview
2 Appliance overview 1. Battery compartment, see chapter 7 2. Display, see chapter. 8 3. Keyboard, see chapter. 8 4. Spring set, see chapter. 7 Transport case MAP-BA-e-1212... -
Seite 9: Basic Information (General)
The responsible user must define a suitable interval as well as type and scope of this test. For further information please go to KERN-Homepage (HYPERLINK http://www.kern- sohn.com under www.kern-sohn.com). MAP-BA-e-1212... -
Seite 10: Basic Safety Precautions
4 Basic Safety Precautions Carefully read this operation manual before setup and com- missioning, even if you are already familiar with KERN bal- ances. Versions in other languages are non-binding translations. The only binding version is the original document in German. -
Seite 11: Removing Packaging And Initial Start-Up
6 Removing packaging and initial start-up Place of The unit is designed to achieve reliable measuring results un- der normal conditions of use. application Required conditions for place of operation: Prevent extreme heat and temperature fluctuations Protect the appliance against high humidity, vapours and dust;... - Seite 12 How to replace a spring set 1. Press device until the two screws [1] become visible. 2. Remove screws. 3. Remove grip first, followed by springs. 4. Insert desired spring set. 5. Reassemble device in reverse order. MAP-BA-e-1212...
- Seite 13 Install two additional washers only in the 130 kg-spring set. (s. fig.) MAP-BA-e-1212...
- Seite 14 Battery operation 1. Open battery cover, as shown on illustration. 2. Replace battery (CR-2450). 3. Reinsert the battery cover. To save battery power, the device auto-disconnects automati- cally after 60 seconds have passed without a change of display. If the batteries are run down soon, "LO" appears in the display.
- Seite 15 Commissioning Correct left hand right hand MAP-BA-e-1212...
- Seite 16 Correct left hand right hand MAP-BA-e-1212...
- Seite 17 wrong MAP-BA-e-1212...
-
Seite 18: Operation
7 Operation Overview of displays 1. Stability display 2. Battery status 3. Operation modus 4. Percentage display 5. Weighing unit "lb" 6. Weighing unit "kg" Keyboard overview Button Function Switch-on / off, zeroing / Zero Mode Select operating mode Confirm display In real mode: Switch unit from kg ... - Seite 19 Turn on/off Switch on the device by pressing the /zero key. Zero display appears. Zeroing If the device does not exactly show zero, unload the device and press the /zero key. To switch off, keep /zero key pressed for approx. 3 seconds.
-
Seite 20: Operating Modes
7.1 Operating modes The device is in real mode at delivery. Use the mode key to switch over the device to the following operating modes. Operating mode Display Function Real time mode Shows current strength. Counts number of gripping actions Counting mode exceeding a previously set strength limit. - Seite 21 Real time mode 1. Show actual strength Relieve Press Release 2. Change unit kg lb In real mode it is possible to switch from “kg” to “lb” by pressing the set key – and vice versa. During power-up the device will return to the mode or unit it had been in before it was switched off.
- Seite 22 Counting mode 1. Call mode Switch on the device by pressing the /zero key. Press mode key repeatedly until the count display ap- pears. 2. How to define the strength limit The currently set strength limit is displayed. To change, press the mode key repeatedly until the de- sired strength limit is displayed.
- Seite 23 3. Counting gripping actions Press, and release device as often as possible. Each gripping action is acknowledged by an audio sound. The number of gripping actions carried out will be shown on screen. 4. Start further counting Press the /Zero button, the zero display disappears. Count gripping actions as described under item 3.
- Seite 24 Average mode 1. Call mode Switch on the device by pressing the /zero key. Press mode key repeatedly until avg. display appears. 2. Determine average strength from two hand grips Carry out first gripping action Strength of first hand grip will be shown. Carry out second gripping action.
- Seite 25 Press the set key; average strength derived from the two hand grips will be calculated and displayed flashing. 3. Start further measurements To return to measuring mode, press the set key. Press the /Zero button, the zero display disappears. Carry out further measurements as described under item 2.
- Seite 26 Peak/Max-Mode 1. Call mode Switch on the device by pressing the /zero key. Press the mode key repeatedly until max display appears. 2. Carrying Out Measurement Example: Example: A gripping action achieves a strength of 50 kg. Now you are able to determine whether follow-up measurements also reach 50 kg = 100% or for example only 31% = 15.5 kg (ad- justable range 1-100 %) Carry out gripping action...
- Seite 27 To change, press the mode key repeatedly until the desired per- centage appears. Use the Set key to confirm. If a new gripping action shows If a new gripping action shows a strength of less than for in- a strength greater than for in- stance <...
-
Seite 28: Service, Maintenance, Disposal
Service, main- The appliance may only be opened by trained service techni- tenance cians who are authorized by KERN. Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the loca- Disposal tion where the appliance is used. -
Seite 29: Error Messages
9 Error messages Capacity of batteries exhausted. For replacing of batteries, see chapter. 7 Underload, set to zero by pressing /zero key Overload, release device Preload error, put minor stress on device during power-up EEPROM error, switch-off and restart device. If the error mes- sage remains inform manufacturer.
