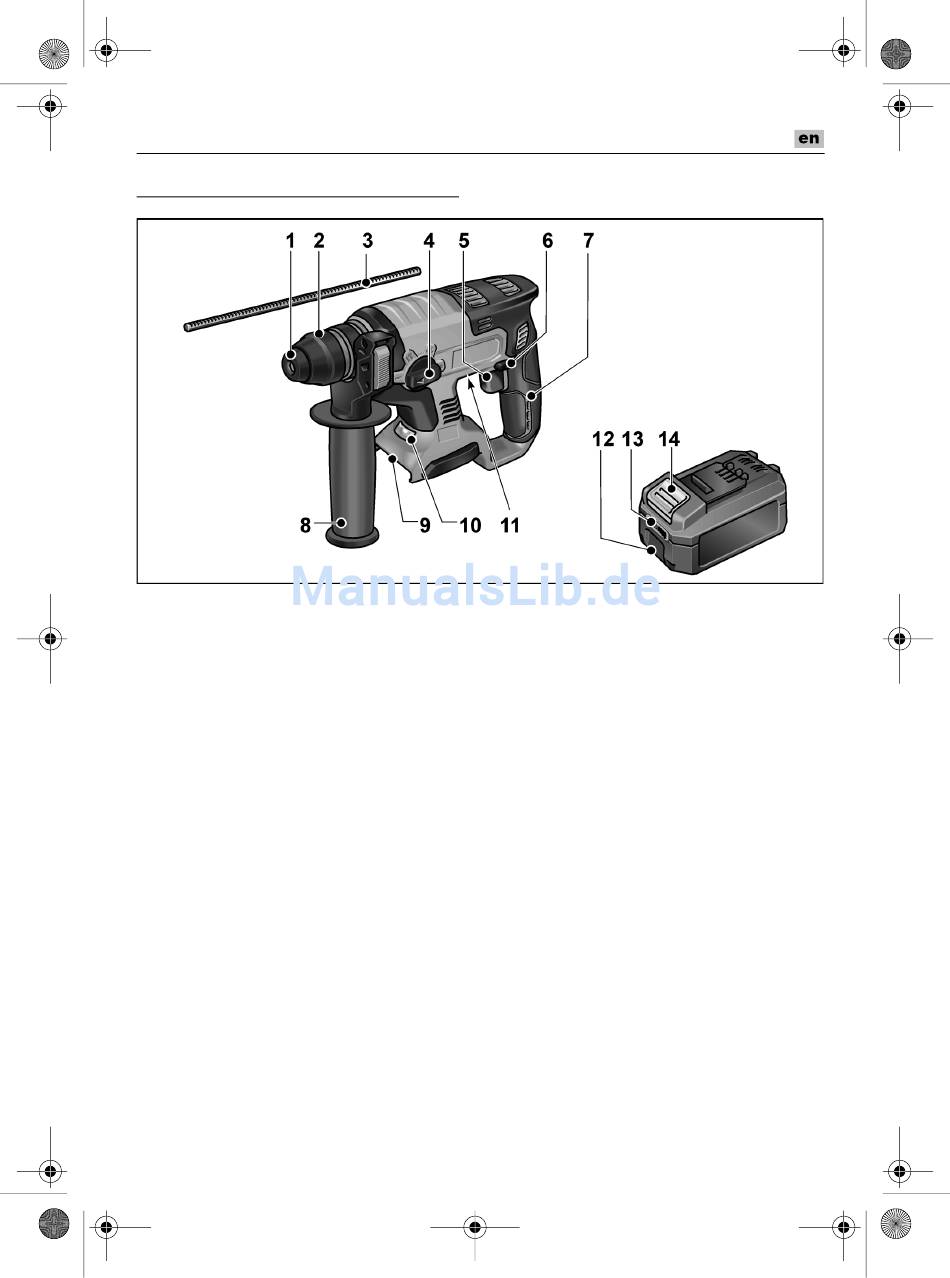

Overview

1 Dust cap
2 Locking sleeve
3 Depth stop
4 Rotary knob for operating mode
5 Trigger switch
For switching on and off and for
accelerating up to maximum speed/
impact rate.
6 Direction preselector switch
7 Handle
8 Auxiliary handle
9 Slot for battery
10 LED lighting
For illuminating the working area.
11 Rating plate *
12 Li-ion battery (2.5 Ah or 5.0 Ah)
13 State of charge indicator
14 Release button for battery
