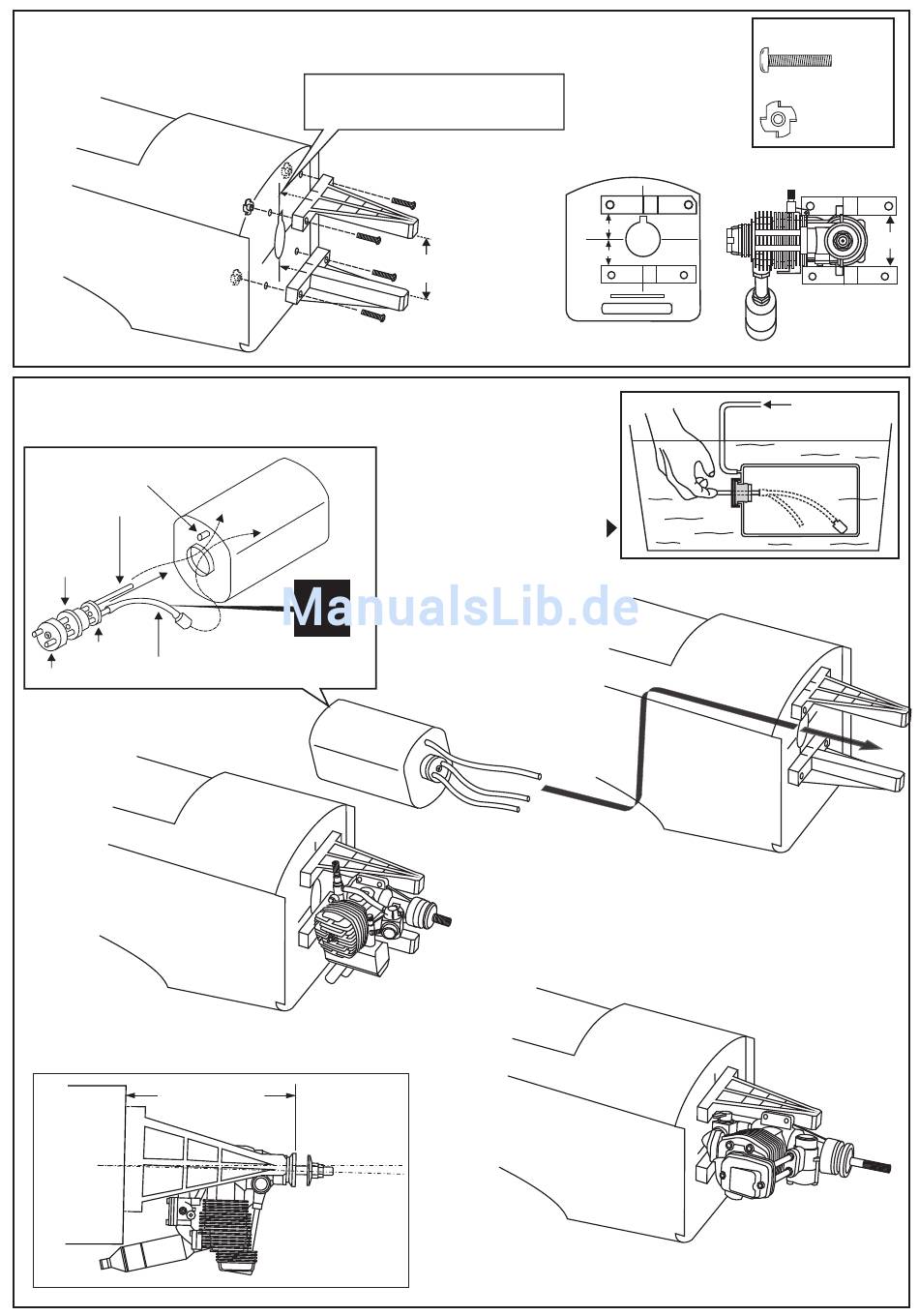

15- Engine mount
16- Fuel tank
To muffler
Filler tube
Rubber
stopper
Stopper
To engine
Cap
(IN CASE OF 2T ENGINE)
(116 ~ 118mm)
! Align the mark on both mounts
with the mark on the fuselage
! Engine thrust on balk head
is already adjust at factory
A
Checking for leaks - block the
vents and blow into the feed - if in
doubt submersing the tank in a
blow of water will show up any
problems.
X
Fuel tube
TOP-VIEW
FRONT-VIEW
B
B'
B=B'
FUEL TANK INSTALLATION
Carefully install the fuel tank to ensure that they
will not shift during flight (secure the fuel tank in
place using foam padding).
(IN CASE OF 4T ENGINE)
4x25mm screw
........4
Blind-nut
................4
A
FRONT-VIEW
Blow
Water
