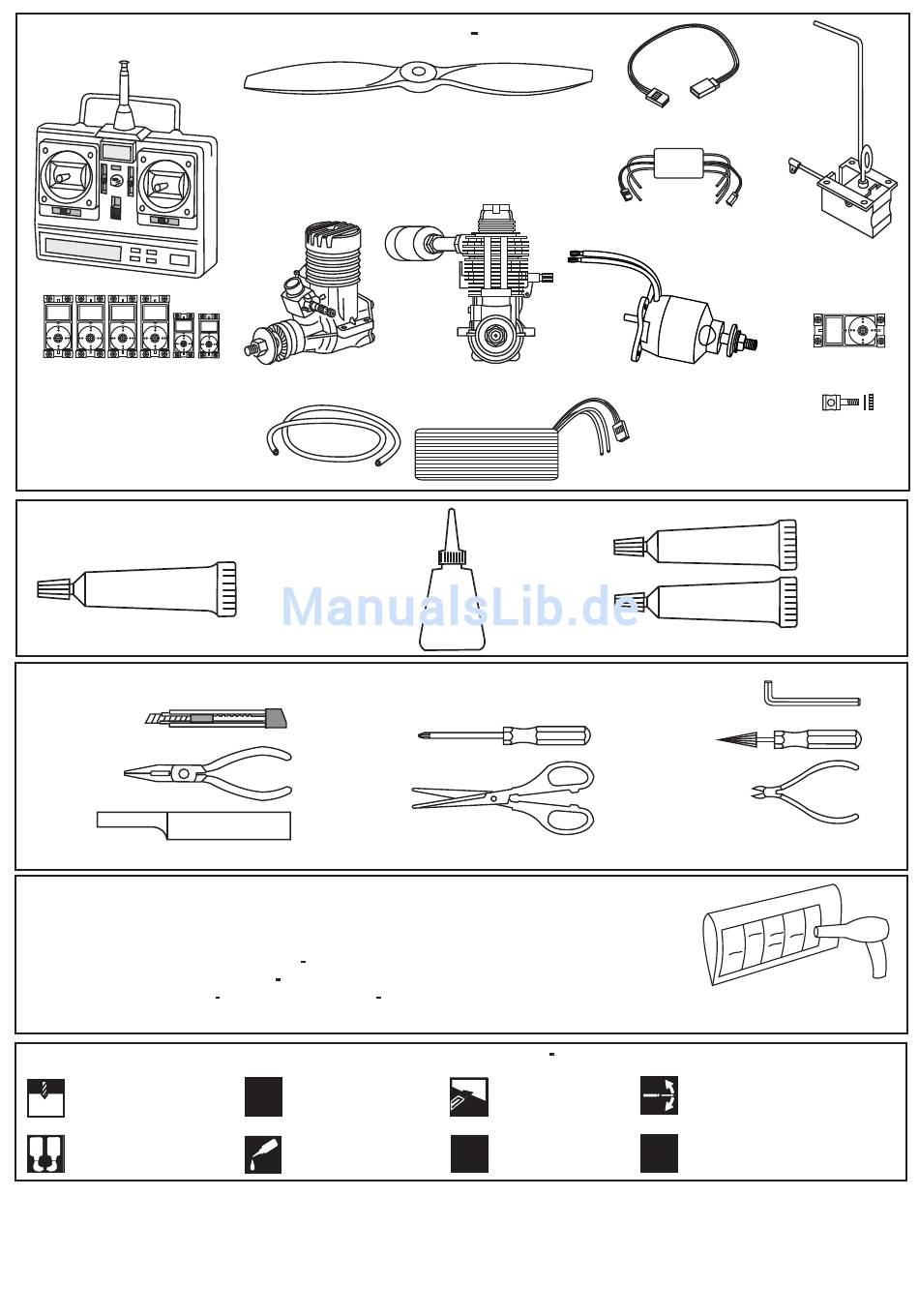

REQUIRED ITEMS / Zum Betrieb wird benotigt
Minimum 5 channel radio
for airplane with 6 servos
Aileron servo x 2.
Throttle servo x 1.
Rudder servo x 1.
Elevator servo x 2 (mini servo).
/ Klebstoff
GLUE
SILICON
Silicon Glue
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Sander
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Masking tape - Straight Edged Ruler - Pen or pencil - Rubbing alcohol - Drill and Assorted Drill Bits
If exposed to direct sunlight and / or heat, wrinkles can appear. Storing the model in a coll
place will let the wrinkles disappear. Otherwise, remove wrinkles in covering film with a hair-
dryer, starting with low temperature. You can fix the corners by using a hot iron.
Bei Sonneneinstrahlung und / oder Warme kann die Folie erschlaffen bzw. Falten entstehen.
Verwenden Sie ein Warumluftgeblase (Haartrockner) um evtl. Falten aus der Folie zu
bekommen. Die Kanten konnen Sie mit einem Bugeleisen behandeln. Nicht zuviel Hitze
anwenden
Symbols used throughout this instruction manual, comprise / Selbsterklarende Symbole
Drill holes using the stated
size of drill
1.5mm
(in this case 1.5 mm Ø)
A B
Use epoxy glue
Read through the manual before you begin, so you will have an overall idea of what to do.
CONVERSION TABLE
3.0mm = 1/8"
1.0mm = 3/64"
4.0mm = 5/32"
1.5mm = 1/16"
5.0mm = 13/64"
2.0mm = 5/64"
6.0mm = 15/64"
2.5mm = 3/32"
12x6 for .60
12x7 for .90
13x8 for Brushless Motor
.60 - 2 cycle
Silicone tube
Cyanoacrylate
Glue
/ Erforderliches Werkzeug
Phillip screw driver
Scissors
!
Take particular care here
Apply cyano glue
CA
10mm = 13/32"
12mm = 15/32"
15mm = 19/32"
20mm = 51/64"
- 2 cycle engine
- 4 cycle engine
.90 - 4 cycle
Li-Po Battery, 5000mAh
CA
Epoxy Glue ( 5 minute and 30 minute type)
Hatched-in areas:
remove covering
film carefully
Assemble left and right
L/R
sides the same way.
25mm = 1"
30mm = 1-3/16"
45mm = 1-51/64"
Extension for aileron
servo, retract servo.
60A Brushless ESC
60A Brushless Regler
870Watt Brushless
Motor (PULSAR 60)
Linkage Stopper x2
(for retract servo)
EPOXY A
EPOXY B
Hex Wrench
Awl
Wire Cutters
Check during assembly that these
parts move freely, without binding
Not included.
X
These parts must be
purchased separately
Retract landing
gear VQAR08
Retract servo
x1
