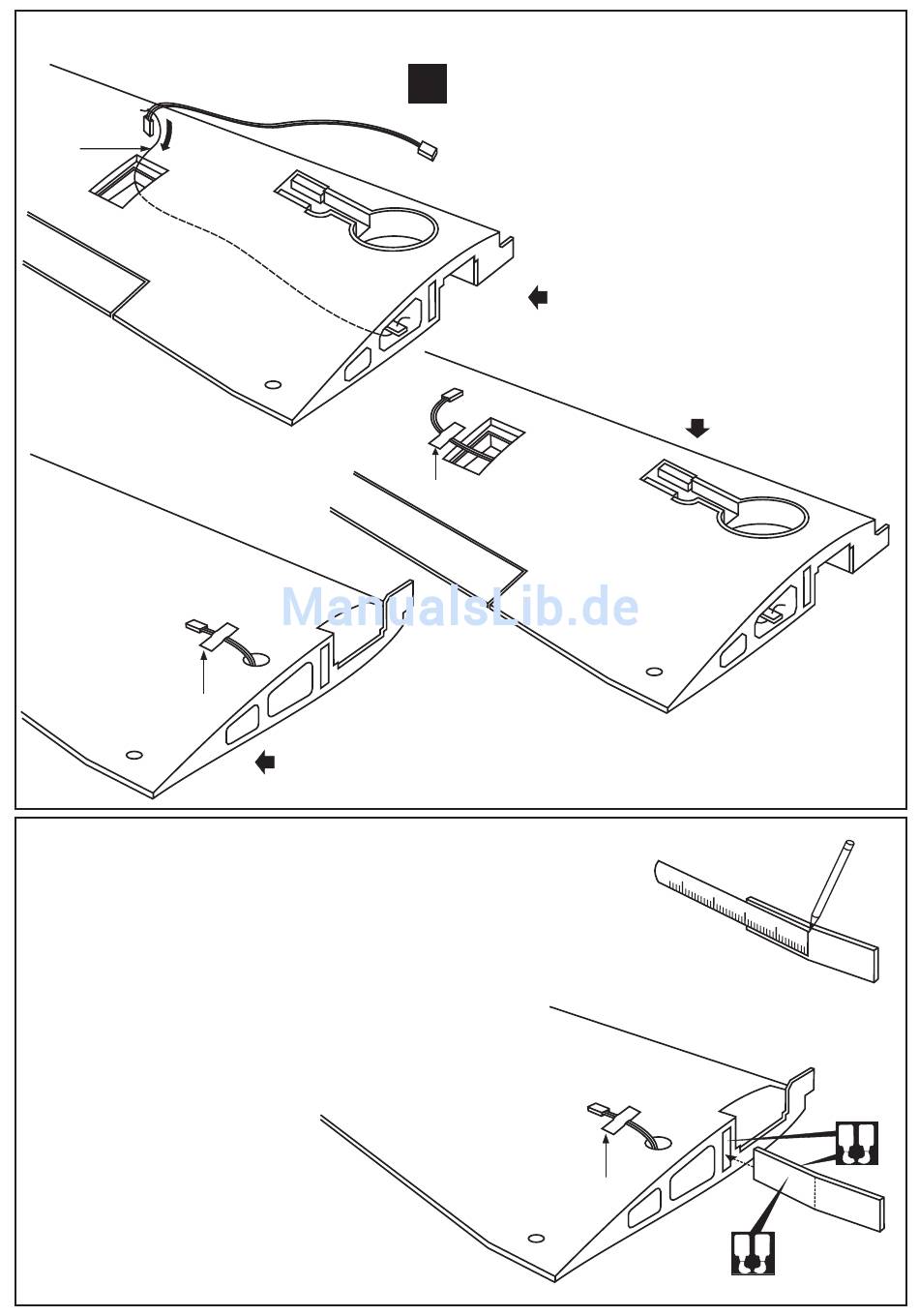

1-Aileron extension cord installation
Thread (pre-installed
at factory)
WING TOP-VIEW
Adhesive tape
2- Joining the wing
Before gluing:
- Draw the center line on the wing joiner.
- Trial fit each part before gluing . Be certain that there are no gaps.
If the parts will join, but with a gaps, sand or trim the parts a little at
a time until the parts meet exactly with no gaps.
- Check for the correct dihedral angle
Coat one half of the dihedral brace with epoxy up
to the center line. Install the epoxy-coated side of
the dihedral brace into the wing joiner cavity up to
the center line.
X
30cm Extension cord
WING BOTTOM-VIEW
Adhesive tape
Using the adhesive tape to secure the one
end of the aileron extension cord in place.
Using the thread (pre-installed at factory)
to slide the aileron extension cord into the
wing half.
Using the adhesive tape to secure
the one end of the aileron extension
cord in place.
Draw the center line
on the wing joiner
Adhesive tape
WING BOTTOM-VIEW
A B
A B
30 min. Epoxy
