8- Fixed gear
3x12mm screw
..........8
3x20mm screw
......16
Nylon gear strap
.......4
Gear mount x 2
2mm
Ply gear mount
plate x 2
Square plastic x 2

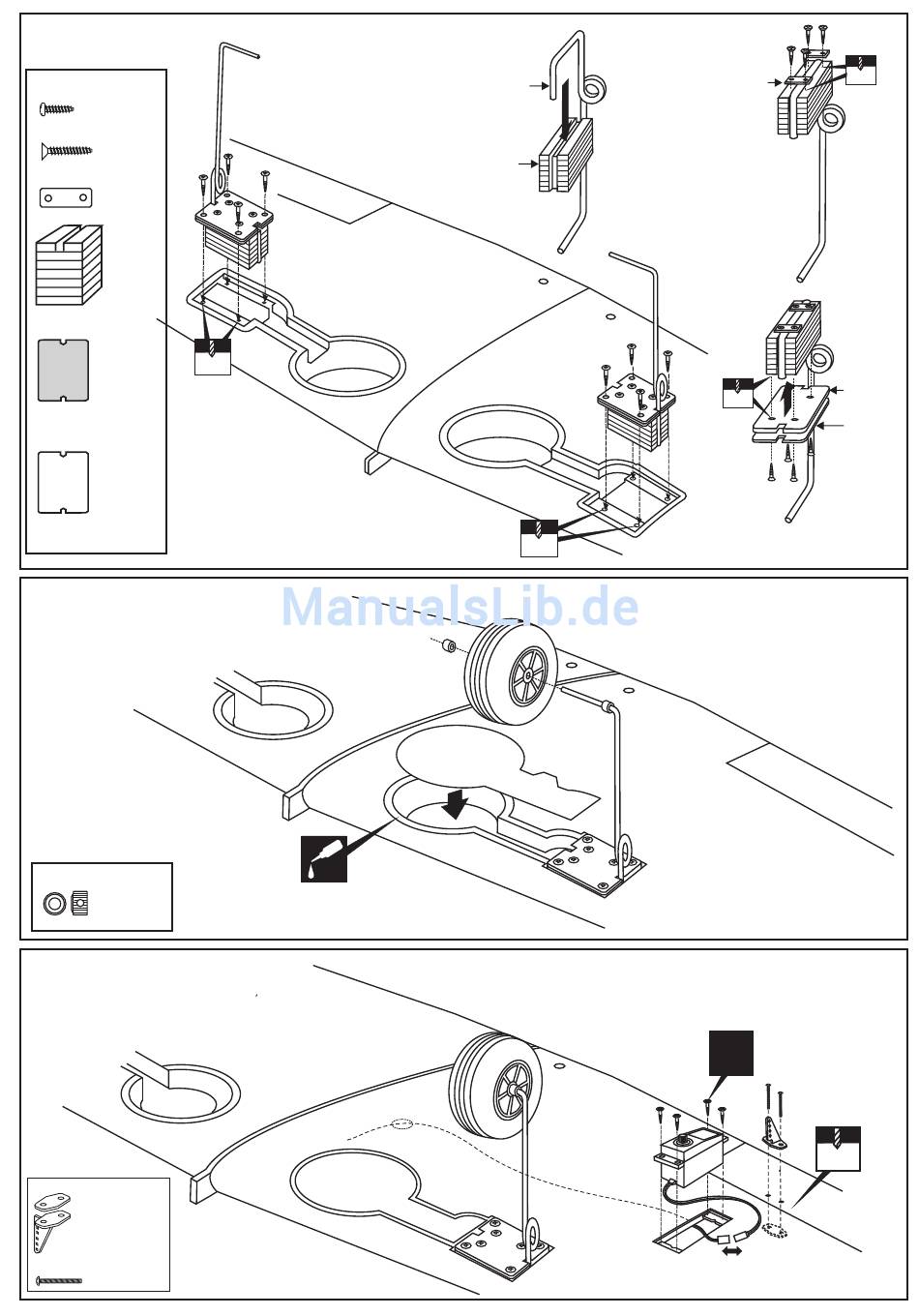

9- Fix gear installation
4mm collar
..........4
10- Aileron servo
Plastic
control horn
....................2
2x30mm screw
...............2
Main landing gear
Wing - bottom view
CA
BOTTOM VIEW
BOTTOM VIEW
Gear mount
1
3x20mm screw
2mm
Cut away the film of the wing bottom where the
aileron servo goes.
Install the servo extension cord in to the wing
Install the aileron servo on the servo mount
Aileron servo
Nylon gear
strap
2
2mm
4
3x20mm
Included with
X
the radio set
3x20mm
2mm
Ply gear
mount flat
Square
plastic
3
2mm
