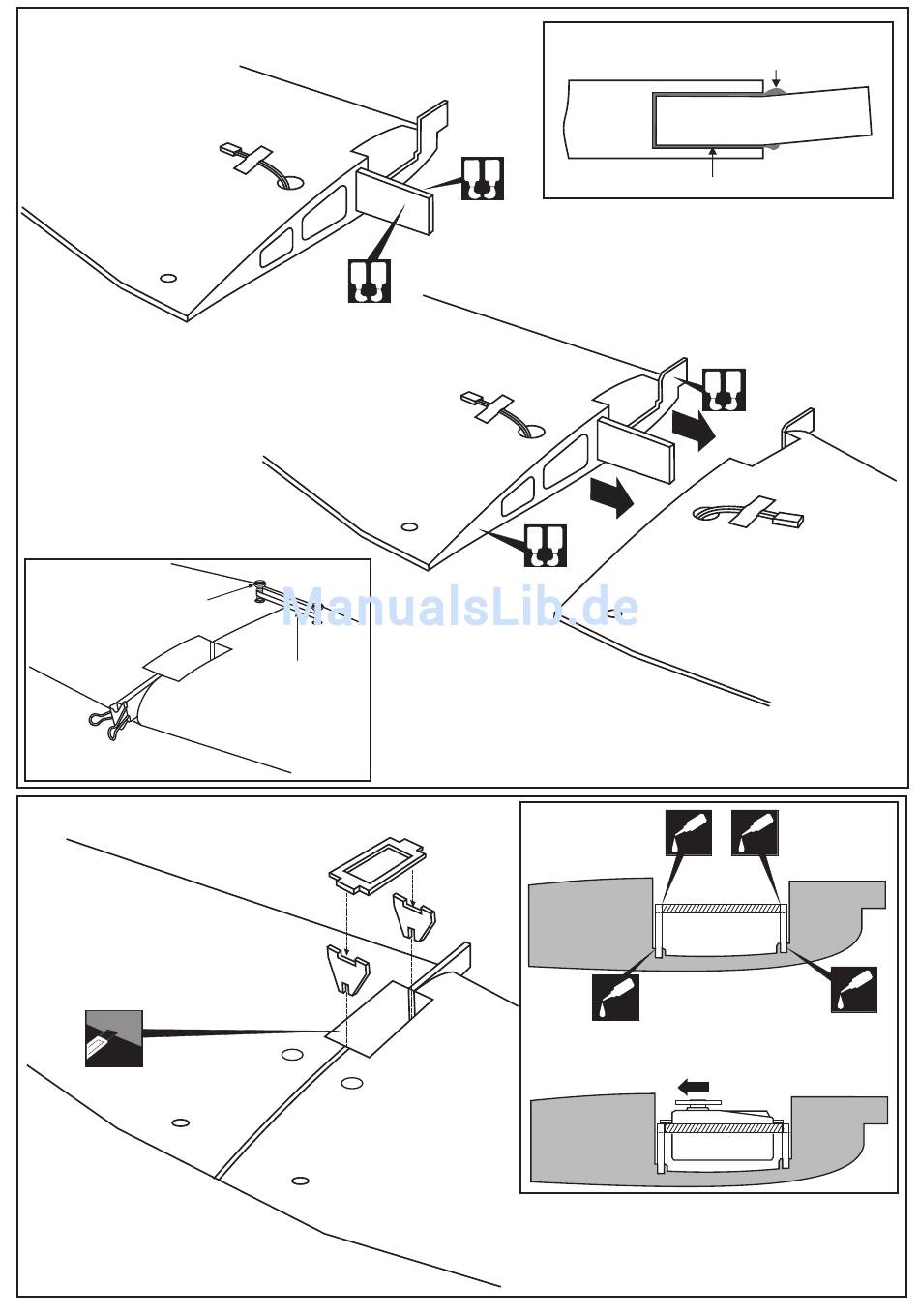

3- Joinning the wing
Carefully slide the wing halves together,
ensuring that they are accurately aligned.
Firmly press the two halves together,
allowing the excess epoxy to run out.
Note: The two wing halves roots must
fit together perfectly.
Clear off the excess epoxy.
Hold the wing halves together with paper
clamp and rubber band.
Nylon wing bolt
(included)
Paper clamp
(not include)
WING TOP-VIEW
5- Retract servo mount
Note:
Retract servo mount "B"is longer than "C"
Retract servo mount
Cut away only
the film
WING TOP-VIEW
A B
30 min. Epoxy
Rubber band
(not include)
Retract servo tray
B
TOP-VIEW
Wing half
A B
! Make sure to glue securely, If not properly glued,
a failure in flight may occur.
A B
WING TOP-VIEW
IMPORTANT: Please do not clean off the excess epoxy on the
wing with strong solvent or pure alcohol, only use kerosene to
keep the colour of your model not fade.
A
CENTER
C
WING
SECTION
Note: The head of servo should be positioned
toward the rear of the wing.
CENTER
WING
SECTION
Glue
Wing joiner
Glue must go inside
A B
30 min. Epoxy
CA
CA
A
C
B
BOTTOM
CA
CA
