6- Retract servo
7- Retract landing gear
Steel clevis
.........2
Retract servo
FRONT-VIEW
7- Retract linkage
RETRACTED
TOP-VIEW
Retract pushrod
WING-TOP
VQ-AR03 -160223
Retract (option)
EXTENDED

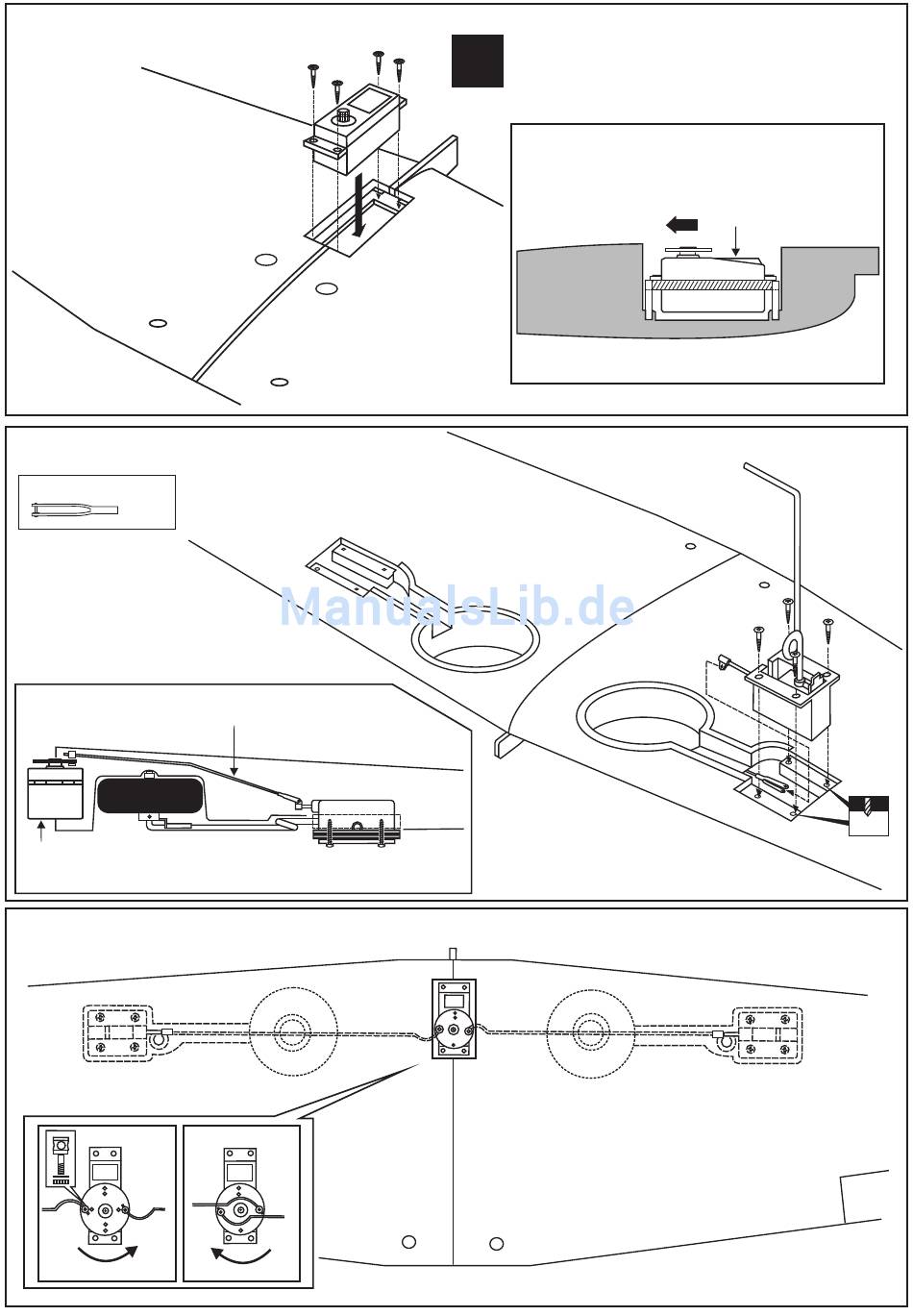

Install the retract servo onto the retract
servo mount and secure it in place with
X
four screw (included with radio set).
Retract servo
RETRACT SERVO INSTALLATION
Note: The head of servo should be positioned
toward the rear of the wing.
CENTER
WING
SECTION
Wing - bottom view
TOP-VIEW
Retract servo
BOTTOM
3x20mm screw
4
2mm
