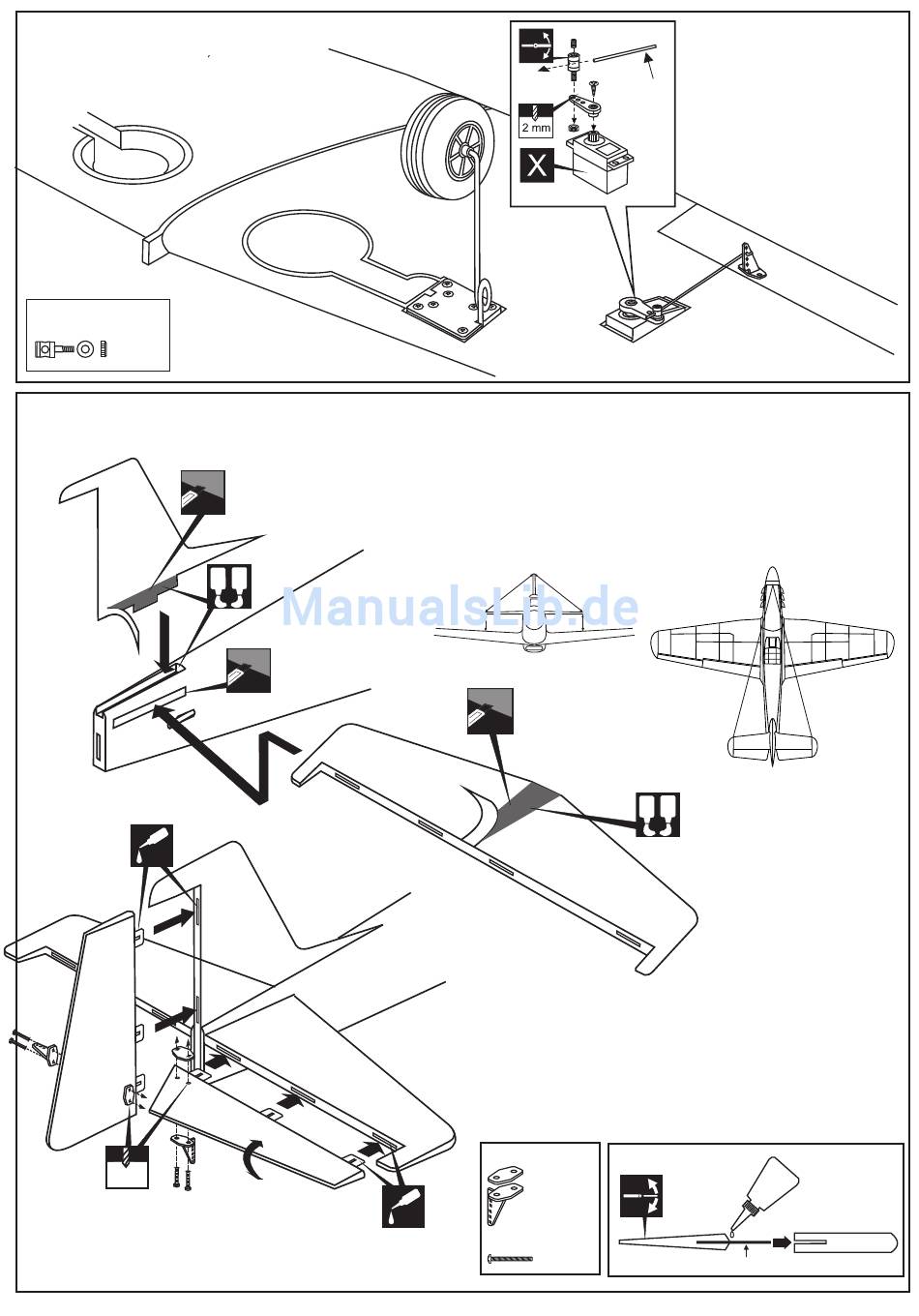

11- Aileron linkage
Linkage stopper
BOTTOM VIEW
......2
12- Stabilizer
CA
5/64"
2.mm
2x12mm screw
Securely glue together. If coming off during flight,
you lose control of your air plane.
Cut away only the
covering both side
A B
Cut away only the
covering both side
Cut away only the
covering both side
2x20mm screw
2mm screw
Trial fit each part before gluing . Be certain that there are
no gaps.
If the parts will join, but with a gaps, sand or trim the parts
a little at a time until the parts meet exactly with no gaps.
When joining the stabilizer it is extremely important to use plenty of
epoxy (30 minutes) or CA glue (thin type)
Allow the epoxy to cure before proceeding to the next step.
B
B'
C
Push the elevator and its hinges into the hinge slots in the
trailing edge of the horizontal stabilizer. There should be a
minimal hinge gap and the end of the elevator should not rub
against the horizontal stabilizer.
When satisfied with the and alignment, hinge the elevator to the
horizontal stabilizer using thin CA glue. Make sure to apply a
thin layer of CA glue to the top and bottom of both hinges and to
inside the hinge slots. Repeat the previous procedures to hinge
the second elevator to the other side of the horizontal stabilizer.
Control horn
................3
CA
2x20mm screw
..........6
Aileron
pushrod
Aileron servo
C'
A = A'
B = B'
A
C = C'
Apply the epoxy
A B
both side
Hinge
A'
Thin CA
STABILIZER
