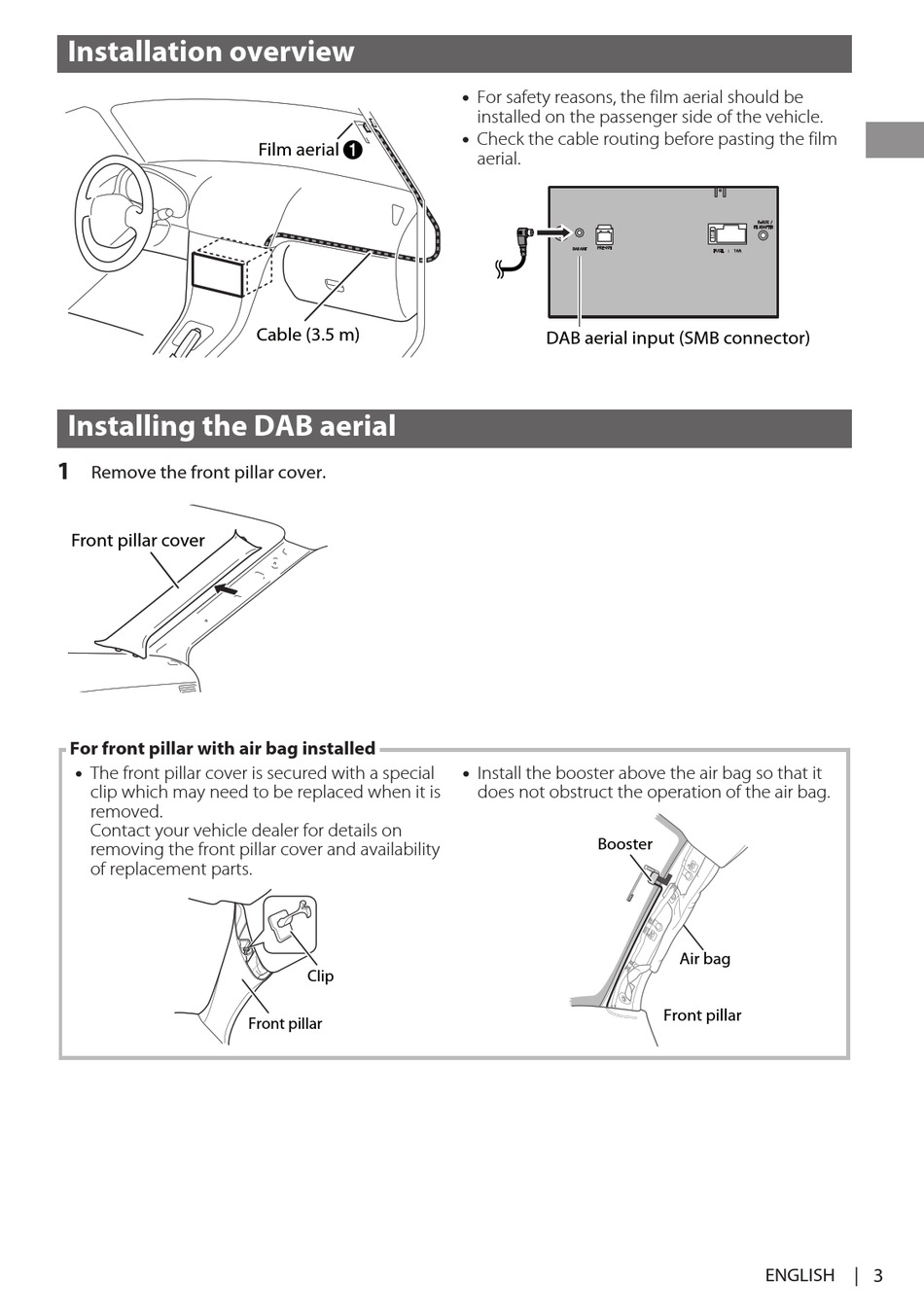

Installation overview

Installing the DAB aerial
1
Remove the front pillar cover.
Front pillar cover
For front pillar with air bag installed
The front pillar cover is secured with a special
clip which may need to be replaced when it is
removed.
Contact your vehicle dealer for details on
removing the front pillar cover and availability
of replacement parts.
Film aerial A
Cable (3.5 m)
Clip
Front pillar
Installation overview
For safety reasons, the film aerial should be
installed on the passenger side of the vehicle.
Check the cable routing before pasting the film
aerial.
DAB aerial input (SMB connector)
Install the booster above the air bag so that it
does not obstruct the operation of the air bag.
Booster
Air bag
Front pillar
