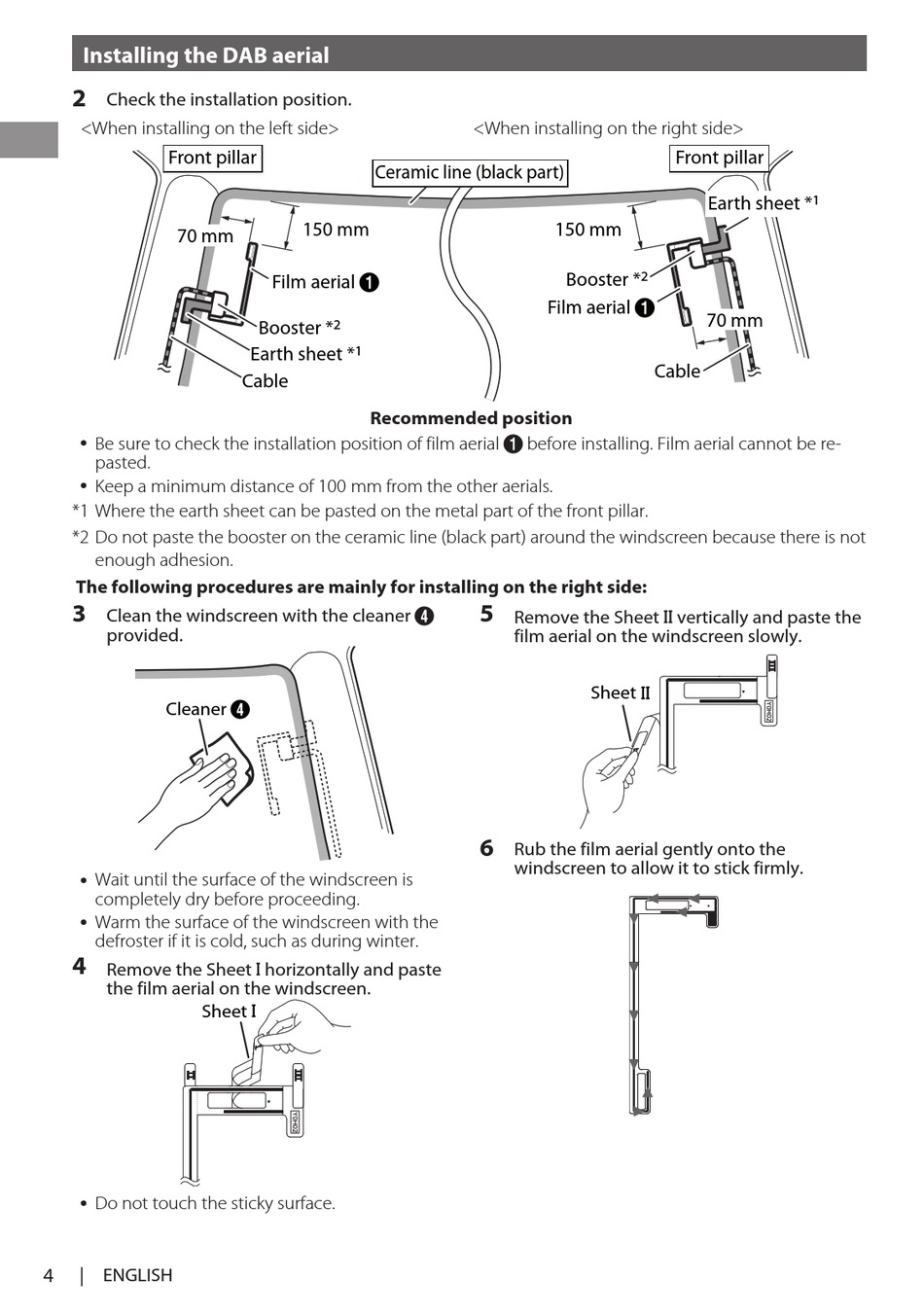

Installing the DAB aerial
2
Check the installation position.
<When installing on the left side>
Front pillar
70 mm
Be sure to check the installation position of film aerial
pasted.
Keep a minimum distance of 100 mm from the other aerials.
*1 Where the earth sheet can be pasted on the metal part of the front pillar.
*2 Do not paste the booster on the ceramic line (black part) around the windscreen because there is not
enough adhesion.
The following procedures are mainly for installing on the right side:
3
Clean the windscreen with the cleaner
provided.
Cleaner D
Wait until the surface of the windscreen is
completely dry before proceeding.
Warm the surface of the windscreen with the
defroster if it is cold, such as during winter.
4
Remove the Sheet horizontally and paste
the film aerial on the windscreen.
Sheet
Do not touch the sticky surface.
4 | ENGLISH
Ceramic line (black part)
150 mm
Film aerial A
Booster * 2
Earth sheet * 1
Cable
Recommended position
<When installing on the right side>
150 mm
Booster * 2
Film aerial A
before installing. Film aerial cannot be re-
5
Remove the Sheet vertically and paste the
film aerial on the windscreen slowly.
Sheet
6
Rub the film aerial gently onto the
windscreen to allow it to stick firmly.
Front pillar
Earth sheet * 1
70 mm
Cable
