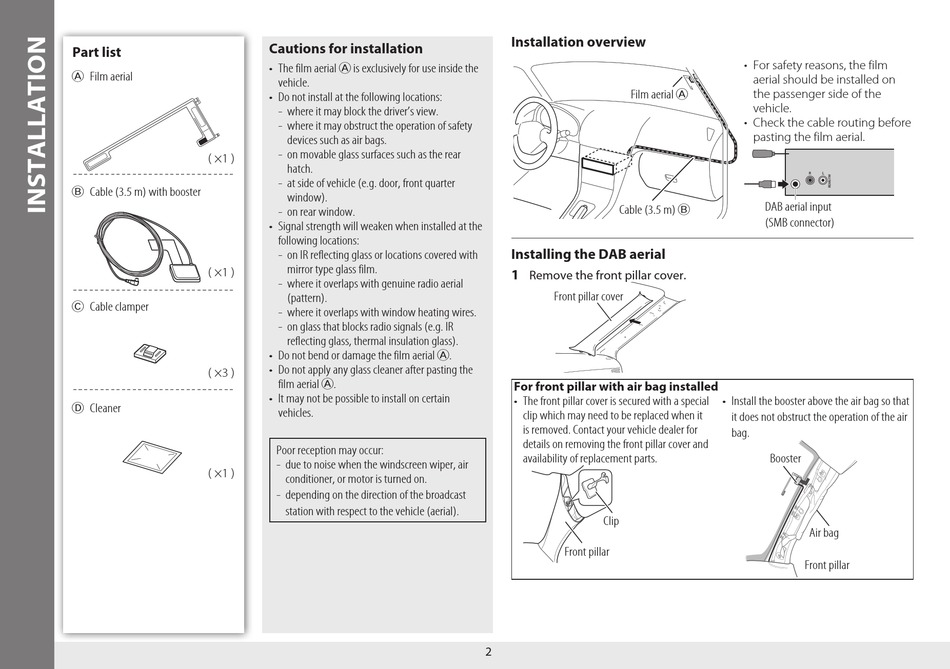

Part list

A Film aerial
( ×1 )
B Cable (3.5 m) with booster
( ×1 )
C Cable clamper
( ×3 )
D Cleaner
( ×1 )
Cautions for installation
• The film aerial A is exclusively for use inside the
vehicle.
• Do not install at the following locations:
- where it may block the driver's view.
- where it may obstruct the operation of safety
devices such as air bags.
- on movable glass surfaces such as the rear
hatch.
- at side of vehicle (e.g. door, front quarter
window).
- on rear window.
• Signal strength will weaken when installed at the
following locations:
- on IR reflecting glass or locations covered with
mirror type glass film.
- where it overlaps with genuine radio aerial
(pattern).
- where it overlaps with window heating wires.
- on glass that blocks radio signals (e.g. IR
reflecting glass, thermal insulation glass).
• Do not bend or damage the film aerial A.
• Do not apply any glass cleaner after pasting the
film aerial A.
• It may not be possible to install on certain
vehicles.
Poor reception may occur:
- due to noise when the windscreen wiper, air
conditioner, or motor is turned on.
- depending on the direction of the broadcast
station with respect to the vehicle (aerial).

Installation overview

Film aerial A
Cable (3.5 m) B
Installing the DAB aerial
1
Remove the front pillar cover.
Front pillar cover
For front pillar with air bag installed
• The front pillar cover is secured with a special
clip which may need to be replaced when it
is removed. Contact your vehicle dealer for
details on removing the front pillar cover and
availability of replacement parts.
Clip
Front pillar
2
• For safety reasons, the film
aerial should be installed on
the passenger side of the
vehicle.
• Check the cable routing before
pasting the film aerial.
DAB aerial input
(SMB connector)
• Install the booster above the air bag so that
it does not obstruct the operation of the air
bag.
Booster
Air bag
Front pillar
