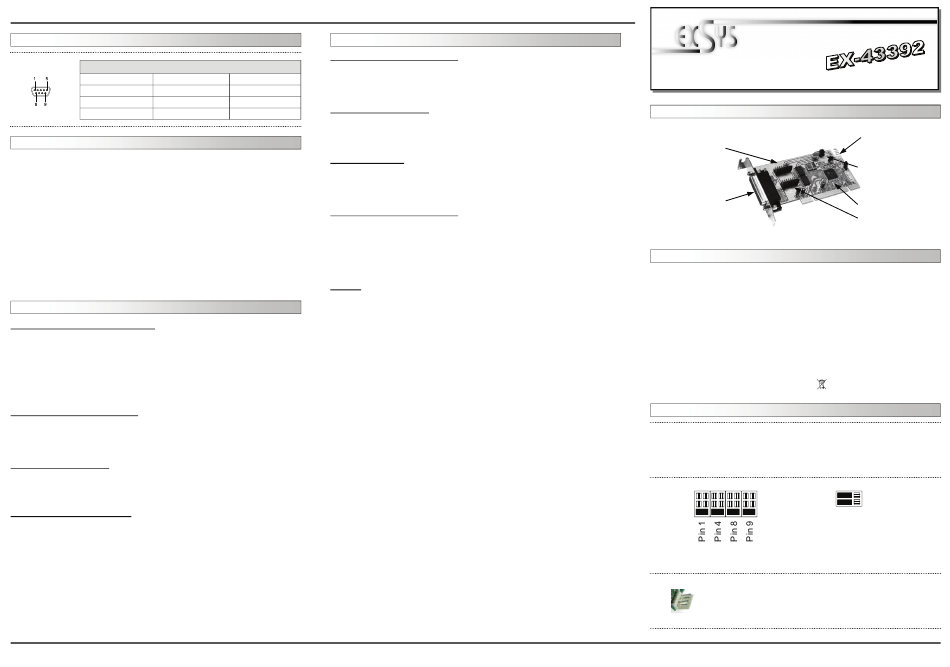

JUMPER SETTING & CONNECTORS:
DB9M:
Serial 9 Pin D-SUB male connector (S1 and S2):
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 9x/ME/2000/XP & Vista:
After starting Windows it recognizes a new "PCI Controller" and open the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system "95_98_ME" "2000" "XP32" "XP64" "Vista32" or "Vista64" into the box for
the Path/Source and click at >next/continue<. Now Windows search for the drivers in
the specified directory. Follow the hardware assistant and finish the installation. If
Windows recognizes other new devices repeat the above described steps. Attention!
Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one or more new "PCI Ports" as sample (COM3). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
Windows Server 2000/2003:
After starting Windows it recognizes a new "PCI Controller" and open the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system for Server 2000: "2000" and for Server 2003: "XP32" or "XP64" into the box
for the Path/Source and click at >next/continue<. Now Windows search for the drivers
in the specified directory. Follow the hardware assistant and finish the installation. If
Windows recognizes other new devices repeat the above described steps. Attention!
Restart Windows in any case after installing the drivers.
5
English English English EX EX EX- - - 43392 43392 43392
DRIVER INSTALLATION :
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under „Ports (COM and LPT)" you should find
Signal Pin Signal
one or more new "PCI Ports" as sample (COM3). If you see this or similar entries the
DTR 7 RTS
card is installed correctly.
8 CTS
CHANGE PORT NUMBER:
DSR 9 RI
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
Windows NT 4.0:
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click
>OK<. Windows NT will now start the setup program and install the driver. Please
Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
oxser 0 PCI". Then click at >I/O-Port< here you should see the entries „D400-D407
oxser 0
for the ports. The I/O addresses can change depends which system and card is in-
stalled. If you see these or similar entry's the card is installed correctly.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
PCI" „D800-D802 oxser 0 PCI" and „DC00-DC1F oxser 0 PCI"
6
English English English
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.0 / 03.12.08
AUFBAU :
JP5: +5V oder +12V
einstellbar auf
den 9 Pin von S1
S1+S2:
44 Pin Buchse für den
Anschluss des Octopus-
Kabel (2 x 9 Pin)
BESCHREIBUNG & TECHNISCHE DATEN :
Die EX-43392 ist eine PCI serielle RS-232 Karte mit zwei seriellen FIFO 16C95x Ports,
für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B. Terminal,
Modem, Plotter usw.). Sie unterstützt den 32 und 64-Bit PCI bzw. PCI-X Bus mit 5 Volt
und 3,3 Volt. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustellen,
da die Einstellungen der Karte vom System (BIOS) und beim Installieren des Betriebs-
systems automatisch vorgenommen werden. Es besteht bei Bedarf die Möglichkeit, +5V
- oder +12V auf einen von vier Pins der beiden 9 Pin Stecker zu legen (POS System).
Kompatibilität: PCI & PCI-X 3,3Volt & 5Volt bei 33Mhz
Betriebs Systeme: WIN 9x/ME/NT4.0/2000/XP/Server 2003/Vista/(Linux vom OS)
Anschlüsse: 1 x 44 Pin Buchse für Octopus Kabel mit 2 x 9 Pin Seriell D-SUB Stecker
Lieferumfang: EX-43392, Treiber CD, Deutsche Anleitung, Standard Bracket
CE
Zertifikate: / FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
Mit der EX-43392 haben Sie die Möglichkeit +5V- oder +12V auf einen der folgenden
vier Pins, des 9 Pin Steckers S1 und S2 zu konfigurieren :
Achtung !! Nur konfigurieren wenn für das Peripheriegerät auch +5Volt oder +12Volt
gebraucht wird. Für normale Anwendungen, Jumper nicht verändern.
JP4 & JP5:
(S1 + S2)
J4: Wenn JP3 auf AUX gestellt ist muss J2 mit dem Stromanschluss vom
1 +5V
2 GND
PC Netzteil verbunden werden! Bitte auf die richtige Polarität achten!
3 GND
Achtung! Stecker nie bei eingeschaltetem PC ein oder ausstecken!
4 +12V
J2: Anschluss vom
PC Netzteil für
+5V oder +12V
Spannung
JP 3: Umschaltung der
Spannung von
PCI-BUS auf
PC-Netzteil
Seriell Chip 16C952
JP4: +5V oder +12V
einstellbar auf den
9 Pin von S2
DE97424562 / WHQL
+5V
+5V JP3:
+12V +12V
Dis PCI AUX
JP3 auf PCI = +5 or +12V
kommt vom PCI BUS
JP3 auf AUX = 5 oder +12V
kommt vom PC Netzteil
