6.2

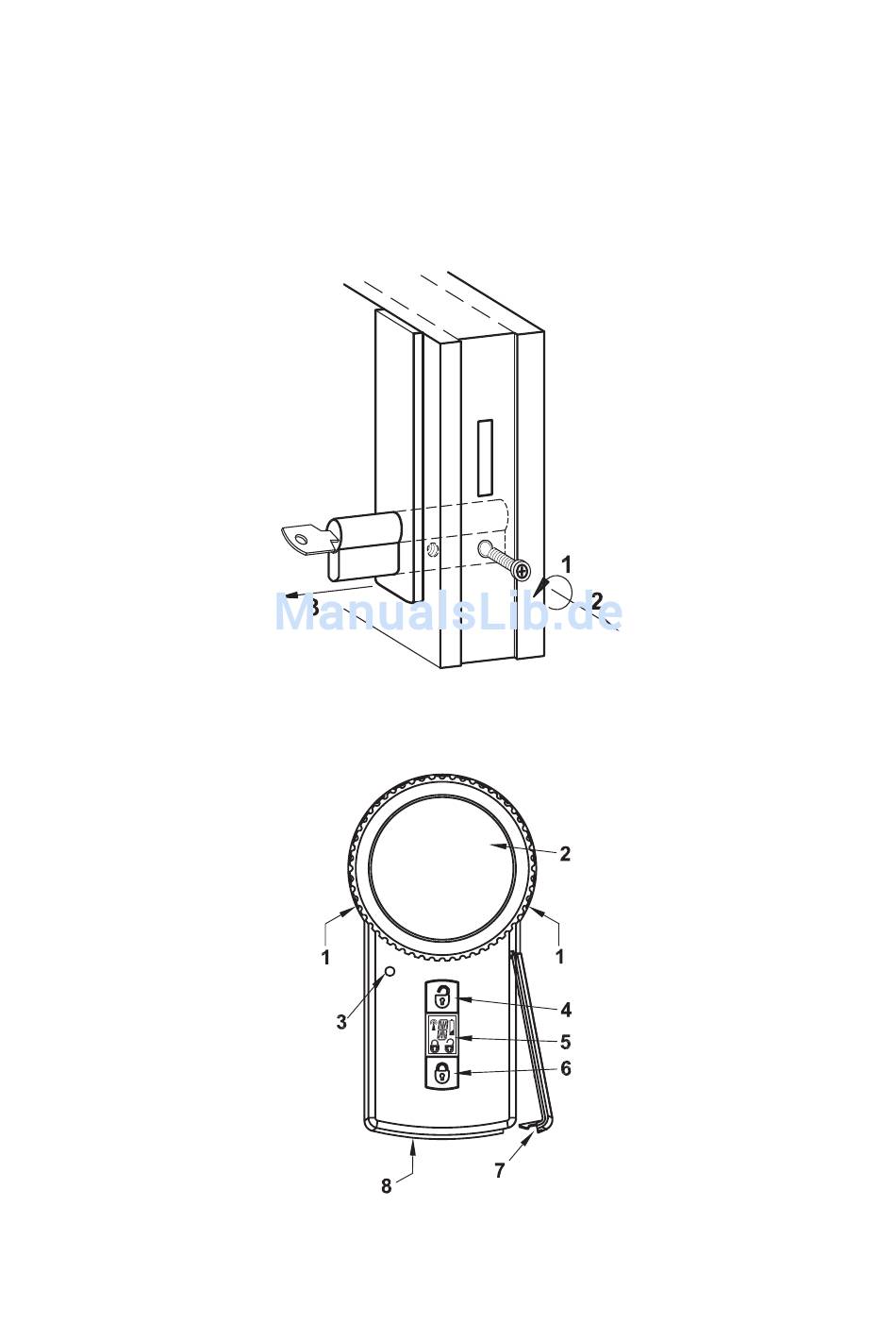

Replacing the lock cylinder

• Open the door.
• Insert a key in the lock cylinder on the inside of the door.
• Turn the fastening screw completely out (1)-(2).
• Move the key slightly to the left or right (clockwise or counter-clockwise)
until the lock cylinder can be pulled out of the lock (3).
• Inserting the new lock cylinder is done in reverse order.
6.3

Installing the drive

Loosen the screws for the base fastener on the left and right on the door lock drive (1).
35
