HomeMatic KeyMatic HM-Sec-Key Bedienungsanleitung Seite 30

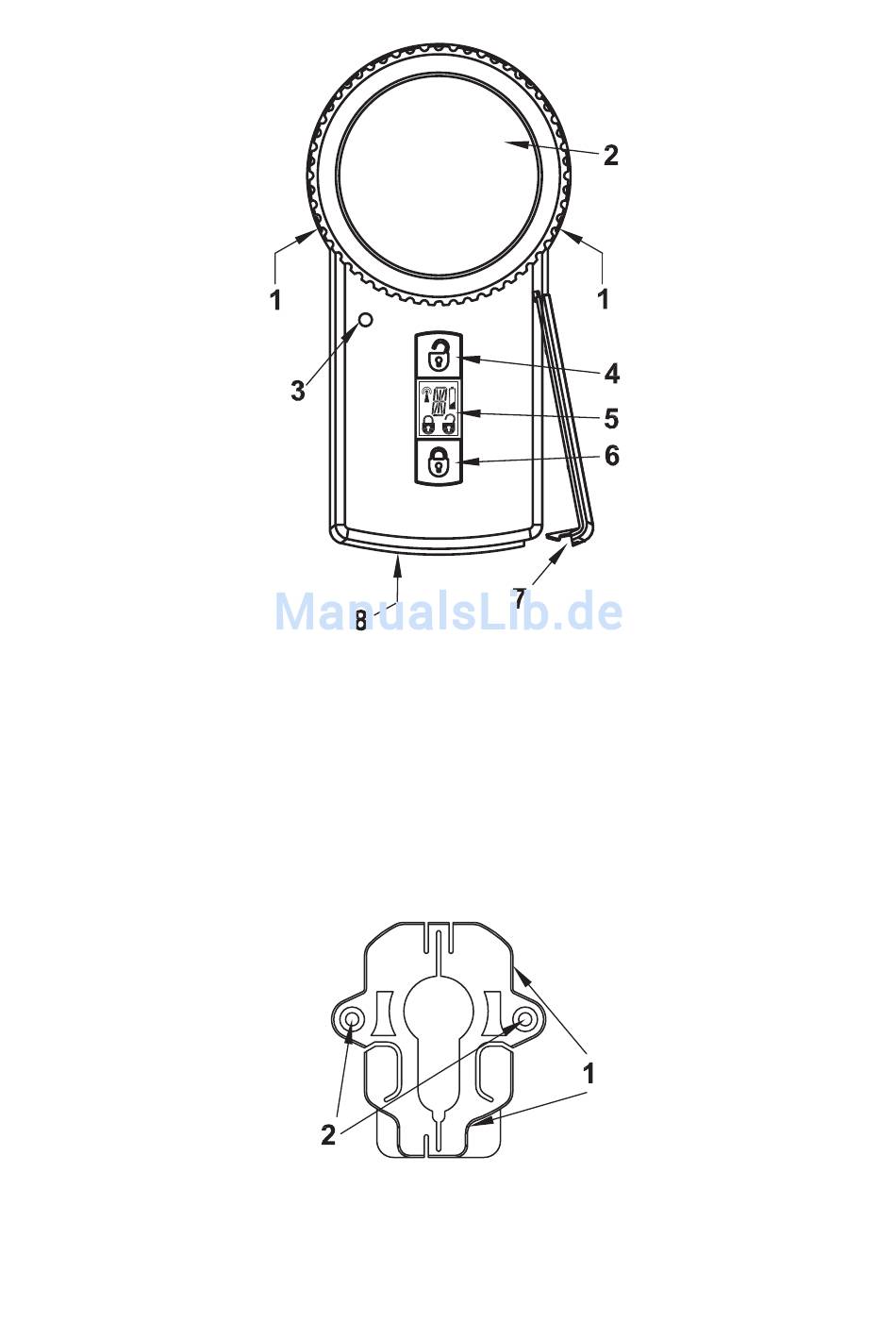

Radio door lock drive:
1 – Screw holes for connecting with the base fastener
2 – Hand-wheel for emergency operation
3 – Setup button
4 – "Unlock" button
5 – Device display
6 – "Lock" button
7 – Battery compartment cover
8 – Connections on the underside of the KeyMatic
Base fastener
1 - Fastening screws for fastening to the lock cylinder
2 – Bore holes for fastening to the door leaf
