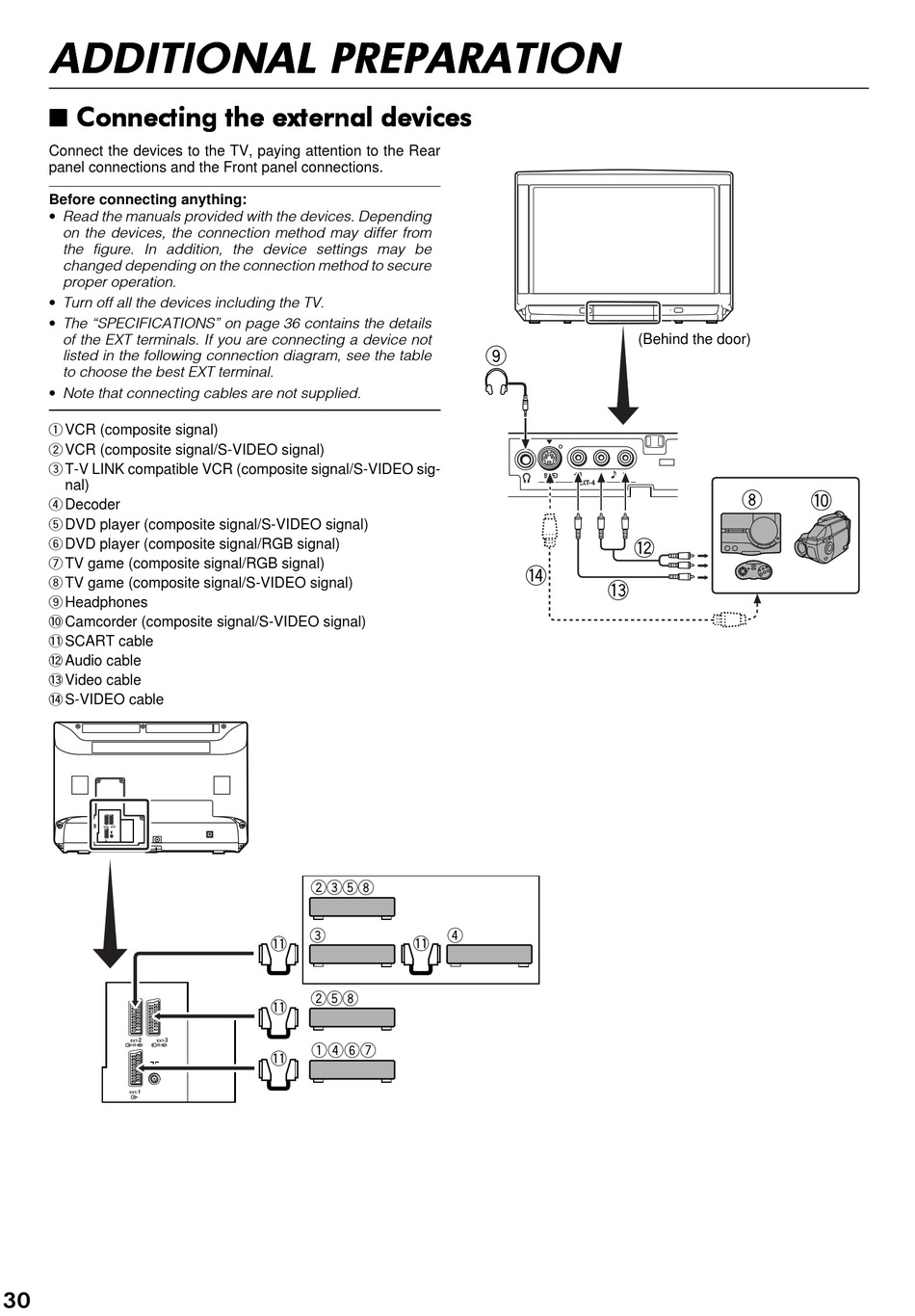

Connect the devices to the TV, paying attention to the Rear
panel connections and the Front panel connections.
Before connecting anything:
• Read the manuals provided with the devices. Depending
on the devices, the connection method may differ from
the figure. In addition, the device settings may be
changed depending on the connection method to secure
proper operation.
• Turn off all the devices including the TV.
• The "SPECIFICATIONS" on page 36 contains the details
of the EXT terminals. If you are connecting a device not
listed in the following connection diagram, see the table
to choose the best EXT terminal.
• Note that connecting cables are not supplied.
1 VCR (composite signal)
2 VCR (composite signal/S-VIDEO signal)
3 T-V LINK compatible VCR (composite signal/S-VIDEO sig-
nal)
4 Decoder
5 DVD player (composite signal/S-VIDEO signal)
6 DVD player (composite signal/RGB signal)
7 TV game (composite signal/RGB signal)
8 TV game (composite signal/S-VIDEO signal)
9 Headphones
0 Camcorder (composite signal/S-VIDEO signal)
- SCART cable
= Audio cable
~ Video cable
! S-VIDEO cable
EXT- 2 3
EXT-
S S
EXT- 1
2 3
EXT- EXT-
S S
1
EXT-
63
(Behind the door)
