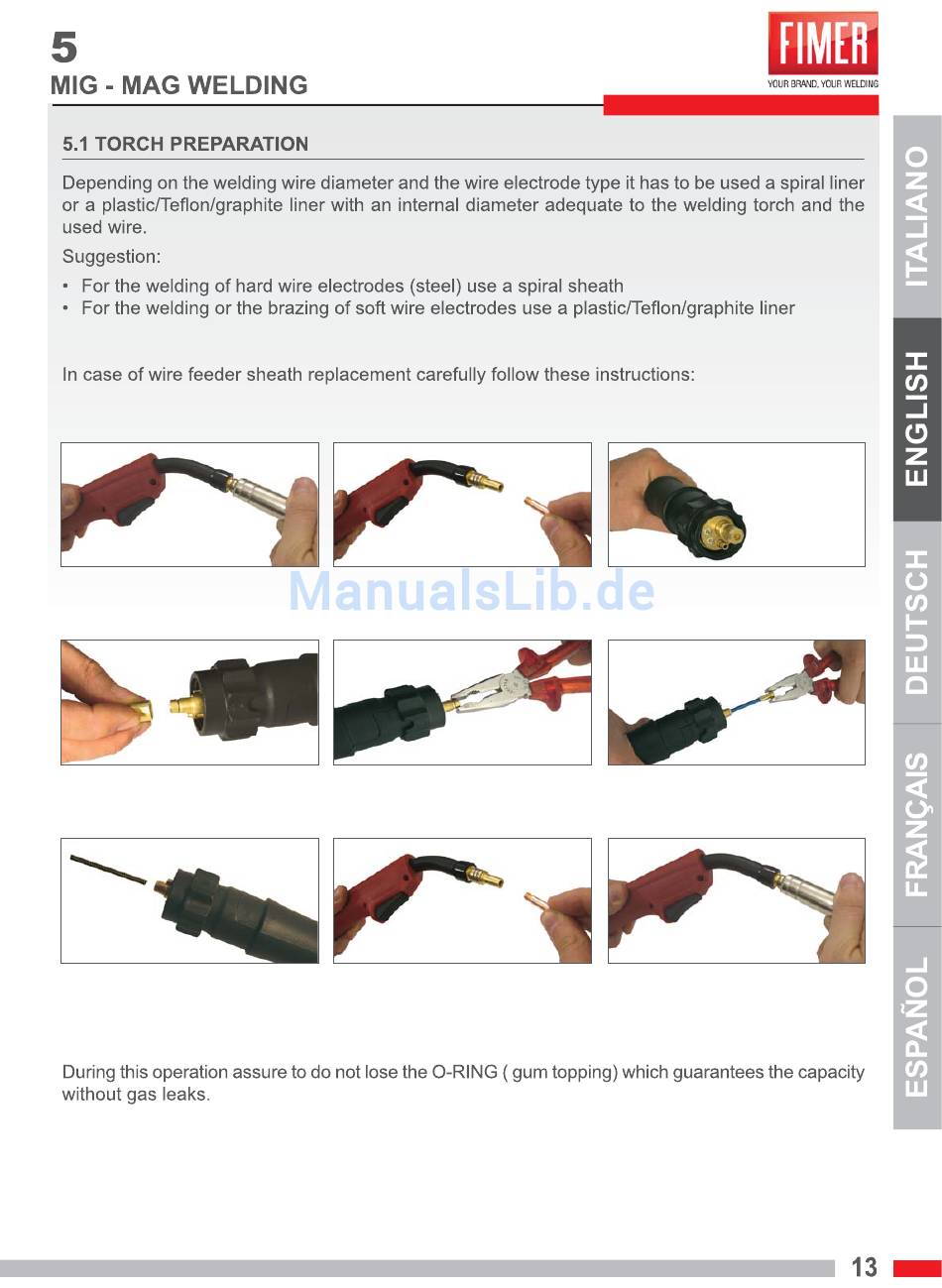

Torch side: remove the gas nozzle
(A)
D
Unscrew the termination nut (D,E)
G
Insert the new sheath and push it
deep inside (G)
B
Unscrew the wire guide tip (B)
E
Complete the sheath extraction (F)
B
Screw in again the wire guide tip on
the torch
C
Connector side (C)
F
Grab the sheath end by a nipper
and start to extract it (F)
A
Complete the replacement of the
sheath by using gas nipple (A)
