Getting started

After you have set up all connections between the VS-2
(local and remote) and the VGA-port of your computer, please proceed as
follows:
Connect the Power Supply 15D3-09MP (1,7 / +9V DC) with the VS-
plus
2 (A green LED on the CPU-side indicates, if a correct power supply
has been established)
Switch on monitor
Switch on CPU
5

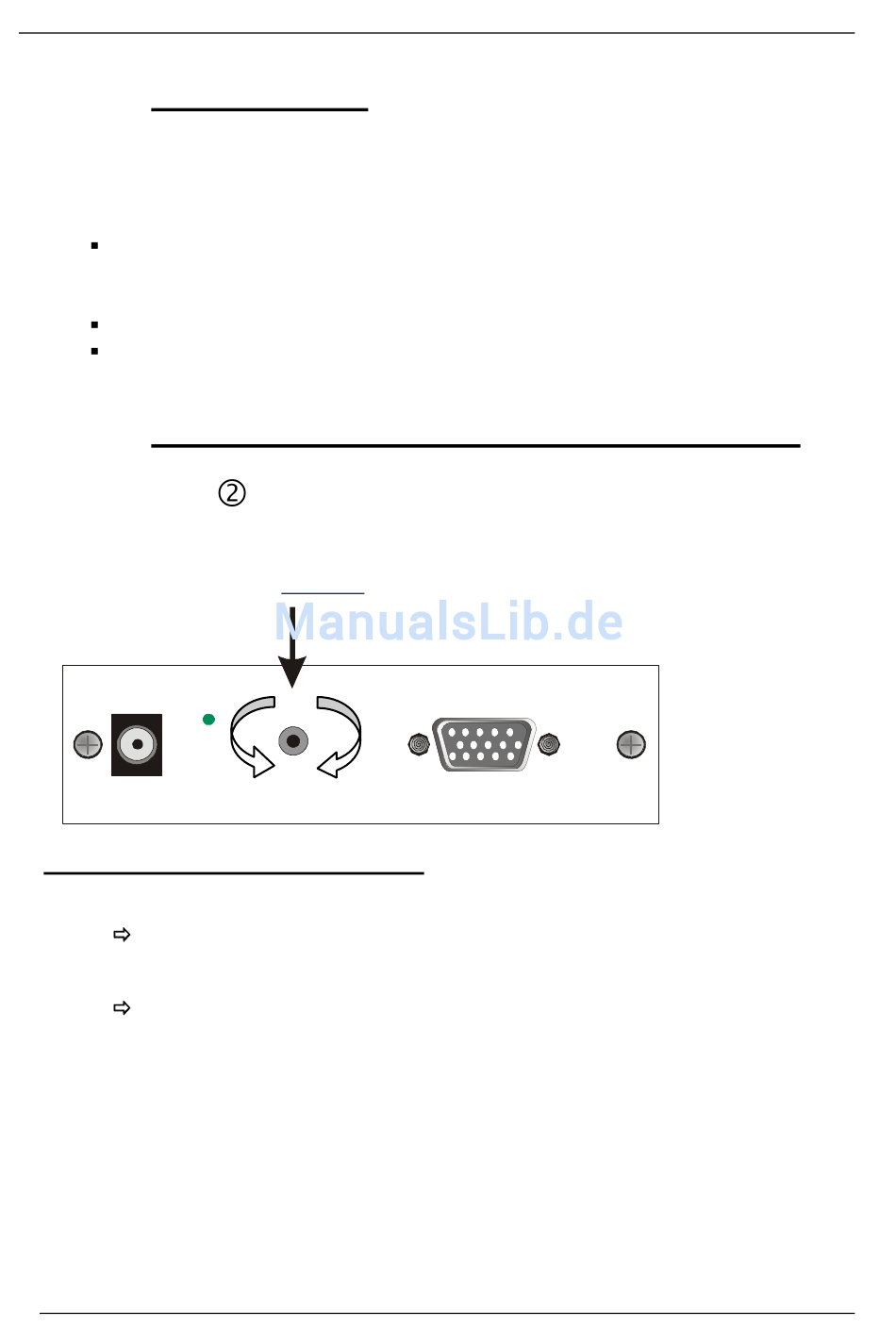

Tuning the amplifiying of the remote monitor

Over a regulator
adjusted (remote tuning).
Mode of operation of the regulator:
Turn left (anti-clockwise)
Lower amplifying (short cable)
Turn right (clockwise)
higher amplifying (long cable)
Since the needed amplifying depends on various parameter, no guideline can
exactly be given. The best picture can be tuned by appropriate turning of the
regulator.
If you do the installation by yourself, optimize the picture before installing the
cable, since you cannot tune a view the remote monitor at the same time.
the video amplifiying of the remote monitor can be
Remote
tuning
page 6
Operation Instructions Video-Splitter 2
plus
plus
and the monitors
