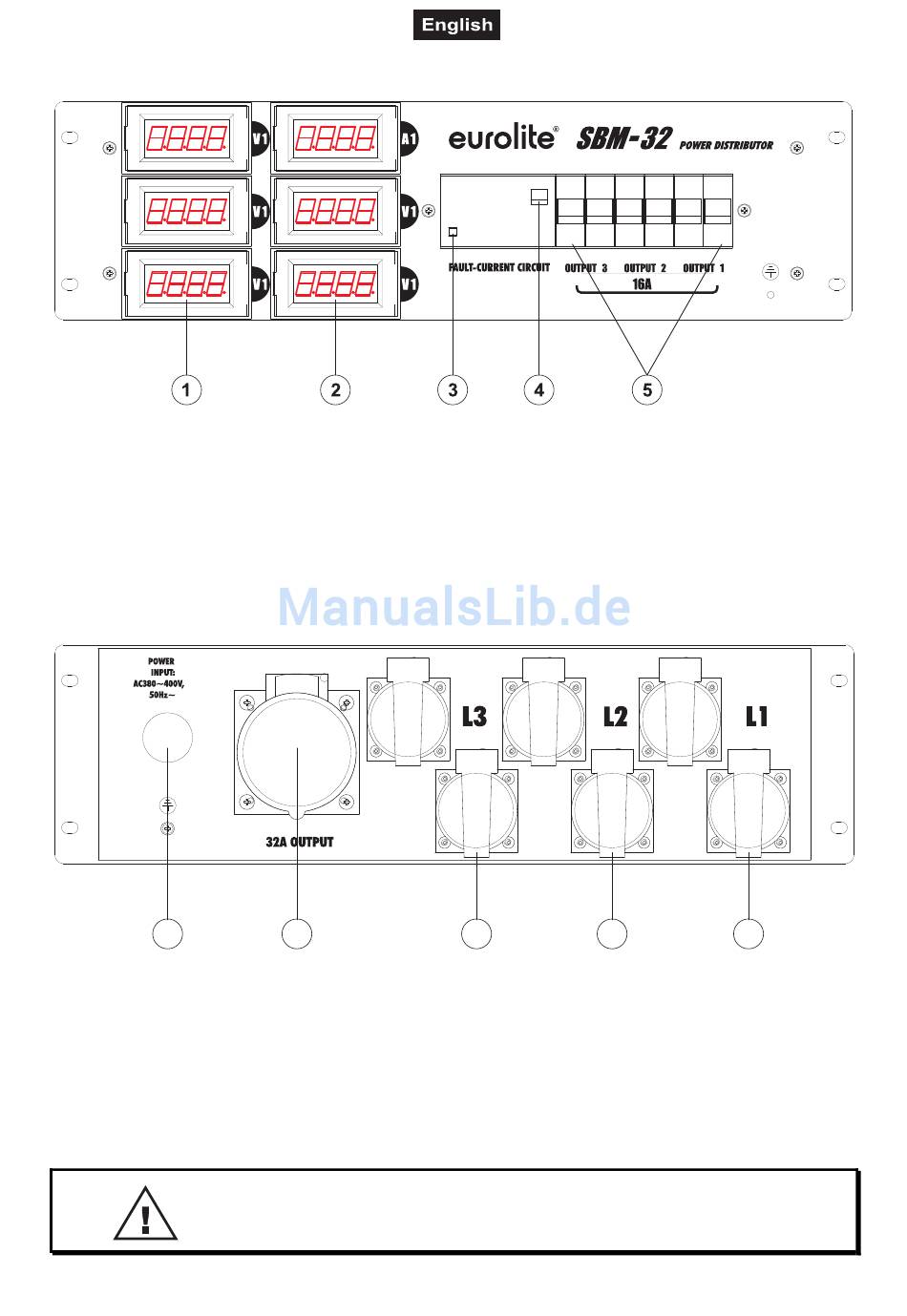

4.2 Frontpanel

(1) Volt meter
(2) Ampere meter
(3) Circuit breaker for power distribution sockets (rearpanel)
(4) Test button
(5) Residual Current Device (RCD)

4.3 Rearpanel

6
(6) 32 A three-phase-current input plug
(7) 32 A three-phase-current output socket
(8) Phase 3 power outlet
(9) Phase 2 power outlet
(10) Phase 1 power outlet

5. INSTALLATION

Please consider the DIN 15560 and the respective national norms during the
installation! The installation must only be carried out by an authorized dealer!
6
7

DANGER TO LIFE!

13/15
