DESCRIPTION OF THE DEVICE

Features

Professional DMX Spot with 18 x 8 W quadcolor LEDs
• Equipped with twelve 4in1 LEDs in the colors red, green, blue and white and six in the colors red, green,
blue and amber
• Through the close chip placement of the multichip technology, an exquisite color blend, even with short
distances to the illuminated surface, is guaranteed
• Operable in Stand-Alone Mode or DMX standard
• Functions: Static colors, RGBAW color blend, color change, color fade, internal programs, dimmer and
strobe settings via DMX; Master/Slave
• 3, 5, 7, 8 channel DMX mode selectable
• Sound-control via built-in microphone
• Comfortable addressing and setting via control panel with LED display and three operating buttons
• Easy installation
• Locking possibility at the mounting bracket
• Available in alu and black
• Ready for connection via power cord with safety plug
• DMX512 control possible via any commercial DMX-controller

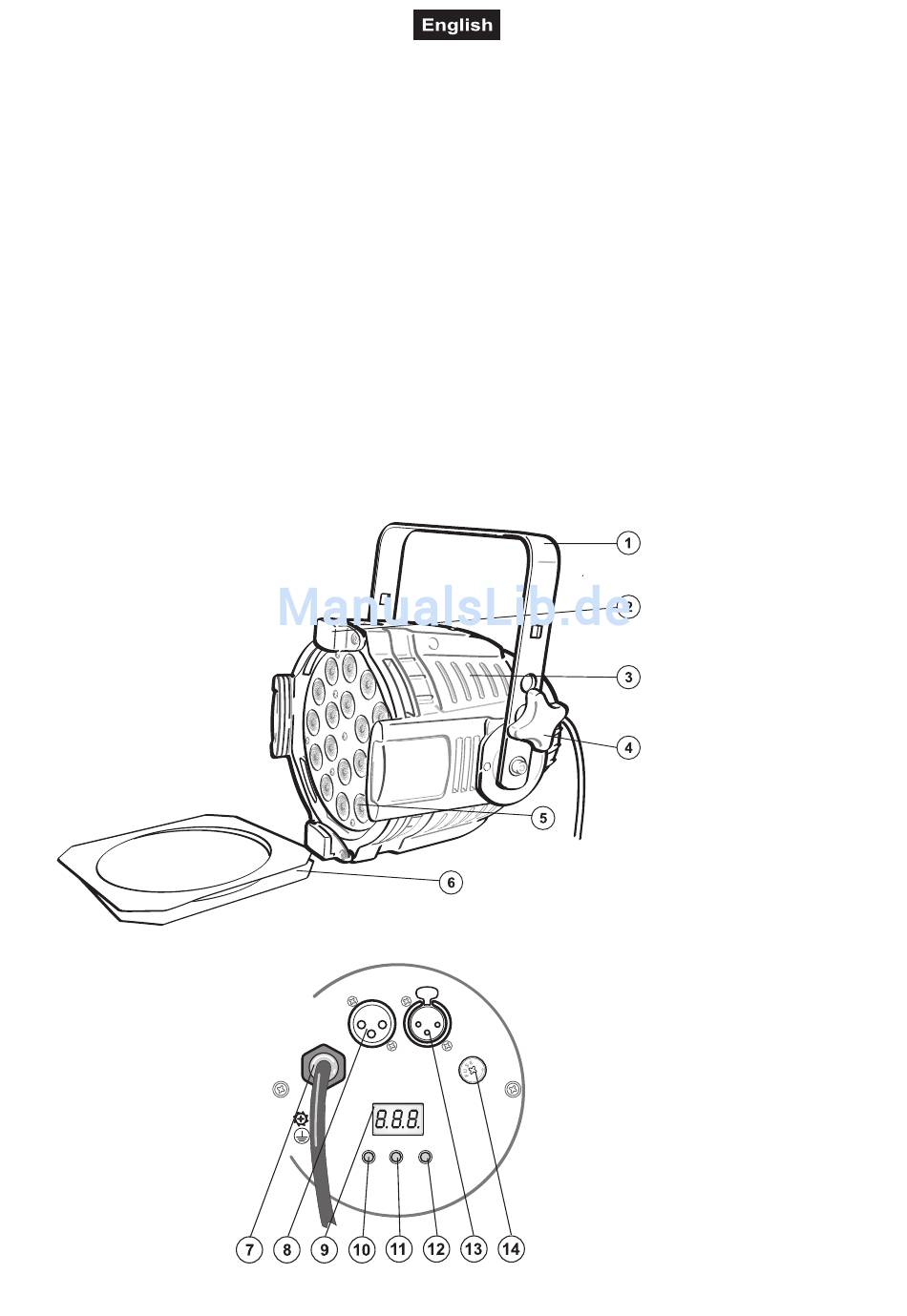

Overview

20/28
(1) Mounting bracket
(2) Color filter holder
(3) Housing
(4) Fixation screw
(5) Quadcolor LEDs
(6) Color filter frame
(7) Power supply
(8) DMX-In socket
(9) Display
(10) Mode button
(11) Up button
(12) Down button
(13) DMX-Out socket
(14) Fuseholder
