Quick Start
Tilt
Grasp both sides of the monitor screen with your hands
and adjust the tilt as desired (Figure TS.1).
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Remove the connector cover, hinge cover
and cable cover (Figure R.1).
2. Disconnect all cables.
3. Place monitor face down
on a non-abrasive
surface ( place the screen
on a 32 mm platform so
that hole of stand match to
screw location).
(Figure R.2).
4. Remove the 4 screws
connecting the
monitor to the stand
and lift off the stand assembly
(Figure R.2) the monitor is
now ready for mounting in an
alternate manner.
5. Connect the AC cord and signal
cable to the back of the monitor.
6. Reverse this process to
reattach stand.
Caution: To fulfil the safety requirements
the monitor must be mounted to
an arm which guaranties the
necessary stability under
consideration of the weight of the
monitor. The LCD monitor shall
only be used with an approved
arm (e.g. GS mark).
LCD1830.wpc
–continued

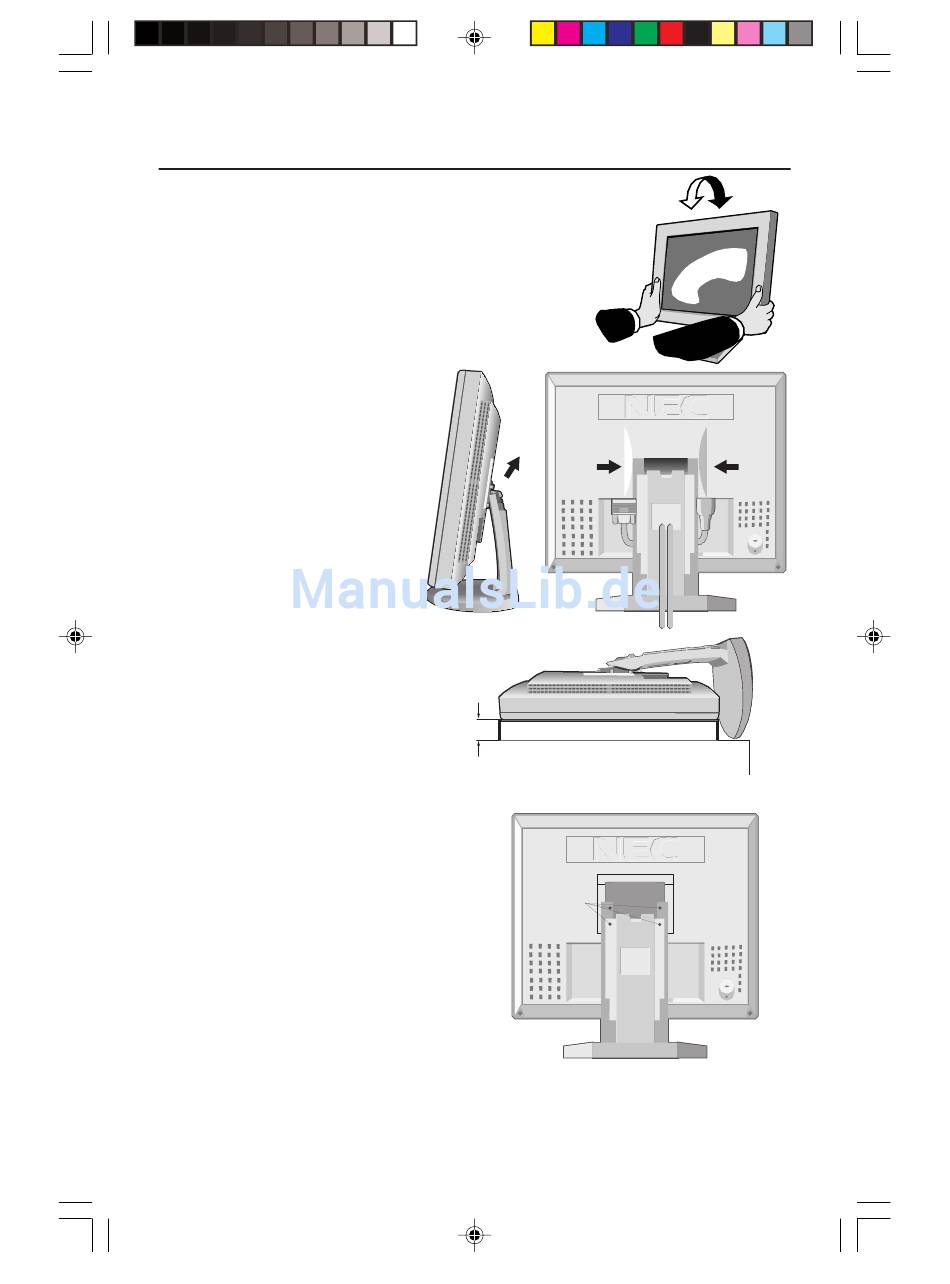

Figure R.1
