Formech 686 Aufstellungs-, Bedienungs Und Wartungsanleitung Seite 34

Werkzeuge
Die Grundplatte muss an allen Seiten 4 mm kleiner
sein, als die Formungsöffnung der Maschine, zum
Bsp. Formungsöffnung 280 mm x 430 mm =
Grundplattengrösse 276 mm x 426 mm.

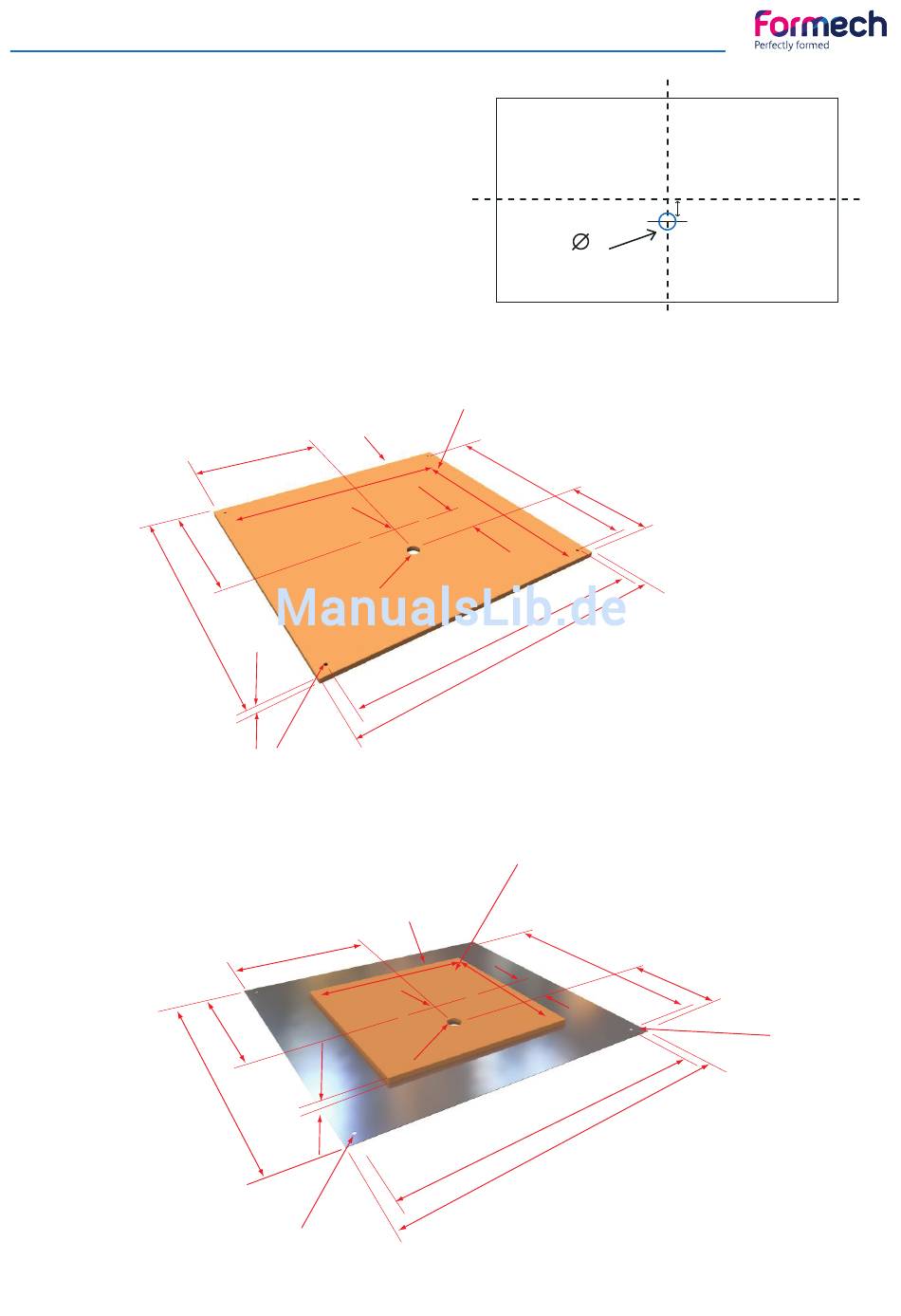

686 standard baseboard
Use four M6 cap head set screws
or M6 CSK machine screws x 19mm (3/4")
long to bolt the board to the table (platen)
686 reducing window baseboard
Use four M6 cap head set screws
or M6 CSK machine screws x 19mm (3/4")
long to bolt the board to the table (platen)
R2mm (0.078")radius on
top edge all round to stop
MDF from flaking
320.5mm (12.61")
Centre of board
position
307.5mm (12.10")
R15mm (0.59")
615mm (24.21")
12mm (1/2")
7mm (.275") Diameter holes
320.5mm (12.61")
Centre of board
position
307.5mm (12.10")
R15mm (0.59")
615mm (24.21")
12mm (1/2")
7mm (.275") Diameter holes
Make board 4mm ( 0.15") smaller
Make board 4mm ( 0.15") smaller
than fill size aperture front to back
than reducing window aperture in
both directions
and left to right
92.5mm (3.64")
596mm (23.46")
641mm (25.23")
686 standard base board
Make board 4mm ( 0.15") smaller
than reducing window aperture front
to back and left to right
R2mm (0.078")radius on
top edge all round to stop
MDF from flaking
596mm (23.46")
34
94mm
30mm
570mm (22.44")
213.5mm (8.40")
570mm (22.44")
213.5mm (8.40")
92.5mm (3.64")
Attach MDF baseboard to steel plate
with screws or high strength double sided
641mm (25.23")
tape
686 reducing window base board
Bedienungsanleitung - Formech 686PT - Rev 8.8
1mm (0.039") mild steel
