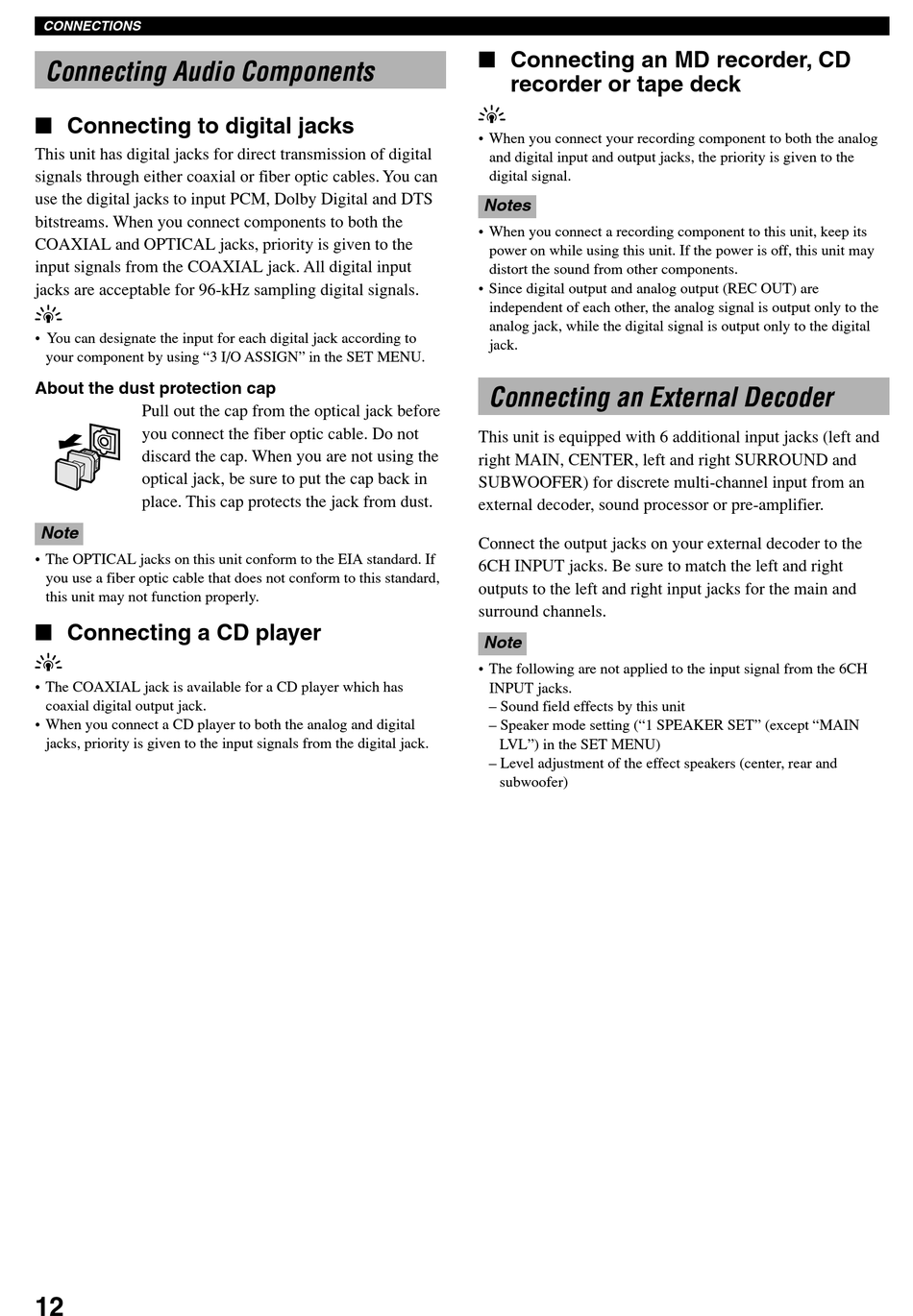

CONNECTIONS

Connecting Audio Components

I Connecting to digital jacks
This unit has digital jacks for direct transmission of digital
signals through either coaxial or fiber optic cables. You can
use the digital jacks to input PCM, Dolby Digital and DTS
bitstreams. When you connect components to both the
COAXIAL and OPTICAL jacks, priority is given to the
input signals from the COAXIAL jack. All digital input
jacks are acceptable for 96-kHz sampling digital signals.
y
• You can designate the input for each digital jack according to
your component by using "3 I/O ASSIGN" in the SET MENU.
About the dust protection cap
Pull out the cap from the optical jack before
you connect the fiber optic cable. Do not
discard the cap. When you are not using the
optical jack, be sure to put the cap back in
place. This cap protects the jack from dust.
Note
• The OPTICAL jacks on this unit conform to the EIA standard. If
you use a fiber optic cable that does not conform to this standard,
this unit may not function properly.
I Connecting a CD player
y
• The COAXIAL jack is available for a CD player which has
coaxial digital output jack.
• When you connect a CD player to both the analog and digital
jacks, priority is given to the input signals from the digital jack.
12
I Connecting an MD recorder, CD
recorder or tape deck
y
• When you connect your recording component to both the analog
and digital input and output jacks, the priority is given to the
digital signal.
Notes
• When you connect a recording component to this unit, keep its
power on while using this unit. If the power is off, this unit may
distort the sound from other components.
• Since digital output and analog output (REC OUT) are
independent of each other, the analog signal is output only to the
analog jack, while the digital signal is output only to the digital
jack.

Connecting an External Decoder

This unit is equipped with 6 additional input jacks (left and
right MAIN, CENTER, left and right SURROUND and
SUBWOOFER) for discrete multi-channel input from an
external decoder, sound processor or pre-amplifier.
Connect the output jacks on your external decoder to the
6CH INPUT jacks. Be sure to match the left and right
outputs to the left and right input jacks for the main and
surround channels.
Note
• The following are not applied to the input signal from the 6CH
INPUT jacks.
– Sound field effects by this unit
– Speaker mode setting ("1 SPEAKER SET" (except "MAIN
LVL") in the SET MENU)
– Level adjustment of the effect speakers (center, rear and
subwoofer)
