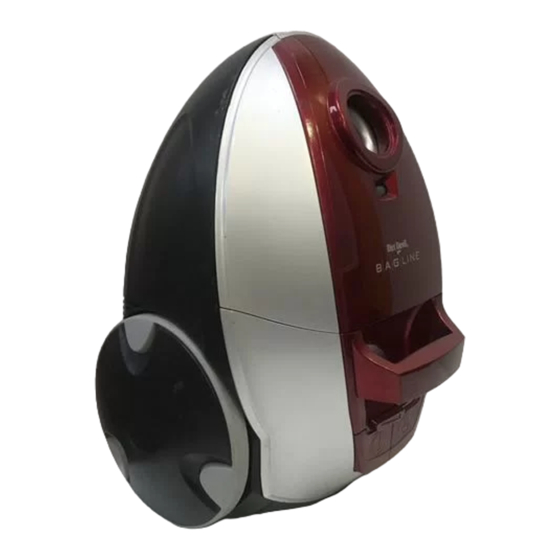

Übersicht über Ihren M7020 Übersicht über Ihren M7020 Vielen Dank! Wir danken Ihnen für den Kauf des M7020 und wünschen Ihnen viel Freude mit dem Gerät! Geräteteile/Lieferumfang 1 Handgriff 14 Ausblasfilter-Abdeckung 2 Nebenluftregler 15 Stromkabel mit Stecker 3 Saugschlauch 16 Teleskoprohr 4 Zubehörhalterung 17 Teleskoprohr-Arretierung 5 Polsterdüse...
1 Sicherheitshinweise Sicherheitshinweise 1.1 zur Bedienungsanlei- Lesen Sie diese Bedienungsanleitung vollständig durch, tung bevor Sie mit dem Gerät arbeiten. Bewahren Sie die Anleitung gut auf. Falls Sie das Gerät an Dritte weitergeben, geben Sie die Bedienungsanleitung mit. Die Nichtbeachtung dieser Anleitung kann zu schwe- ren Verletzungen oder Schäden am Gerät führen.
1 Sicherheitshinweise 1.4 zu Kindern Lassen Sie das Gerät nicht unbeaufsichtigt und ver- wenden Sie es mit größter Vorsicht, wenn Kinder oder Per- sonen, die die Gefahren nicht einschätzen können, in der Nähe sind. Kinder oder Personen, die die Gefahren nicht einschät- zen können, dürfen das Gerät nicht benutzen.
2 Auspacken und Montieren Auspacken und Montieren 2.1 Auspacken 1. Packen Sie das Gerät und alle Zubehörteile aus. 2. Überprüfen Sie den Inhalt auf Vollständigkeit. Informa- tionen zum Lieferumfang Seite 4, „Übersicht über Ihren M7020“. ACHTUNG: Transportieren/versenden Sie das Gerät grundsätzlich immer in der Originalverpackung, damit es keinen Scha- den nimmt.
2 Auspacken und Montieren 5. Stecken Sie die Zubehörhalterung (Abb. 5/1) unterhalb der Teleskoprohr-Arretierung auf das Teleskoprohr (Abb. 5/2). Schieben Sie dann Möbelbürste (Abb. 5/3), Fugendüse (Abb. 5/4) und Polsterdüse (Abb. 5/5) auf die Aufnahmevorrichtungen. Ihr Bodenstaubsauger ist jetzt einsatzbereit. Abb.
3 Bedienung Zum Aufsetzen der Düsen gehen Sie wie folgt vor: 1. Schalten Sie das Gerät aus und ziehen Sie den Stecker aus der Steckdose. 2. Ziehen Sie die vorhandene Düse vom Teleskoprohr ab. 3. Stecken Sie die gewünschte Düse auf das untere Ende des Teleskoprohrs oder bei Bedarf direkt auf den Hand- griff (Abb.
Seite 11
3 Bedienung 1. Stecken Sie die gewünschte Düse auf, Kapitel 2.2, „Montieren“ bzw. Kapitel 2.3, „Weitere Düsen (Zubehör) verwenden“. 2. Ziehen Sie das Kabel am Stecker bis zur gelben Mar- kierung (Abb. 10/1) heraus. WARNUNG: Falls die rote Markierung (Abb. 10/2) sichtbar ist, ziehen Sie das Kabel mithilfe der Kabelaufrolltaste (Abb.
3 Bedienung 3.2 Ausschalten und 1. Schalten Sie den Bodenstaubsauger am Ein-/Aus- Stromkabel aufrollen Schalter (Abb. 14/1) aus und ziehen Sie den Stecker aus der Steckdose. 2. Behalten Sie den Stecker in der Hand. WARNUNG: Beim Einziehen des Stromkabels kann dieses umher- schlingern, zur Stolperfalle werden oder Gegenstände umreißen.
4 Wartung Wartung 4.1 Staubfilterbeutel wech- Wechseln Sie den Staubfilterbeutel spätestens dann, seln wenn die Staubbeutelwechsel-Anzeige (Abb. 1/9) „Rot“ an- zeigt oder die Saugwirkung nachlässt. ACHTUNG: Bevor Sie den Staubfilterbeutel wechseln, schalten Sie das Gerät aus und beachten Sie die Hinweise unter Kapitel 3.2, „Ausschalten und Stromkabel aufrollen“.
4 Wartung 7. Setzen Sie dann den Staubbeutelhalter (Abb. 20/1) wieder in den Staubraum ein. Schieben Sie dafür die Führung des Staubbeutelhalters (Abb. 20/2) gerade in die dafür vorgesehene Schiene (Abb. 20/3) ein, bis die Verriegelung für den Staubraumdeckel (Abb. 20/4) zu- rückgeklappt wird.
4 Wartung 4.3 Motorschutzfilter 1. Schalten Sie das Gerät aus und entnehmen Sie den wechseln Staubbeutelhalter samt Staubfilterbeutel, wie unter Kapitel 4.1, „Staubfilterbeutel wechseln“, Schritte 1-4, beschrieben. 2. Ziehen Sie den Motorschutzfilter (Abb. 22/1) nach oben aus der Aufnahme (Abb. 22/2). 3.
5 Fehlerbehebung Fehlerbehebung ® Bevor Sie das Gerät an den Royal Appliance-Kundendienst einschicken, überprüfen Sie anhand der folgenden Tabelle, ob Sie den Fehler selbst beseitigen können. WARNUNG: Verwenden Sie niemals ein defektes Gerät! Bevor Sie auf Fehlersuche gehen, schalten Sie das Gerät aus und ziehen Sie den Netzstecker, Kapitel 3.2, „Ausschalten und Stromkabel aufrollen“.
6 Reinigung Reinigung WARNUNG: Bevor Sie das Gerät reinigen, schalten Sie das Gerät aus und ziehen Sie den Netzstecker, Kapitel 3.2, „Ausschalten und Stromkabel aufrollen“. 6.1 Gehäuse reinigen Reinigen Sie das Gehäuse ausschließlich mit einem leicht angefeuchteten Tuch. Verwenden Sie keine Reinigungsmittel, Scheuermittel oder Alkohol, da diese das Gehäuse beschädigen können.
9 Garantie Garantie 9.1 Garantiebedingungen Wir übernehmen für das von uns vertriebene Gerät eine Garantie von 24 Monaten ab Kaufda- tum. Innerhalb dieser Garantiezeit beseitigen wir nach unserer Wahl durch Reparatur oder Austausch des Gerätes oder des Zubehörs (Schäden an Zubehörteilen führen nicht automatisch zum Um- tausch des kompletten Gerätes) unentgeltlich alle Mängel, die auf Material- oder Herstellungsfehlern beruhen.
An overview of your M7020 An overview of your M7020 Many thanks! We hope you enjoy using the M7020 and we would like to thank you for your purchase! Appliance parts/scope of delivery 1 Handle 14 Exhaust filter cover 2 Secondary air controller 15 Power cable with plug 3 Suction hose 16 Telescopic tube...
Seite 21
List of contents 1 Safety instructions..............22 Regarding the operating manual ................. 22 Regarding the instructions used .................. 22 Regarding the power supply ..................22 Regarding children ..................... 23 Regarding intended use ....................23 If the appliance is defective ..................23 2 Unpacking and assembly............
1 Safety instructions Safety instructions 1.1 Regarding the Read this operating manual through completely before operating manual working with the appliance. Keep the operating manual safe. If you pass the appliance on to a third party, give them the operating manual as well. Non-compliance with these instructions can lead to serious injuries or damage to the appliance.
1 Safety instructions 1.4 Regarding children Never leave the appliance unattended, and use it with the greatest of care if children or persons who cannot assess the risks are nearby. Children or persons who cannot assess the risks may not use the appliance. Store it so it is inaccessible. Packaging material must not be used to play with.
2 Unpacking and assembly Unpacking and assembly 2.1 Unpacking 1. Unpack the appliance and all accessory parts. 2. Check the contents are all there. Information regarding the scope of delivery Page 20, ”An overview of your M7020“. ATTENTION: Always transport/send the appliance in its original packaging so that it does not become damaged.
2 Unpacking and assembly 5. Push the accessories mount (Fig. 5/1) onto the telescopic tube (Fig. 5/2) below the telescopic tube lock. Then push the furniture brush (Fig. 5/3), crevice nozzle (Fig. 5/4) and upholstery nozzle (Fig. 5/5) onto the holders. Your cylinder vacuum cleaner is now ready to use.
3 Operating Proceed as follows to attach the nozzles: 1. Switch the appliance off and pull the plug out of the socket. 2. Remove the existing nozzle from the telescopic tube. 3. Push the desired nozzle onto the lower end of the telescopic tube or if necessary directly onto the handle (Fig.
3 Operating 1. Push on the desired nozzle, Chapter 2.2, "Assembly" Chapter 2.3, "Using other nozzles (accessories)". 2. Remove the cable, by holding the plug, until the yellow mark is reached (Fig. 10/1). WARNING: If the red mark (Fig. 10/2) is visible, use the cable retract button (Fig.
3 Operating 3.2 Switching off and 1. Switch off the cylinder vacuum cleaner using the on/off retracting the power switch (Fig. 14/1) and pull the plug out of the socket. cable 2. Keep the plug in your hand. WARNING: The power cable can whip around when being pulled in, it can also trip you or somebody else up or knock down objects.
4 Maintenance Maintenance 4.1 Changing the dust Change the dust filter bag at the latest when the dust filter bag bag change indicator (Fig. 1/9) lights up "red" or when the suction power drops. ATTENTION: Before you change the dust filter bag, switch off the appliance and observe the instructions under Chapter 3.2, "Switching off and retracting the power cable".
4 Maintenance 7. Then reinsert the dust bag holder (Fig. 20/1) into the dust chamber. Push the guide of the dust bag holder (Fig. 20/2) straight into the rail provided for this purpose (Fig. 20/3) to do so, until the interlock for the dust compartment cover (Fig.
4 Maintenance 4.3 Changing the 1. Switch off the appliance and remove the dust bag protective motor filter holder with dust filter bag, as described under Chapter 4.1, "Changing the dust filter bag", steps 1-4. 2. Pull the protective motor filter (Fig. 22/1) up out of the receptacle (Fig.
5 Correcting malfunctions Correcting malfunctions ® Before sending the appliance to Royal Appliance Customer Services, use the following table to check whether you can correct the malfunctions yourself. WARNING: Never use a defective appliance! Before starting to troubleshoot, switch the appliance off and pull out the mains plug, Chapter 3.2, "Switching off and retracting the power cable".
6 Cleaning Cleaning WARNING: Before you clean the appliance, switch off the appliance and remove the mains plug, Chapter 3.2, "Switching off and retracting the power cable". 6.1 Cleaning the housing Only clean the housing with a slightly damp cloth. Do not use any cleaning agent, scouring agent or alcohol as these can damage the housing.
9 Warranty Warranty 9.1 Warranty conditions We offer a warranty of 24 months from the date of purchase for the appliances we sell. Within this warranty period, we will remove all defects free of charge that are due to material or manufacturing faults, either by repair work or replacing the appliance or accessories, at our discretion (damage to accessory parts does not automatically lead to the entire appliance being replaced).
Seite 36
Royal Appliance Int. GmbH International Service Sona France Royal Appliance Espana, SL Z.E.S. Goes B.V. 21 rue Eugene Sue Royal, Dirt Devil, Stellar T.a.v. afd. Service F-94700 Maisons Alfort C/ Jazmin, 66 - 3° Pearyweg 1 Tel: +33 1 43 78 00 42...
