Anti-theft device 1: T-bar lock
The Visualizer can be fixed with a
can not be stolen. Follow the instructions from the cable lock manual.

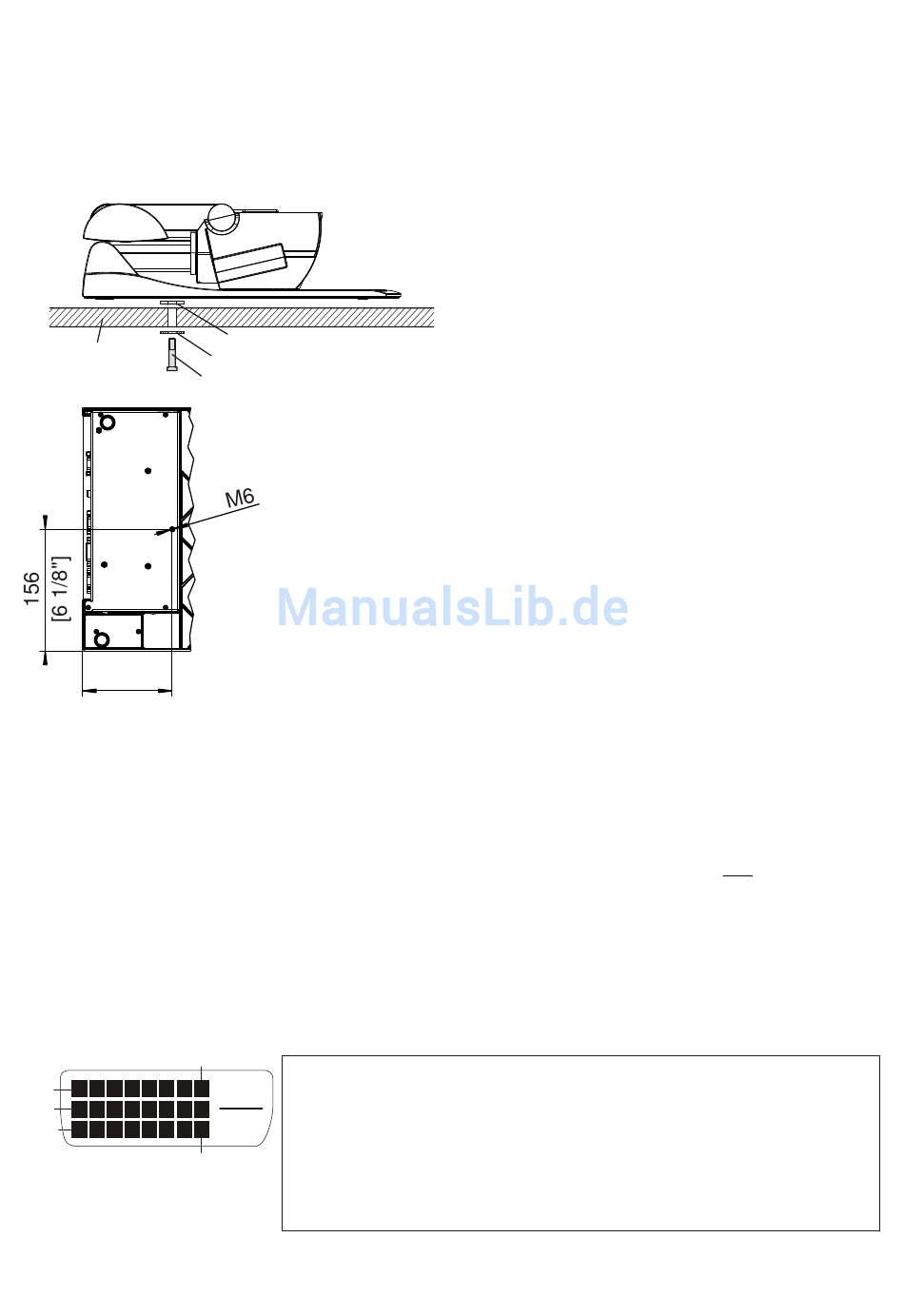

Anti-theft device 2: table lock bolt
table
(sectional view)
115
[4 1/2"]
EXTERNAL INPUT - EXTERN
A computer can be connected to the External RGB input (#15) of the
Visualizer. With the EXTERN switch (#30 or #44) a user can switch between the
Visualizer image and the image of the external input to be displayed to the audience.
The signal from the computer is only looped through the Visualizer and is not processed
in any way. In order to avoid that your projector or monitor adjusts itself when switching, it
is recommended that you set the output of the computer to the same signal format and
vertical frequency as the Visualizer.
Please note that the image from the External RGB input (#15) can be displayed on the RGB output (#17) only.
DVI PORT
Pin 8
Pin 1
Pin 9
Pin 17
Pin 24
security cable T-bar lock (Kensington Lock)
washer 6.4/17x3
washer 6.4/12x1.6
screw M6
The Visualizer can also be fixed onto a table with the
supplied table lock bolt in order to minimize the risk of
theft.
Supplied accessories for anti-theft device (part number):
1 - T.M.D.S. Data2-
2 - T.M.D.S. Data2+
3 - T.M.D.S. Data2/4 Shield
4 - T.M.D.S. Data4- (*)
5 - T.M.D.S. Data4+(*)
6 - DDC Clock
7 - DDC Data
8 - Analog Vertical Sync (**)
Please note that the usable
depth of thread is 8mm, do not
screw in more than this.
The thread to fix the bolt is on the bottom of the unit.
Socket head cap wrench 5mm
Screw DIN
912
, M x35 Zn
6
Screw DIN
912
, M x50 Zn
6
Washer DIN 125A 6.4/12x1.6
Washer DIN 349 6.4/17x3
7
Assembly instructions VZ-8²
9 - T.M.D.S. Data1-
10 - T.M.D.S. Data1+
11 - T.M.D.S. Data1/3 Shield
12 - T.M.D.S. Data3- (*)
13 - T.M.D.S. Data3+ (*)
14 - +5V Power
15 - Ground (return for +5V,
HSync and Vsync)
16 - Hot Plug Detect
10
®
, so that it
(
E 27400
)
( 25260
D
)
( 25270
D
)
(D 13770)
( 13920
D
)
(E 28920)
VZ-8plus² only
17 - T.M.D.S. Data0-
18 - T.M.D.S. Data0+
18 - T.M.D.S. Data0+
19 - T.M.D.S. Data0/5 Shield
20 - T.M.D.S. Data5- (*)
21 - T.M.D.S. Data5+ (*)
22 - T.M.D.S. Clock+
23 - T.M.D.S. Clock-
24 - Analog Vertical Sync (**)
*...not used
**...not available
