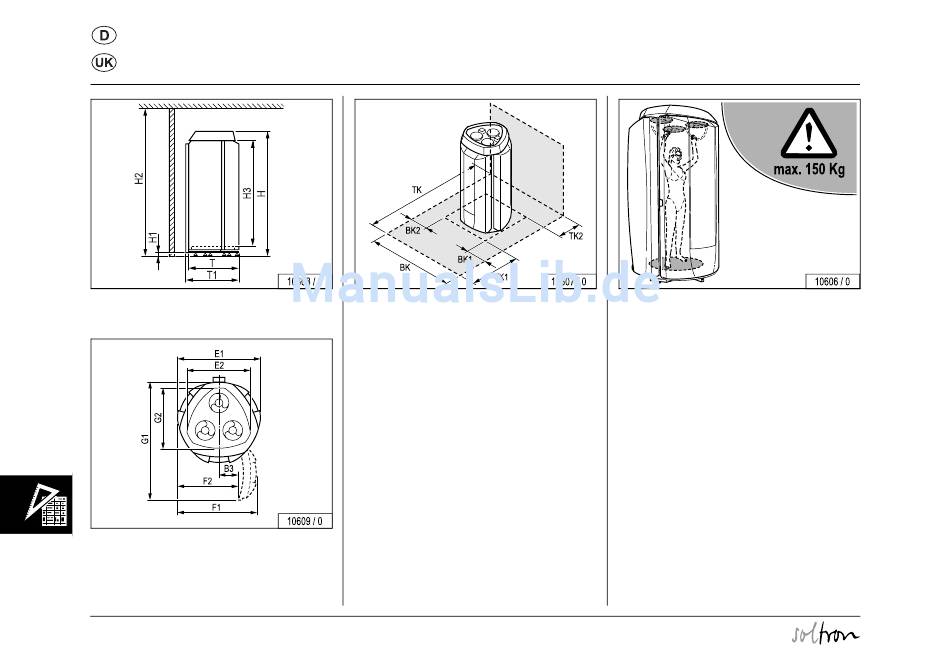

Abmessungen

Dimensions

96
B = 1.392 mm TK = 2.400 mm
B1 = 866 mm TK1 = 880 mm
B4 = 166 mm TK2 = 300 mm
B6 = 864 mm
B8 = 1.367 mm BK = 1.935 mm
T = 1.279 mm BK1 = 500 mm
T1 = 1.380 mm BK2 = 500 mm
T2 = 1.837 mm
T3 = 865 mm
H = 2.341 mm
H1 = 69 mm
H2 = 2.600 mm
H3 = 2.020 mm
