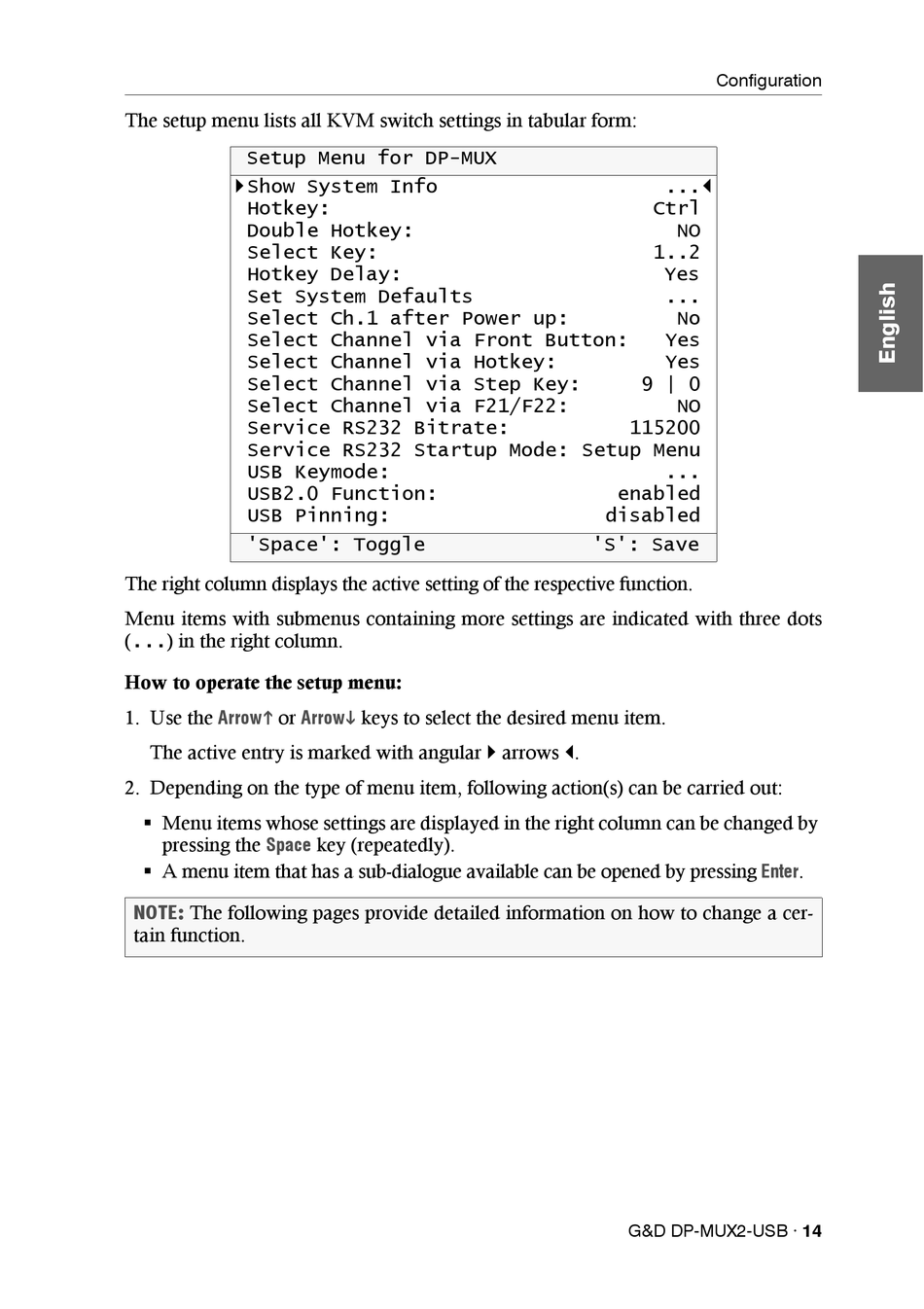

The setup menu lists all KVM switch settings in tabular form:
Setup Menu for DP-MUX
Show System Info
Hotkey:
Double Hotkey:
Select Key:
Hotkey Delay:
Set System Defaults
Select Ch.1 after Power up:
Select Channel via Front Button:
Select Channel via Hotkey:
Select Channel via Step Key:
Select Channel via F21/F22:
Service RS232 Bitrate:
Service RS232 Startup Mode: Setup Menu
USB Keymode:
USB2.0 Function:
USB Pinning:
'Space': Toggle
The right column displays the active setting of the respective function.
Menu items with submenus containing more settings are indicated with three dots
(...) in the right column.
How to operate the setup menu:
1. Use the Arrow or
The active entry is marked with angular  arrows .
2. Depending on the type of menu item, following action(s) can be carried out:
 Menu items whose settings are displayed in the right column can be changed by
pressing the Space
 A menu item that has a sub-dialogue available can be opened by pressing
NOTE: The following pages provide detailed information on how to change a cer-
tain function.
Arrow keys to select the desired menu item.
key (repeatedly).
Configuration
...
Ctrl
NO
1..2
Yes
...
No
Yes
Yes
9 | 0
NO
115200
...
enabled
disabled
'S': Save
Enter
