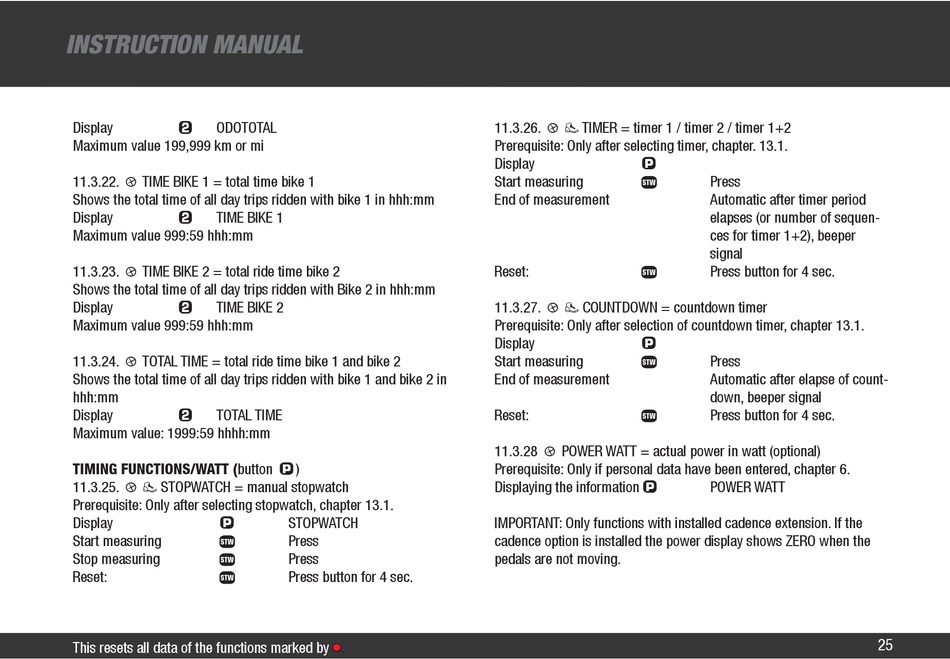

INSTRUCTION MANUAL
Display √ ODOTOTAL
Maximum value 199,999 km or mi
11.3.22. ¬ TIME BIKE 1 = total time bike 1
Shows the total time of all day trips ridden with bike 1 in hhh:mm
Display √ TIME BIKE 1
Maximum value 999:59 hhh:mm
11.3.23. ¬ TIME BIKE 2 = total ride time bike 2
Shows the total time of all day trips ridden with Bike 2 in hhh:mm
Display √ TIME BIKE 2
Maximum value 999:59 hhh:mm
11.3.24. ¬ TOTAL TIME = total ride time bike 1 and bike 2
Shows the total time of all day trips ridden with bike 1 and bike 2 in
hhh:mm
Display √ TOTAL TIME
Maximum value: 1999:59 hhhh:mm
TIMING FUNCTIONS/WATT (button ≈ )
11.3.25. ¬ £ STOPWATCH = manual stopwatch
Prerequisite: Only after selecting stopwatch, chapter 13.1.
Display ≈
Start measuring ∫
Stop measuring ∫
Reset: ∫
This resets all data of the functions marked by
STOPWATCH
Press
Press
Press button for 4 sec.
.
11.3.26. ¬ £ TIMER = timer 1 / timer 2 / timer 1+2
Prerequisite: Only after selecting timer, chapter. 13.1.
Display ≈
Start measuring ∫
End of measurement
Reset: ∫
11.3.27. ¬ £ COUNTDOWN = countdown timer
Prerequisite: Only after selection of countdown timer, chapter 13.1.
Display ≈
Start measuring ∫
End of measurement
Reset: ∫
11.3.28 ¬ POWER WATT = actual power in watt (optional)
Prerequisite: Only if personal data have been entered, chapter 6.
Displaying the information ≈
IMPORTANT: Only functions with installed cadence extension. If the
cadence option is installed the power display shows ZERO when the
pedals are not moving.
Press
Automatic after timer period
elapses (or number of sequen-
ces for timer 1+2), beeper
signal
Press button for 4 sec.
Press
Automatic after elapse of count-
down, beeper signal
Press button for 4 sec.
POWER WATT
25
