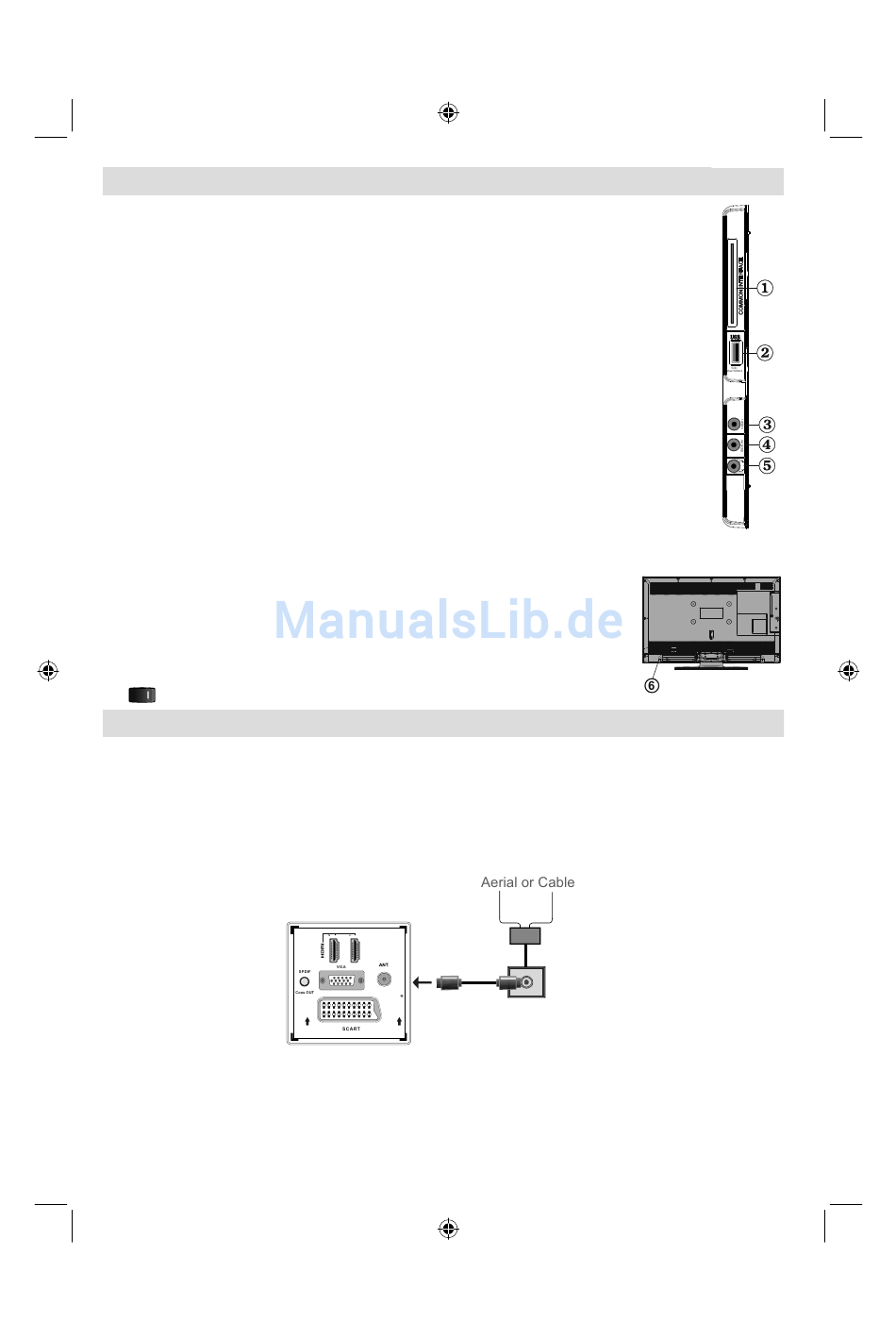

Viewing the Connections - Side Connectors

1. CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you
subscribe to. For more information, see "Conditional Access" section.
2. USB Inputs.
Note that programme recording feature is available via these USB inputs. You can connect
external hard disk drives to this input.
3. Component Video Input (YPbPr)
You can connect the component video and audio sockets with a device that has component
output. To do this, you must use the supplied component video connection cable for
enabling connection. First, plug single jack of the cable to the TV's YPbPr socket (side).
Afterwards, insert your component cable's (not supplied) connectors into the plural part of
the Component video connection cable. Colours of the connected jacks should match.
4. Side audio-video connection
external devices. To make a video connection, you must use the supplied AV connection
cable for enabling connection. First, plug singular jack of the cable to the TV's Side AV
socket. Afterwards, insert your video cable's (not supplied) connector into the YELLOW
input (located on the plural side) of the supplied AV connection cable. Colours of the
connected jacks should match.
To enable audio connection, you must use RED and WHITE inputs of the side AV
connection cable. Afterwards, insert your device's audio cable's connectors into the RED
and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks
should match.
Note: You should use audio inputs of side AV connection cable (RED &
WHITE) to enable sound connection when connecting a device to your TV by
using PC or COMPONENT VIDEO input.
5. Headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones
(optional).
6. , switch is used for turning the TV on or off.

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the
mains. Plug the power cable to the mains socket outlet.

Aerial Connection

• Connect the aerial ,cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
