DEUTSCH

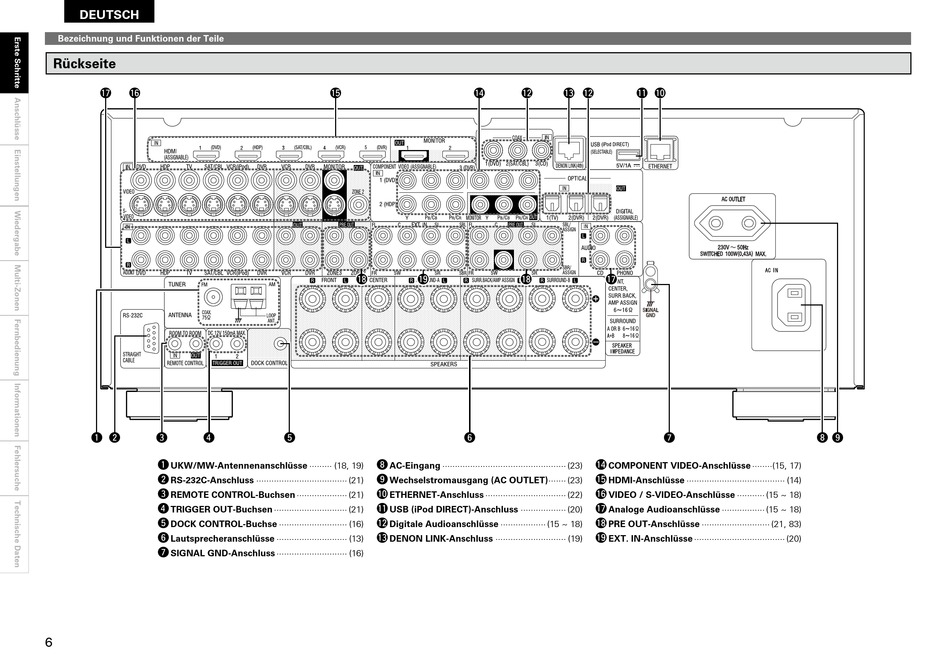

Bezeichnung und Funktionen der Teile
Rückseite
Q7 Q6
q w e r
q
·UKW/MW-Antennenanschlüsse·········· (18,·19)
w
·RS-232C-Anschluss····································· (21)
e
·REMOTE CONTROL-Buchsen····················· (21)
r
·TRIGGER OUT-Buchsen······························ (21)
t
·DOCK CONTROL-Buchse···························· (16)
y
·Lautsprecheranschlüsse····························· (13)
u
·SIGNAL GND-Anschluss····························· (16)

Q5
Q8 Q9
t y
i
·AC-Eingang·················································· (23)
o
·Wechselstromausgang (AC OUTLET)· · ······ (23)
Q0
· ETHERNET-Anschluss································· (22)
Q1
· USB (iPod DIRECT)-Anschluss··················· (20)
Q2
· Digitale Audioanschlüsse··················· (15·~·18)
Q3
· DENON LINK-Anschluss····························· (19)
Q4 Q2 Q3 Q2 Q1
Q8 Q7
Q4
· COMPONENT VIDEO-Anschlüsse·········(15,·17)
Q5
· HDMI-Anschlüsse········································ (14)
Q6
· VIDEO / S-VIDEO-Anschlüsse············ (15·~·18)
Q7
· Analoge Audioanschlüsse·················· (15·~·18)
Q8
· PRE OUT-Anschlüsse···························· (21,·83)
Q9
· EXT. IN-Anschlüsse····································· (20)
Q0
u i o
