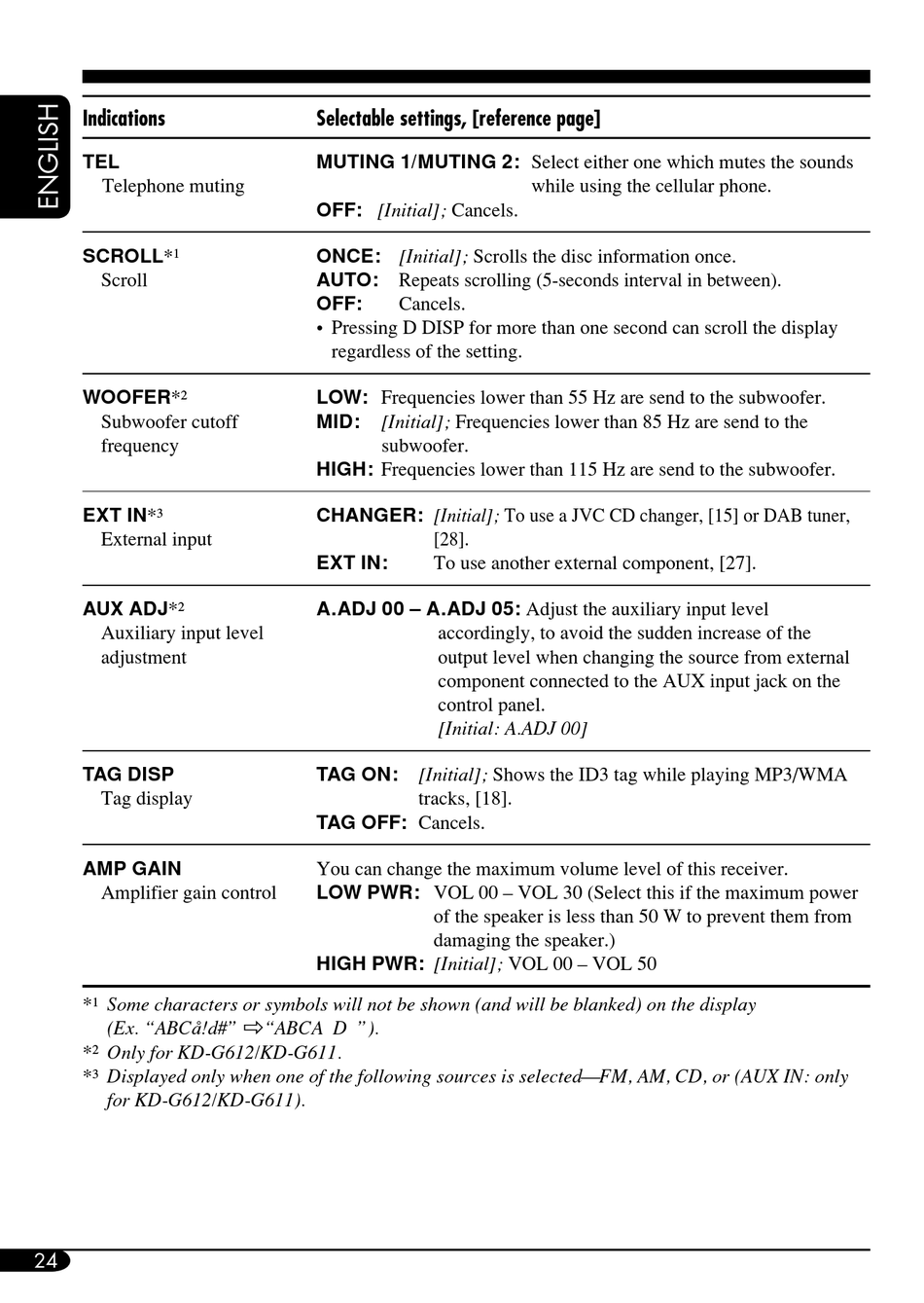

JVC KD-G511 Bedienungsanleitung Seite 24

Indications
TEL
Telephone muting
SCROLL* 1
Scroll
WOOFER*
2
Subwoofer cutoff
frequency
EXT IN*
3
External input
AUX ADJ* 2
Auxiliary input level
adjustment
TAG DISP
Tag display
AMP GAIN
Amplifier gain control
* 1 Some characters or symbols will not be shown (and will be blanked) on the display
(Ex. "ABCå!d#" ]"ABCA D ").
* Only for KD-G612/KD-G611.
2
* 3 Displayed only when one of the following sources is selected—FM, AM, CD, or (AUX IN: only
for KD-G612/KD-G611).
24
Selectable settings, [reference page]
MUTING 1/MUTING 2: Select either one which mutes the sounds
OFF: [Initial]; Cancels.
ONCE: [Initial]; Scrolls the disc information once.
AUTO: Repeats scrolling (5-seconds interval in between).
OFF: Cancels.
• Pressing D DISP for more than one second can scroll the display
regardless of the setting.
LOW: Frequencies lower than 55 Hz are send to the subwoofer.
MID: [Initial]; Frequencies lower than 85 Hz are send to the
subwoofer.
HIGH: Frequencies lower than 115 Hz are send to the subwoofer.
CHANGER: [Initial]; To use a JVC CD changer, [15] or DAB tuner,
[28].
EXT IN:
To use another external component, [27].
A.ADJ 00 – A.ADJ 05: Adjust the auxiliary input level
accordingly, to avoid the sudden increase of the
output level when changing the source from external
component connected to the AUX input jack on the
control panel.
[Initial: A.ADJ 00]
TAG ON: [Initial]; Shows the ID3 tag while playing MP3/WMA
tracks, [18].
TAG OFF: Cancels.
You can change the maximum volume level of this receiver.
LOW PWR: VOL 00 – VOL 30 (Select this if the maximum power
of the speaker is less than 50 W to prevent them from
damaging the speaker.)
HIGH PWR: [Initial]; VOL 00 – VOL 50
while using the cellular phone.
