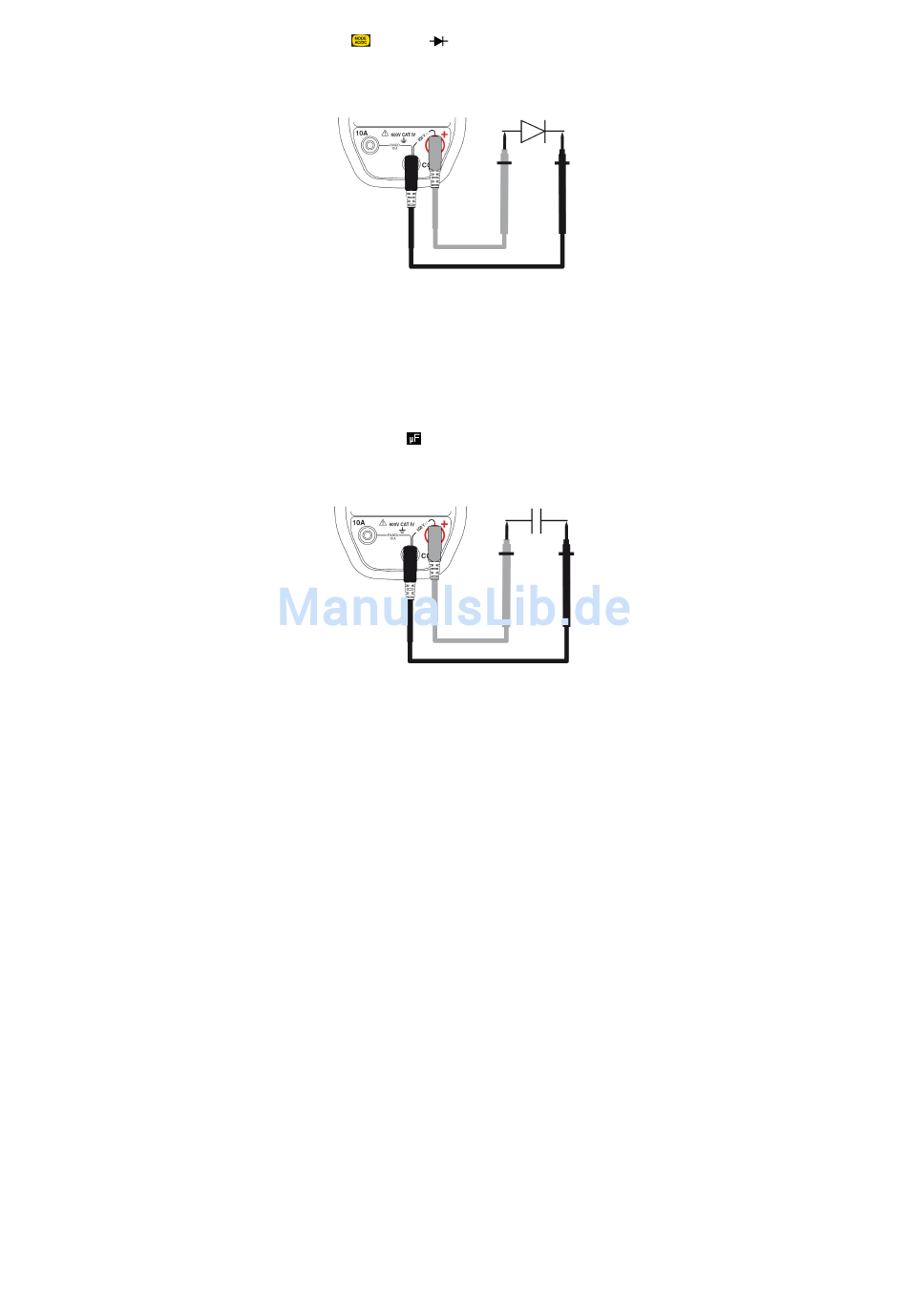

2. Press twice. The symbol is displayed ;
3. Connect the black lead to the COM terminal and the red
lead to "+";
4. Place the contact tips on the terminals of the component;
The voltage across the terminals of the component is displayed
on screen.
3.1.5

Capacitance measurement

Attention : all capacitance measurements must be made in a
power-off condition. Observe the connection polarity (+ to the
red terminal, - to the black terminal)
To measure the capacitance, proceed as follows :
1. Make sure that the capacitor to be measured is
discharged;
2. Set the switch to
;
3. Connect the black lead to the COM terminal and the red
lead to "+";
4.
Place the contact tips on the terminals of the component;
The measured capacitance is displayed on screen.
