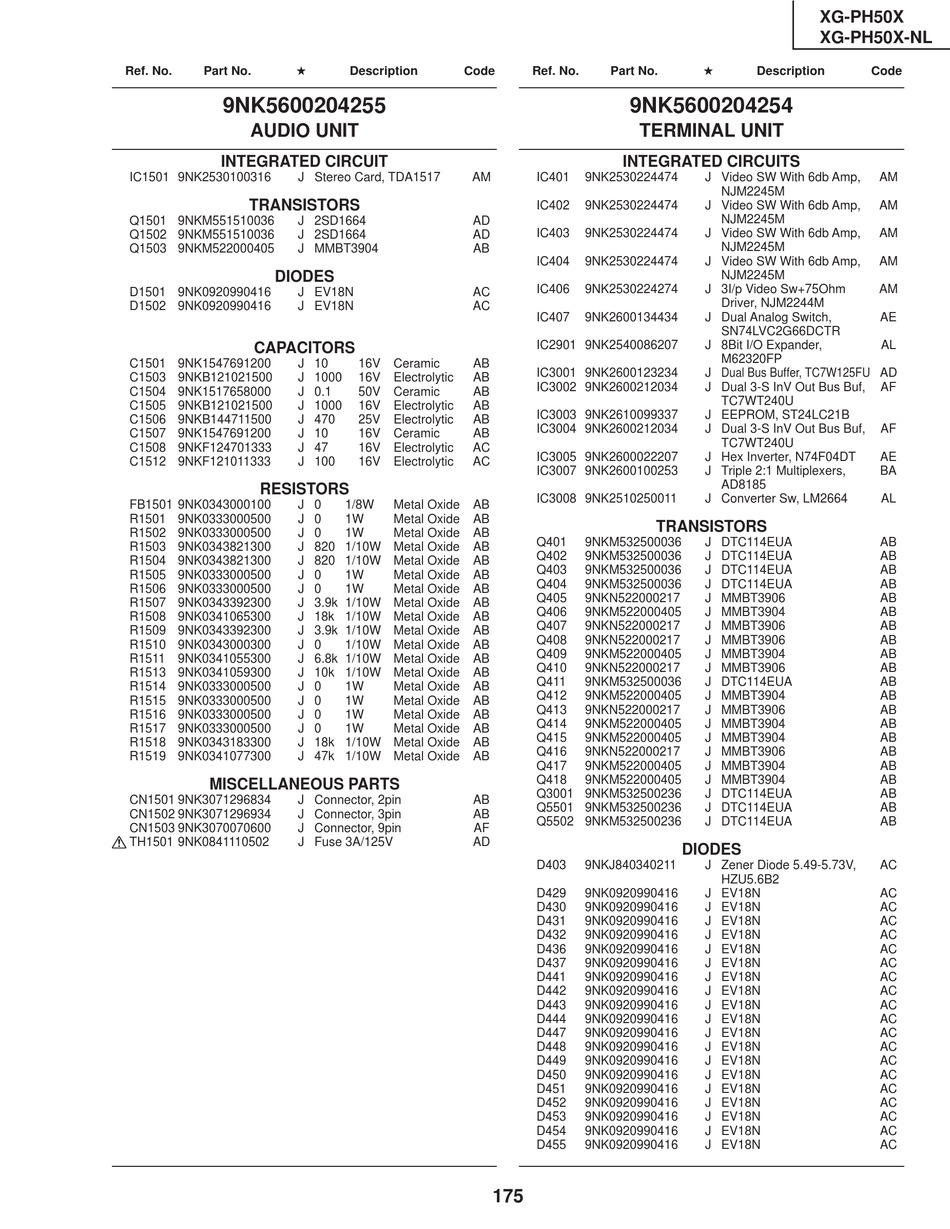

Sharp XG-PH50X Serviceanleitung Seite 175

Ref. No. Part No.
9NK5600204255
AUDIO UNIT
INTEGRATED CIRCUIT
IC1501 9NK2530100316
TRANSISTORS
Q1501 9NKM551510036
Q1502 9NKM551510036
Q1503 9NKM522000405
DIODES
D1501 9NK0920990416
D1502 9NK0920990416
CAPACITORS
C1501 9NK1547691200
C1503 9NKB121021500
C1504 9NK1517658000
C1505 9NKB121021500
C1506 9NKB144711500
C1507 9NK1547691200
C1508 9NKF124701333
C1512 9NKF121011333
RESISTORS
FB1501 9NK0343000100
R1501 9NK0333000500
R1502 9NK0333000500
R1503 9NK0343821300
R1504 9NK0343821300
R1505 9NK0333000500
R1506 9NK0333000500
R1507 9NK0343392300
R1508 9NK0341065300
R1509 9NK0343392300
R1510 9NK0343000300
R1511 9NK0341055300
R1513 9NK0341059300
R1514 9NK0333000500
R1515 9NK0333000500
R1516 9NK0333000500
R1517 9NK0333000500
R1518 9NK0343183300
R1519 9NK0341077300
MISCELLANEOUS PARTS
CN1501 9NK3071296834
CN1502 9NK3071296934
CN1503 9NK3070070600
å TH1501 9NK0841110502
Description Code
J Stereo Card, TDA1517 AM
J 2SD1664 AD
J 2SD1664 AD
J MMBT3904 AB
J EV18N AC
J EV18N AC
J 10 16V Ceramic AB
J 1000 16V Electrolytic AB
J 0.1 50V Ceramic AB
J 1000 16V Electrolytic AB
J 470 25V Electrolytic AB
J 10 16V Ceramic AB
J 47 16V Electrolytic AC
J 100 16V Electrolytic AC
J 0 1/8W Metal Oxide AB
J 0 1W Metal Oxide AB
J 0 1W Metal Oxide AB
J 820 1/10W Metal Oxide AB
J 820 1/10W Metal Oxide AB
J 0 1W Metal Oxide AB
J 0 1W Metal Oxide AB
J 3.9k 1/10W Metal Oxide AB
J 18k 1/10W Metal Oxide AB
J 3.9k 1/10W Metal Oxide AB
J 0 1/10W Metal Oxide AB
J 6.8k 1/10W Metal Oxide AB
J 10k 1/10W Metal Oxide AB
J 0 1W Metal Oxide AB
J 0 1W Metal Oxide AB
J 0 1W Metal Oxide AB
J 0 1W Metal Oxide AB
J 18k 1/10W Metal Oxide AB
J 47k 1/10W Metal Oxide AB
J Connector, 2pin AB
J Connector, 3pin AB
J Connector, 9pin AF
J Fuse 3A/125V AD
Ref. No. Part No.
9NK5600204254
TERMINAL UNIT
INTEGRATED CIRCUITS
IC401 9NK2530224474
IC402 9NK2530224474
IC403 9NK2530224474
IC404 9NK2530224474
IC406 9NK2530224274
IC407 9NK2600134434
IC2901 9NK2540086207
IC3001 9NK2600123234
IC3002 9NK2600212034
IC3003 9NK2610099337
IC3004 9NK2600212034
IC3005 9NK2600022207
IC3007 9NK2600100253
IC3008 9NK2510250011
TRANSISTORS
Q401 9NKM532500036
Q402 9NKM532500036
Q403 9NKM532500036
Q404 9NKM532500036
Q405 9NKN522000217
Q406 9NKM522000405
Q407 9NKN522000217
Q408 9NKN522000217
Q409 9NKM522000405
Q410 9NKN522000217
Q411 9NKM532500036
Q412 9NKM522000405
Q413 9NKN522000217
Q414 9NKM522000405
Q415 9NKM522000405
Q416 9NKN522000217
Q417 9NKM522000405
Q418 9NKM522000405
Q3001 9NKM532500236
Q5501 9NKM532500236
Q5502 9NKM532500236
D403 9NKJ840340211
D429 9NK0920990416
D430 9NK0920990416
D431 9NK0920990416
D432 9NK0920990416
D436 9NK0920990416
D437 9NK0920990416
D441 9NK0920990416
D442 9NK0920990416
D443 9NK0920990416
D444 9NK0920990416
D447 9NK0920990416
D448 9NK0920990416
D449 9NK0920990416
D450 9NK0920990416
D451 9NK0920990416
D452 9NK0920990416
D453 9NK0920990416
D454 9NK0920990416
D455 9NK0920990416
175
XG-PH50X
XG-PH50X-NL
Description
J Video SW With 6db Amp,
NJM2245M
J Video SW With 6db Amp,
NJM2245M
J Video SW With 6db Amp,
NJM2245M
J Video SW With 6db Amp,
NJM2245M
J 3I/p Video Sw+75Ohm
Driver, NJM2244M
J Dual Analog Switch,
SN74LVC2G66DCTR
J 8Bit I/O Expander,
M62320FP
J Dual Bus Buffer, TC7W125FU AD
J Dual 3-S InV Out Bus Buf,
TC7WT240U
J EEPROM, ST24LC21B
J Dual 3-S InV Out Bus Buf,
TC7WT240U
J Hex Inverter, N74F04DT
J Triple 2:1 Multiplexers,
AD8185
J Converter Sw, LM2664
J DTC114EUA
J DTC114EUA
J DTC114EUA
J DTC114EUA
J MMBT3906
J MMBT3904
J MMBT3906
J MMBT3906
J MMBT3904
J MMBT3906
J DTC114EUA
J MMBT3904
J MMBT3906
J MMBT3904
J MMBT3904
J MMBT3906
J MMBT3904
J MMBT3904
J DTC114EUA
J DTC114EUA
J DTC114EUA
DIODES
J Zener Diode 5.49-5.73V,
HZU5.6B2
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
J EV18N
Code
AM
AM
AM
AM
AM
AE
AL
AF
AF
AE
BA
AL
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AB
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
AC
