Constant pump operation
Using this function, the selected
pump is constantly working.
1 Press the button with the arrow
until the Menu symbol flashes.
Press +/On.
SERVICE
With this function you can see
certain values* from the heater in
the display. Updating of the values
occurs once a second.
1 Press the button with the arrow
until the Menu symbol flashes.
Press +/On.
*The values shown under Service are:
FA (revolutions): the speed of the fan divided by 2
RH (temp): the temperature within the vehicle
SH (temp): the warm water temperature
AH (temp): (non-activated function).
HE (temp): operating temperature
OH: if overheating protection has been triggered, On or
alternatively Off

18. Fault messages

When a fault occurs in the system, the reason is displayed.
lOW BAT : If the vehicle has battery voltage of less than 10.5V, the heater stops. The heater will be reset
automatically when the voltage comes up to 11V.
BATT IN: Low battery voltage in the panel.
FA: Faulty fan speed. Automatic resetting after 5 minutes.
GAS OUT: : Gas empty. Resetting by switching off and restarting the boiler in accordance with item 1.
OHEAT 1: The overheating protection has tripped. To reset, disconnect 12V from the boiler and reconnect.
OHEAT 2: The thermostat has tripped. To reset, disconnect 12V from the boiler and reconnect.
SENSOR: Fault in the temperature sensors. To reset, disconnect 12V from the boiler and reconnect.
WINDO: Window open, the boiler stops due to gas. Gas operation in the boiler starts when the windows closed.
Electrical operation works. Check in the vehicle instructions whether this function is installed.
SERIAl: There is a connection fault between the boiler and the panel. Normally, it is a mechanical fault in the
connection between the heater and the panel. To reset, switch off the main current and then start it again.
19. Emergency start
• Disconnect the 12V and the cable to the panel on the heater
• Connect a cable between 2 and 9 in the contact device (in the heater)
• Connect 12V to the heater
The heater now starts with gas and 1kW (regulation of room temperature does not work, constant pump
operation).

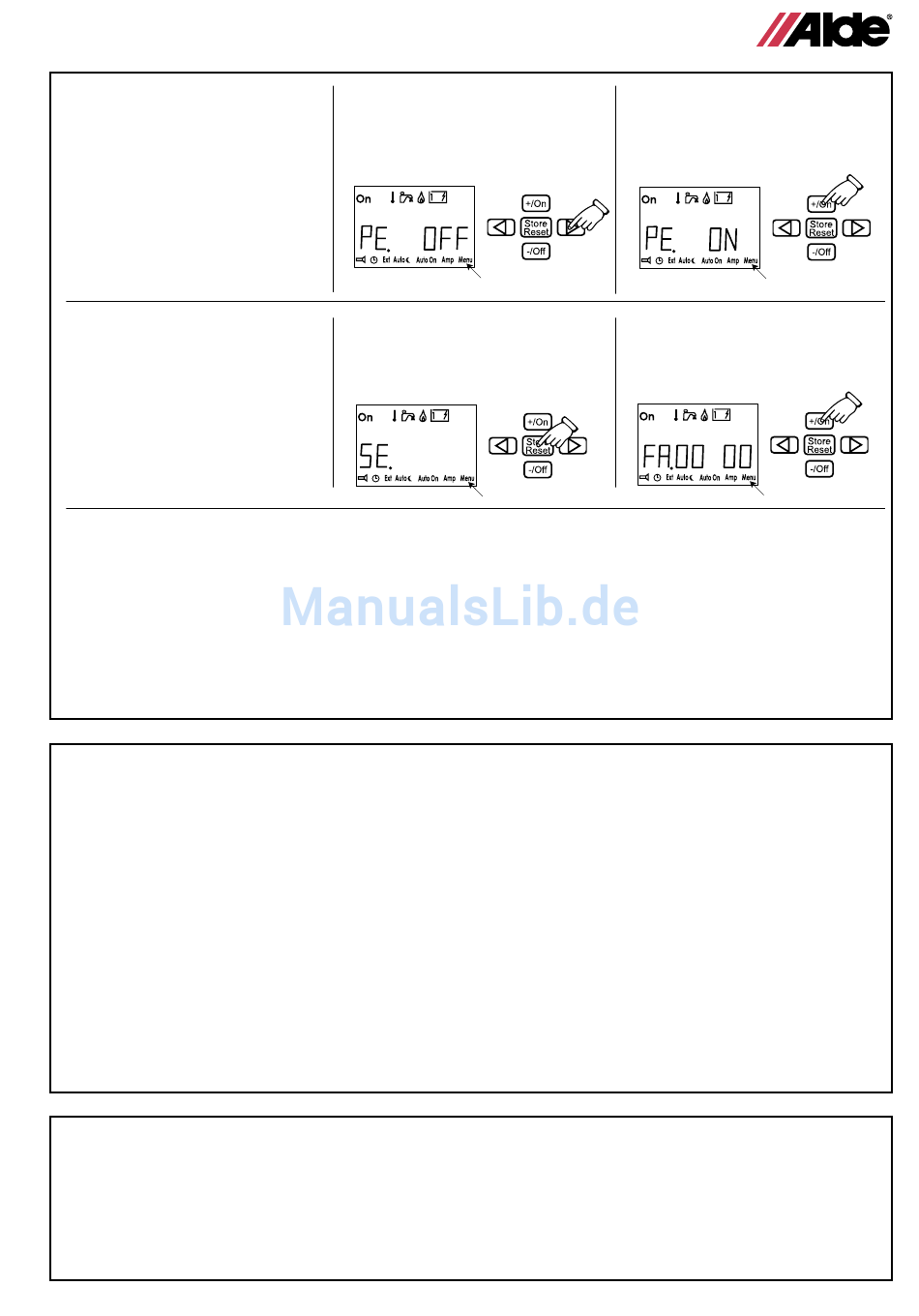

2 When OF is displayed, step
with the arrow key until PE is
displayed. Press +/On and the
constant pump operation will be
connected.
blinkar
flashes
2 When OF is displayed, step
with the arrow key until SE is
displayed. Press +/On or -/Off to
see the various values.
blinkar
flashes
HS (X): software version in heater
PS (X): software version on the panel
I: AMP
WI: window breaker on-off
ES: external start on-off
10-RS: heater information, only for ALDE
GB
3 Press -/Off to disconnect the
constant pump operation. Then
press Store to leave the pump
operation function.
blinkar
flashes
3 To leave Service, press Store.
blinkar
flashes
11
