Back Panel Connections - T+A Elektroakustik POWER PLANT balanced Betriebsanleitung

A1 / PH
GND
Ground terminal
A2 / TV
A3 / TUNER
DISC / MUSIC PLAYER
RECORD
PRE OUT
BALANCED 1
(DISC / MUSIC PLAYER)
BALANCED 2
A2 / TV or A3 / TUNER)
(
30

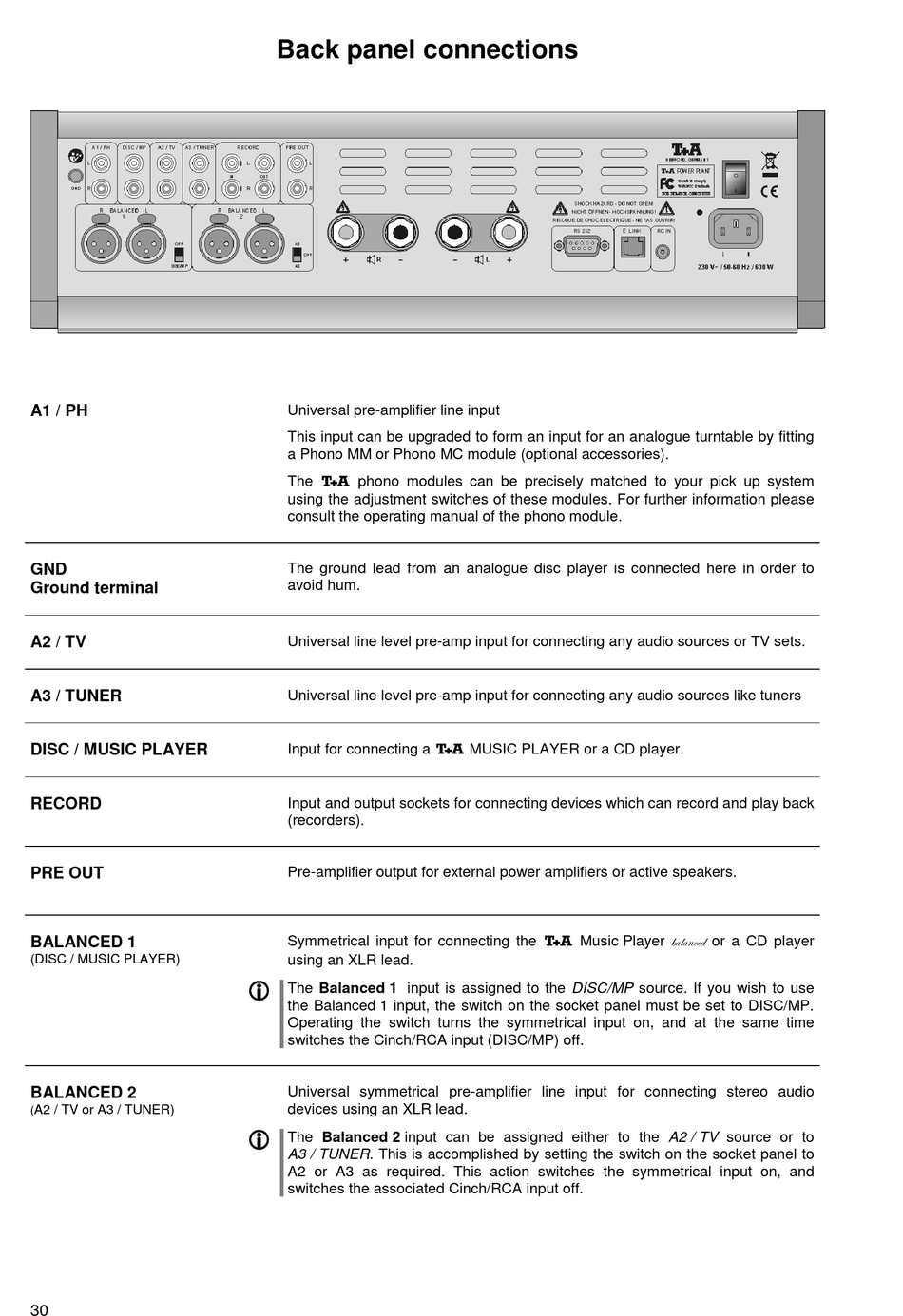

Back panel connections

Universal pre-amplifier line input
This input can be upgraded to form an input for an analogue turntable by fitting
a Phono MM or Phono MC module (optional accessories).
The  phono modules can be precisely matched to your pick up system
using the adjustment switches of these modules. For further information please
consult the operating manual of the phono module.
The ground lead from an analogue disc player is connected here in order to
avoid hum.
Universal line level pre-amp input for connecting any audio sources or TV sets.
Universal line level pre-amp input for connecting any audio sources like tuners
Input for connecting a  MUSIC PLAYER or a CD player.
Input and output sockets for connecting devices which can record and play back
(recorders).
Pre-amplifier output for external power amplifiers or active speakers.
Symmetrical input for connecting the  Music Player utÄtÇvxw or a CD player
using an XLR lead.
The Balanced 1 input is assigned to the DISC/MP source. If you wish to use
   
the Balanced 1 input, the switch on the socket panel must be set to DISC/MP.
Operating the switch turns the symmetrical input on, and at the same time
switches the Cinch/RCA input (DISC/MP) off.
Universal symmetrical pre-amplifier line input for connecting stereo audio
devices using an XLR lead.
The Balanced 2 input can be assigned either to the A2 / TV source or to
 
 
A3 / TUNER. This is accomplished by setting the switch on the socket panel to
A2 or A3 as required. This action switches the symmetrical input on, and
switches the associated Cinch/RCA input off.
