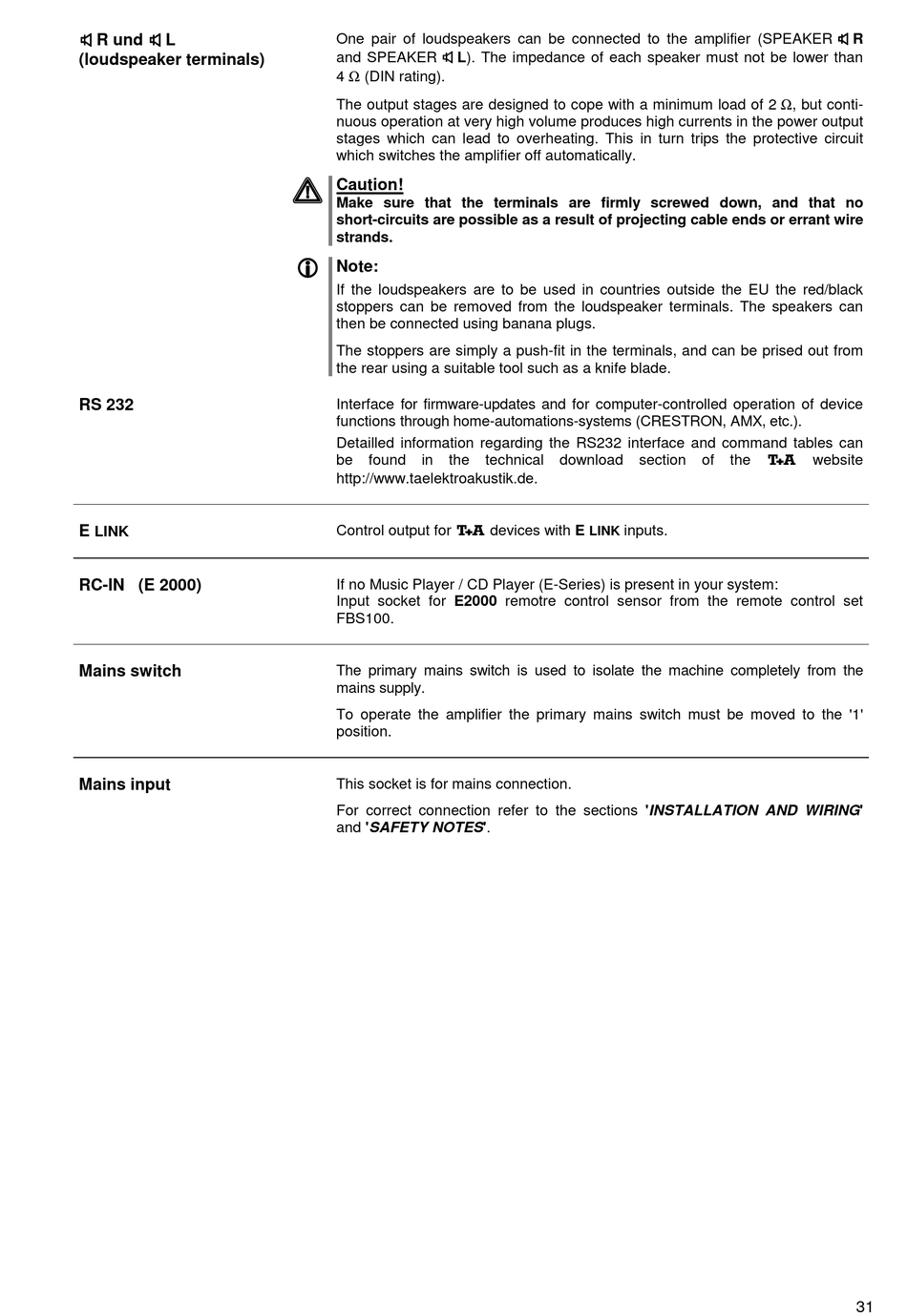

Mains Switch; Mains Input - T+A Elektroakustik POWER PLANT balanced Betriebsanleitung

    R und     L
(loudspeaker terminals)
RS 232   
E
LINK
   
RC-IN (E 2000)   

Mains switch

Mains input


One pair of loudspeakers can be connected to the amplifier (SPEAKER     R
and SPEAKER     L). The impedance of each speaker must not be lower than
4 Ω (DIN rating).
The output stages are designed to cope with a minimum load of 2 Ω, but conti-
nuous operation at very high volume produces high currents in the power output
stages which can lead to overheating. This in turn trips the protective circuit
which switches the amplifier off automatically.
Caution!
 
 
Make sure that the terminals are firmly screwed down, and that no
short-circuits are possible as a result of projecting cable ends or errant wire
strands.
Note:
       
If the loudspeakers are to be used in countries outside the EU the red/black
stoppers can be removed from the loudspeaker terminals. The speakers can
then be connected using banana plugs.
The stoppers are simply a push-fit in the terminals, and can be prised out from
the rear using a suitable tool such as a knife blade.
Interface for firmware-updates and for computer-controlled operation of device
functions through home-automations-systems (CRESTRON, AMX, etc.).
Detailled information regarding the RS232 interface and command tables can
be found in the
http://www.taelektroakustik.de.
Control output for  devices with E
If no Music Player / CD Player (E-Series) is present in your system:
Input socket for E2000 remotre control sensor from the remote control set
FBS100.
The primary mains switch is used to isolate the machine completely from the
mains supply.
To operate the amplifier the primary mains switch must be moved to the '1'
position.
This socket is for mains connection.
For correct connection refer to the sections 'INSTALLATION AND WIRING'
and 'SAFETY NOTES'.
