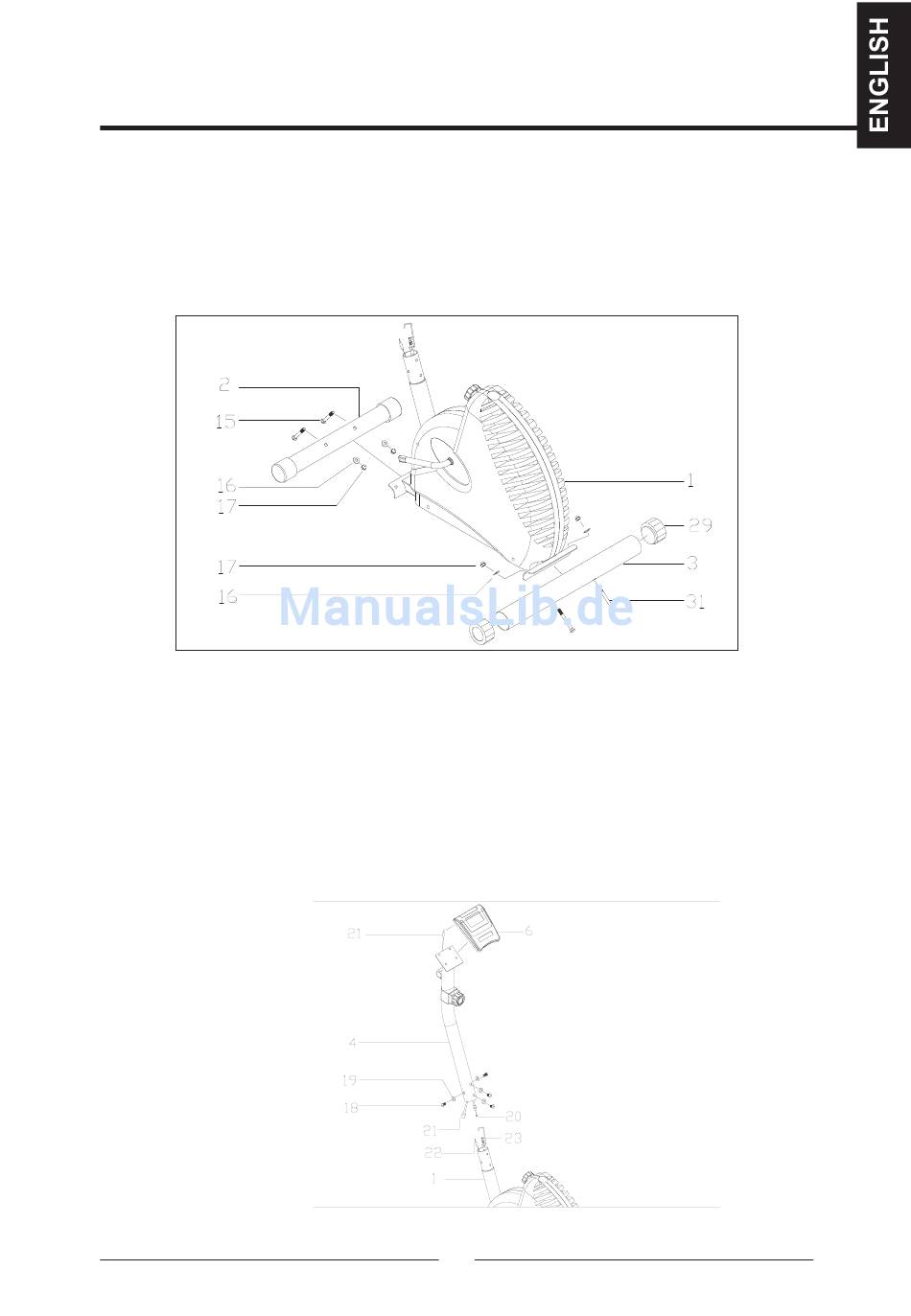

5. ASSeMBLY STePS

STeP 1
Attach the Front Stabilizers () to the Main Frame (1),tighten  sets of M10*50mm
Carriage Bolt (15) Φ25 Curve Washer (16) and M10 Domed Nut (17).
Then, attach the Rear Stabilizer (3) to the Main Frame (1), tighten  sets of
M10*75mm Carriage Bolt (31) Φ25 Curve Washer (16) and M10 Domed Nut
(17).
STeP 2
Take the Front Post () and join the Middle Computer Wire (1) with Lower
Computer Wire (). Release the Tension Knob + Upper Tension Cable (0) from
the Front Post () and connect the Lower Tension Cable (3). Tighten with 3 sets
of M8*15Hex Bolt (18) and Φ22 Curve Washer (19).
Attention to let the Middle Compute Wire(1) comes out from the rear gap, then
connect the Upper Computer Wire (3). Then Slide the Computer (6) onto the
computer holder of Front Post ().
9
