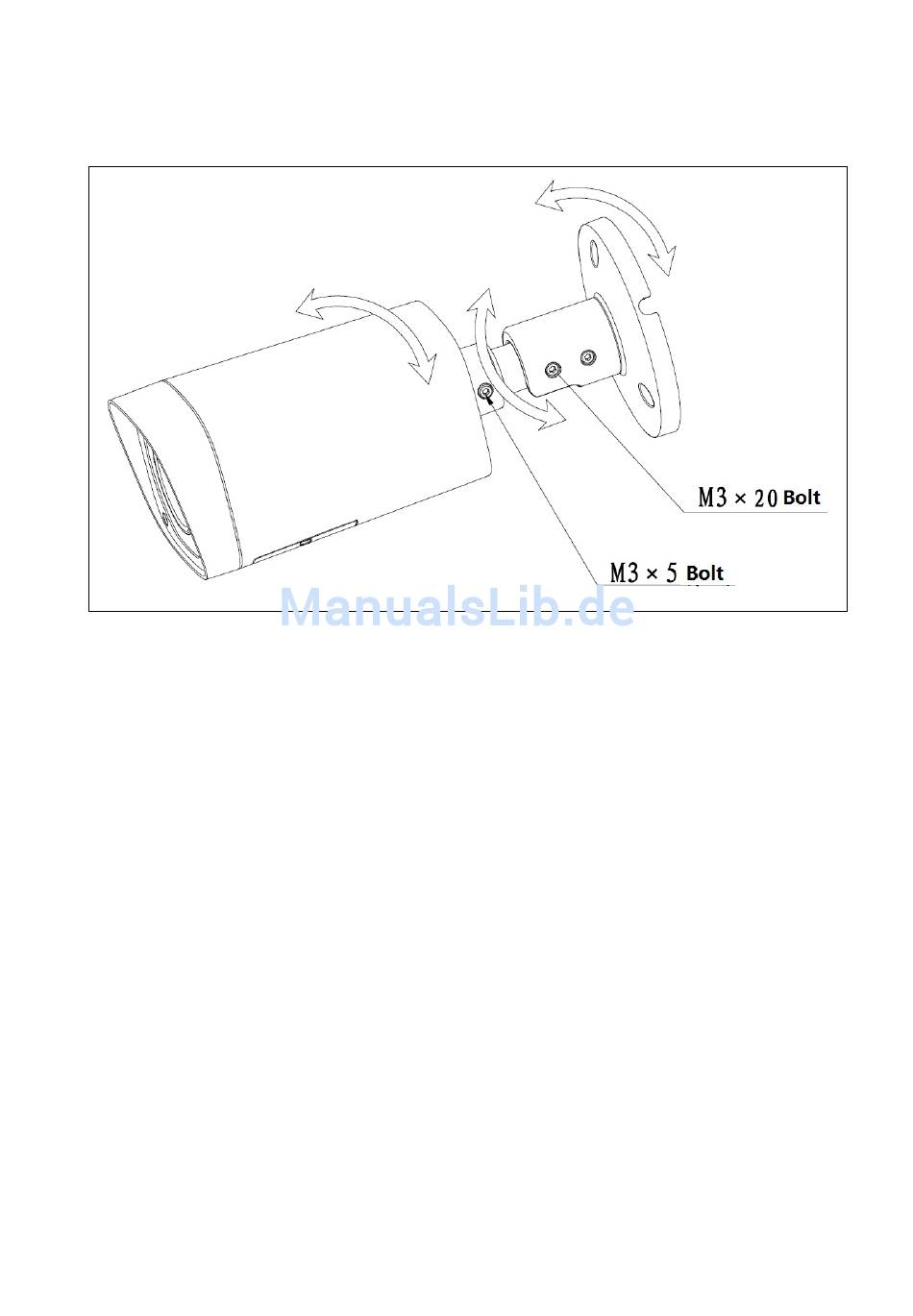

Step 2: Unscrew the M3 x 20 and M3 x 5 screws on the bracket in the direction, adjust
the camera to an exact location which needs to be monitored by rotating the bracket
and camera body, then secure the bolts.
Step 3: Connect the video output port of the device cable to the HDCVI DVR, and
connect the power port of the device cable to the power.
Step 4: After the image is shown on the HDCVI DVR, control the interface by HDCVI
series DVR PTZ, adjust lens zoom by using coaxial control, and the camera will auto
focus to the best position which makes the image clear. So far the camera installation is
completed.
