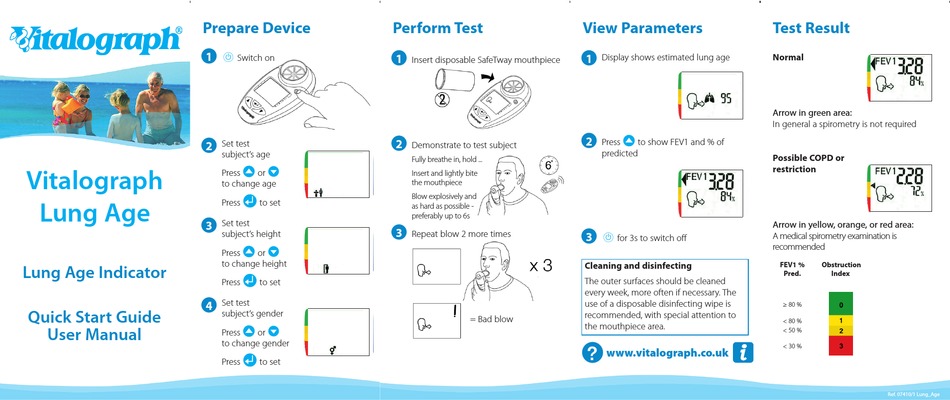

Vitalograph
Lung Age
Lung Age Indicator
Quick Start Guide
User Manual
Prepare Device
1
d
Switch on
2
Set test
subject's age
p
o
Press
or
to change age
n
Press
to set
3
Set test
subject's height
p
o
Press
or
to change height
n
Press
to set
Set test
4
subject's gender
p
o
Press
or
to change gender
n
Press
to set
Perform Test
1
Insert disposable SafeTway mouthpiece
2
Demonstrate to test subject
Fully breathe in, hold ...
Insert and lightly bite
the mouthpiece
Blow explosively and
as hard as possible -
preferably up to 6s
3
Repeat blow 2 more times
= Bad blow
View Parameters
1
Display shows estimated lung age
2
p
Press
to show FEV1 and % of
predicted
3
d
for 3s to switch off
Cleaning and disinfecting
The outer surfaces should be cleaned
every week, more often if necessary. The
use of a disposable disinfecting wipe is
recommended, with special attention to
the mouthpiece area.
?
www.vitalograph.co.uk
Test Result
Normal
Arrow in green area:
In general a spirometry is not required
Possible COPD or
restriction
Arrow in yellow, orange, or red area:
A medical spirometry examination is
recommended
FEV1 %
Obstruction
Pred.
Index
≥ 80 %
< 80 %
< 50 %
< 30 %
Ref. 07410/1 Lung_Age
