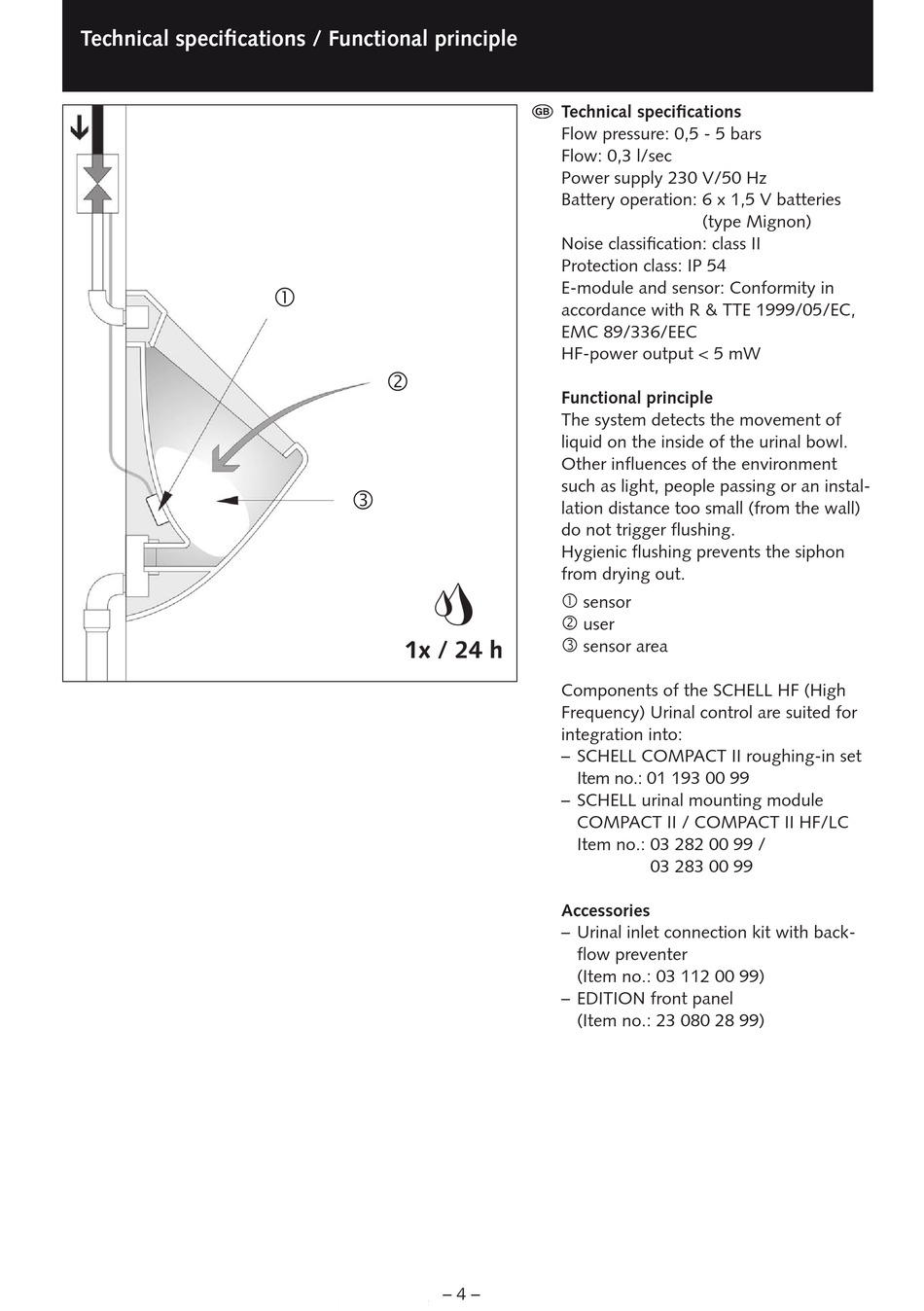

Technical specifications / Functional principle
Technical specifications
GB
Flow pressure: 0,5 - 5 bars
Flow: 0,3 l/sec
Power supply 230 V/50 Hz
Battery operation: 6 x 1,5 V batteries
Noise classification: class II
Protection class: IP 54
E-module and sensor: Conformity in
accordance with R & TTE 1999/05/EC,
EMC 89/336/EEC
HF-power output < 5 mW
Functional principle
The system detects the movement of
liquid on the inside of the urinal bowl.
Other influences of the environment
such as light, people passing or an instal-
lation distance too small (from the wall)
do not trigger flushing.
Hygienic flushing prevents the siphon
from drying out.
sensor
‚
user
sensor area
Components of the SCHELL HF (High
Frequency) Urinal control are suited for
integration into:
– SCHELL COMPACT II roughing-in set
Item no.: 01 193 00 99
– SCHELL urinal mounting module
COMPACT II / COMPACT II HF/LC
Item no.: 03 282 00 99 /
Accessories
– Urinal inlet connection kit with back-
flow preventer
(Item no.: 03 112 00 99)
– EDITION front panel
(Item no.: 23 080 28 99)
– 4 –
(type Mignon)
03 283 00 99
