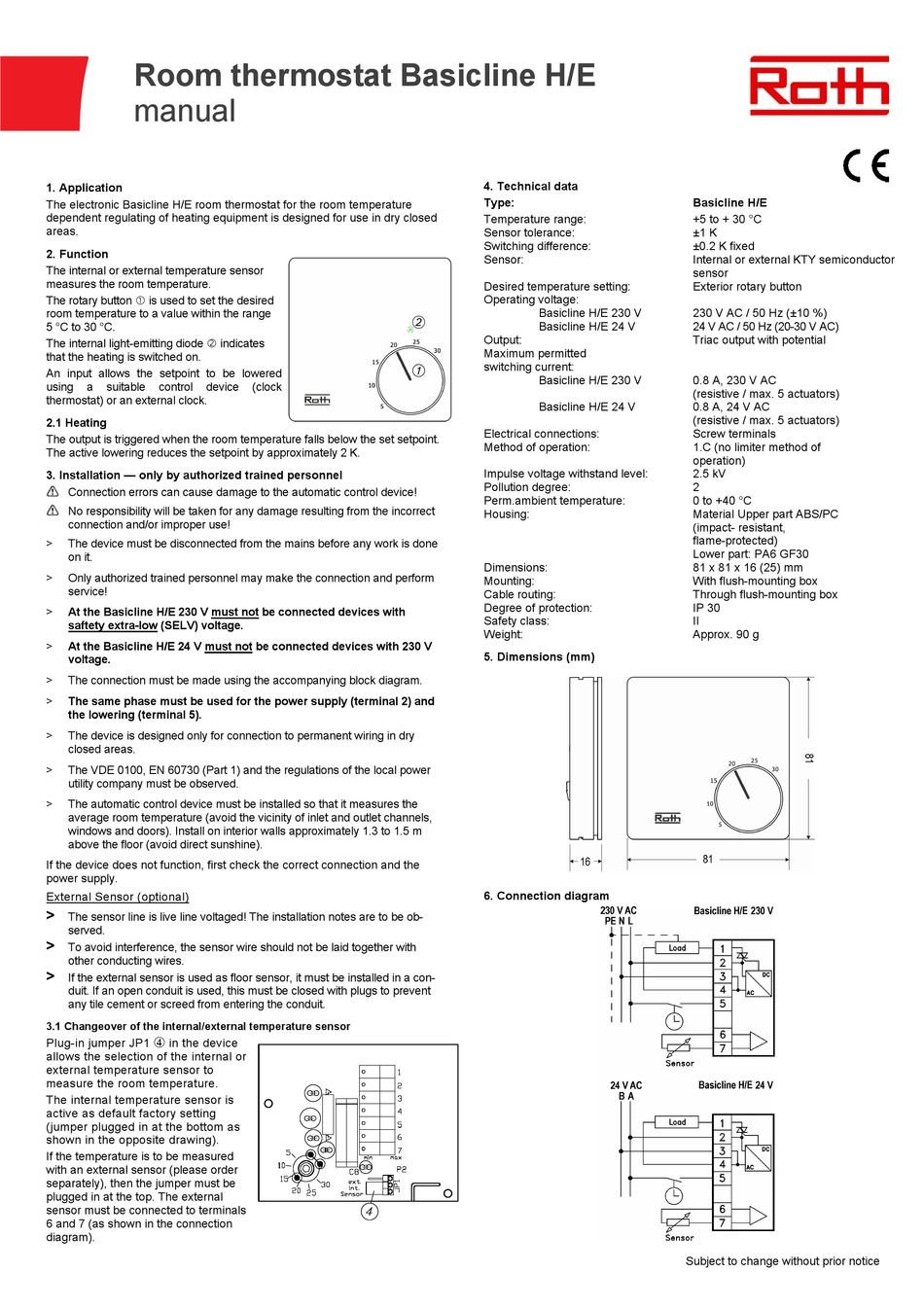

Room thermostat Basicline H/E
manual
1. Application
The electronic Basicline H/E room thermostat for the room temperature
dependent regulating of heating equipment is designed for use in dry closed
areas.
2. Function
The internal or external temperature sensor
measures the room temperature.
The rotary button • is used to set the desired
room temperature to a value within the range
5 °C to 30 °C.
The internal light-emitting diode ‚ indicates
that the heating is switched on.
An input allows the setpoint to be lowered
using
a
suitable
control
device
thermostat) or an external clock.
2.1 Heating
The output is triggered when the room temperature falls below the set setpoint.
The active lowering reduces the setpoint by approximately 2 K.
3. Installation — only by authorized trained personnel
Connection errors can cause damage to the automatic control device!
No responsibility will be taken for any damage resulting from the incorrect
connection and/or improper use!
>
The device must be disconnected from the mains before any work is done
on it.
>
Only authorized trained personnel may make the connection and perform
service!
>
At the Basicline H/E 230 V must not be connected devices with
saftety extra-low (SELV) voltage.
>
At the Basicline H/E 24 V must not be connected devices with 230 V
voltage.
>
The connection must be made using the accompanying block diagram.
>
The same phase must be used for the power supply (terminal 2) and
the lowering (terminal 5).
>
The device is designed only for connection to permanent wiring in dry
closed areas.
>
The VDE 0100, EN 60730 (Part 1) and the regulations of the local power
utility company must be observed.
>
The automatic control device must be installed so that it measures the
average room temperature (avoid the vicinity of inlet and outlet channels,
windows and doors). Install on interior walls approximately 1.3 to 1.5 m
above the floor (avoid direct sunshine).
If the device does not function, first check the correct connection and the
power supply.
External Sensor (optional)
>
The sensor line is live line voltaged! The installation notes are to be ob-
served.
>
To avoid interference, the sensor wire should not be laid together with
other conducting wires.
>
If the external sensor is used as floor sensor, it must be installed in a con-
duit. If an open conduit is used, this must be closed with plugs to prevent
any tile cement or screed from entering the conduit.
3.1 Changeover of the internal/external temperature sensor
Plug-in jumper JP1
Ã
in the device
allows the selection of the internal or
external temperature sensor to
measure the room temperature.
The internal temperature sensor is
active as default factory setting
(jumper plugged in at the bottom as
shown in the opposite drawing).
If the temperature is to be measured
with an external sensor (please order
separately), then the jumper must be
plugged in at the top. The external
sensor must be connected to terminals
6 and 7 (as shown in the connection
diagram).
(clock
4. Technical data
Type:
Temperature range:
Sensor tolerance:
Switching difference:
Sensor:
Desired temperature setting:
Operating voltage:
Basicline H/E 230 V
Basicline H/E 24 V
Output:
Maximum permitted
switching current:
Basicline H/E 230 V
Basicline H/E 24 V
Electrical connections:
Method of operation:
Impulse voltage withstand level:
Pollution degree:
Perm.ambient temperature:
Housing:
Dimensions:
Mounting:
Cable routing:
Degree of protection:
Safety class:
Weight:
5. Dimensions (mm)
6. Connection diagram
Basicline H/E
+5 to + 30 °C
±1 K
±0.2 K fixed
Internal or external KTY semiconductor
sensor
Exterior rotary button
230 V AC / 50 Hz (±10 %)
24 V AC / 50 Hz (20-30 V AC)
Triac output with potential
0.8 A, 230 V AC
(resistive / max. 5 actuators)
0.8 A, 24 V AC
(resistive / max. 5 actuators)
Screw terminals
1.C (no limiter method of
operation)
2.5 kV
2
0 to +40 °C
Material Upper part ABS/PC
(impact- resistant,
flame-protected)
Lower part: PA6 GF30
81 x 81 x 16 (25) mm
With flush-mounting box
Through flush-mounting box
IP 30
II
Approx. 90 g
Subject to change without prior notice
